Scorpion SII-4025-330KVNew

[SII-4025-330]

Price: $149.99

In stock

Optional accessories: Motor Mounts

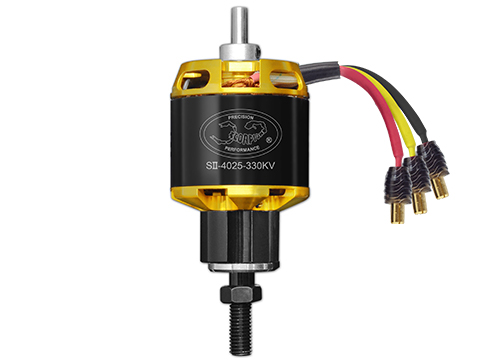

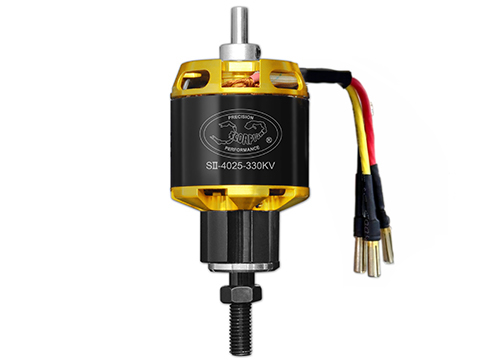

Scorpion SII-4025-330KV

Specifications

Stator Diameter 40.0 mm (1.575 in)
Stator Thickness 25.0 mm (0.954 in)
No. of Stator Arms 12
Magnet Poles 14
Motor Wind 17 Turn Delta
Motor Wire 17-Strand 0.25mm
Motor Kv 330 RPM / Volt
No-Load Current (Io) @ 10 v 0.74 Amps
Motor Resistance (Rm) 0.037 Ohms
Max Continuous Current 75 Amps
Max Continuous Power 2000 Watts
Weight 353 Grams (11.96 oz)
Outside Diameter 48.9 mm (1.925 in)
Shaft Diameter 5.98 mm (0.235 in)
Body Length 54.1 mm (2.129 in)
Overall Shaft Length 85 mm (3.346 in)
Max Lipo Cell 8s
Motor Timing 5deg
Drive Frequency 8kHz

Weight including packaging

735g

Data Chart

View Scorpion SII-4025-330KV Data Chart

Full Dimension

View Scorpion SII-4025-330KV Full Dimension
