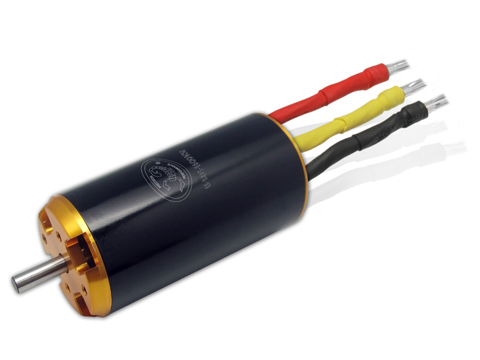

Scorpion IS-3435-1800KV Motor

[is_3435_1800]

Price: $139.99

In stock

Specifications

Stator Diameter 34 mm (1.34 in)
Stator Thickness 35 mm (1.38 in)
No. of Stator Arms 12
Magnet Poles 4
Motor Wind 1.5 Turn Wye
Motor Wire 2 Strand 1.35mm
Motor Kv 1800 RPM / Volt
No-Load Current (Io) 1.4 Amps @ 8 volts
Motor Resistance (Rm) 0.117 Ohms
Max Continuous Current 91 Amps
Max Continuous Power 2000 Watts
Weight 290 Grams (10.23 oz)
Outside Diameter 36 mm (1.42 in)
Shaft Diameter 5.00 mm (0.197 in)
Body Length 81 mm (3.19 in)
Overall Shaft Length 97 mm (3.82 in)
Max Lipo Cell 6s
Motor Timing 5-15deg
Drive Frequency 8kHz
Max RPM 42000 RPM

Weight including packaging

560g

Full Dimension

View Scorpion IS-3435-1800KV Motor Full Dimension
