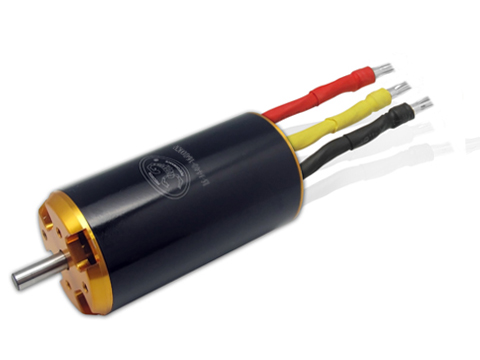

Scorpion IS-3440-1600KV Motor

[is_3440_1600]

Price: $142.99

In stock

Specifications

Stator Diameter 34 mm (1.34 in)
Stator Thickness 38 mm (1.50 in)
No. of Stator Arms 12
Magnet Poles 4
Motor Wind 1.5 Turn Wye
Motor Wire 2 Strand 1.35mm
Motor Kv 1600 RPM / Volt
No-Load Current (Io) 1.5 Amps @ 8 volts
Motor Resistance (Rm) 0.112 Ohms
Max Continuous Current 109 Amps
Max Continuous Power 2400 Watts
Weight 303 Grams (10.70 oz)
Outside Diameter 36 mm (1.42 in)
Shaft Diameter 5.00 mm (0.197 in)
Body Length 81 mm (3.19 in)
Overall Shaft Length 97 mm (3.82 in)
Max Lipo Cell 6s
Motor Timing 5-15deg
Drive Frequency 8kHz
Max RPM 42000 RPM

Weight including packaging

570g

Full Dimension

View Scorpion IS-3440-1600KV Motor Full Dimension
