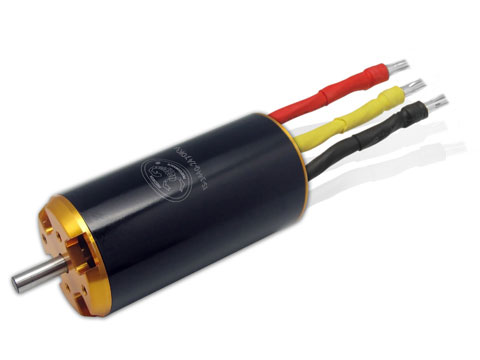

Scorpion IS-3440-2470KV Motor

[is_3440_2470]

Price: $142.99

In stock

Specifications

Stator Diameter 34 mm (1.34 in)
Stator Thickness 38 mm (1.50 in)
No. of Stator Arms 12
Magnet Poles 4
Motor Wind 1 Turn Wye
Motor Wire 4 Strand 1.2mm
Motor Kv 2470 RPM / Volt
No-Load Current (Io) 1.8 Amps @ 8 volts
Motor Resistance (Rm) 0.051 Ohms
Max Continuous Current 112 Amps
Max Continuous Power 2450 Watts
Weight 305 Grams (10.77oz)
Outside Diameter 36 mm (1.42 in)
Shaft Diameter 5.00 mm (0.197 in)
Body Length 81 mm (3.19 in)
Overall Shaft Length 97 mm (3.82 in)
Max Lipo Cell 6s
Motor Timing 5-15deg
Drive Frequency 8kHz
Max RPM 42000 RPM

Weight including packaging

570g

Full Dimension

View Scorpion IS-3440-2470KV Motor Full Dimension
