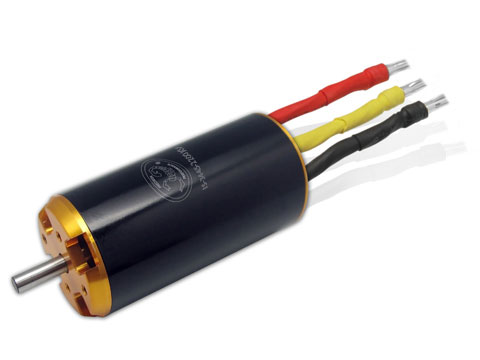

Scorpion IS-3445-2200KV Motor

[is_3445_2200]

Price: $152.99

Backorder (ship within 2 weeks)

Notify me when this item is back in stock

Your email:

Specifications

Stator Diameter 34 mm (1.34 in)
Stator Thickness 43 mm (1.69 in)
No. of Stator Arms 12
Magnet Poles 4
Motor Wind 1 Turn Wye
Motor Wire 4 Strand 1.2mm
Motor Kv 2200 RPM / Volt
No-Load Current (Io) 1.4 Amps @ 8 volts
Motor Resistance (Rm) 0.057 Ohms
Max Continuous Current 123 Amps
Max Continuous Power 2690 Watts
Weight 335 Grams (11.83 oz)
Outside Diameter 36 mm (1.42 in)
Shaft Diameter 5.00 mm (0.197 in)
Body Length 84.2 mm (3.32 in)
Overall Shaft Length 100 mm (3.94 in)
Max Lipo Cell 6s
Motor Timing 5-15deg
Drive Frequency 8kHz
Max RPM 42000 RPM

Weight including packaging

610g

Full Dimension

View Scorpion IS-3445-2200KV Motor Full Dimension
