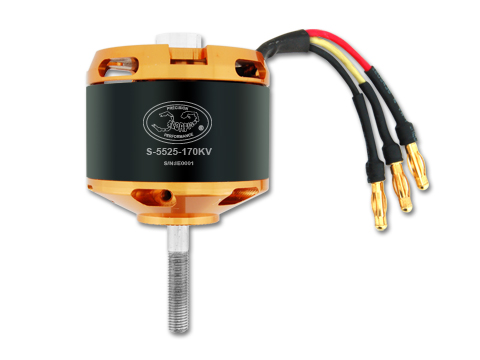

Scorpion S-5525-170KV

[S-5525-170KV]

Original price: $319.99 Your price: $160.00

In stock

Scorpion Competition Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. The new 55mm series motors have been designed to fit larger models that would normally require a 30cc to 50cc gasoline motor. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-Plated to provide a beautiful, long-lasting finish. The stators are made with 0.35mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are rated for operation at 200 degrees C (392 F), making a motor that is virtually impossible to burn up in normal use.

All Scorpion 55mm motors come with 4.0mm male bullet style connectors already attached, and include a complete hardware package that contains the following: 3 matching female Bullet connectors for your speed controller, a cross style backplate mount with 4 screws, a thrust washer with tapered collar, a spacer collar that allow you to move the prop forward if needed, a heavy duty prop washer, a prop nut and two prop lock nuts that have threaded tips for use with a spinner.

Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. For the best overall combination of quality, performance, and value, give Scorpion Motors a try!

Specifications

Stator Diameter 55mm (2.165 in)
Stator Thickness 25mm (0.984 in)
No. of Stator Arms 18
Magnet Poles 20
Motor Wind 16 Turn Delta
Motor Wire 20-Strand 0.25mm
Motor Kv 170 RPM / Volt
No-Load Current (Io/10V) 1.15 Amps
Motor Resistance (Rm) 0.040 Ohms
Max Continuous Current 65 Amps
Max Continuous Power 2300 Watts
Weight 636.6 Grams (22.46 oz)
Outside Diameter 65.4 mm (2.575 in)
Shaft Diameter 7.98 mm (0.314 in)
Body Length 61.05 mm (2.403 in)
Overall Shaft Length 110.5 mm (4.35 in)
Max Lipo Cell 10s
Motor Timing 5deg
Drive Frequency 8kHz

Weight including packaging

1800g

Data Chart

View Scorpion S-5525-170KV Data Chart

Full Dimension

View Scorpion S-5525-170KV Full Dimension
