Scorpion A-4220 (Sport) PNP Combo (6s/70E/2109w)
- Overview
- Technical specifications
- Videos

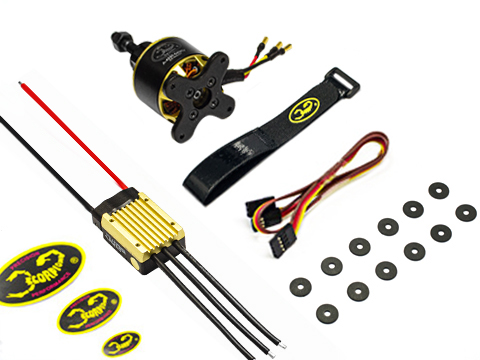

In combination with our new A-Series motor line debut, we are also please to announce our new "PLUG-N-POWER" combo kits! We wanted to take the guess work out of Electric Power Systems, and provide our customers with a simple, convenient and reliable power system for their 70E / 15cc sized airplanes commonly used in 60"-64" Acrobatic Airplanes or Sport planes typically up to 90" . The A-4220 PNP (Sport) Combo is the solution. This pairs our high power and high efficiency A-series motors with one of our suitably sized, preprogrammed, Tribunus ESCs! Providing you with a tested, proven, and convenient power system combo, which is sure to provide you amazing power, at the best efficiency! This PNP combo is ready to easily bolt on, and give you the power you need, with the efficiency you want.

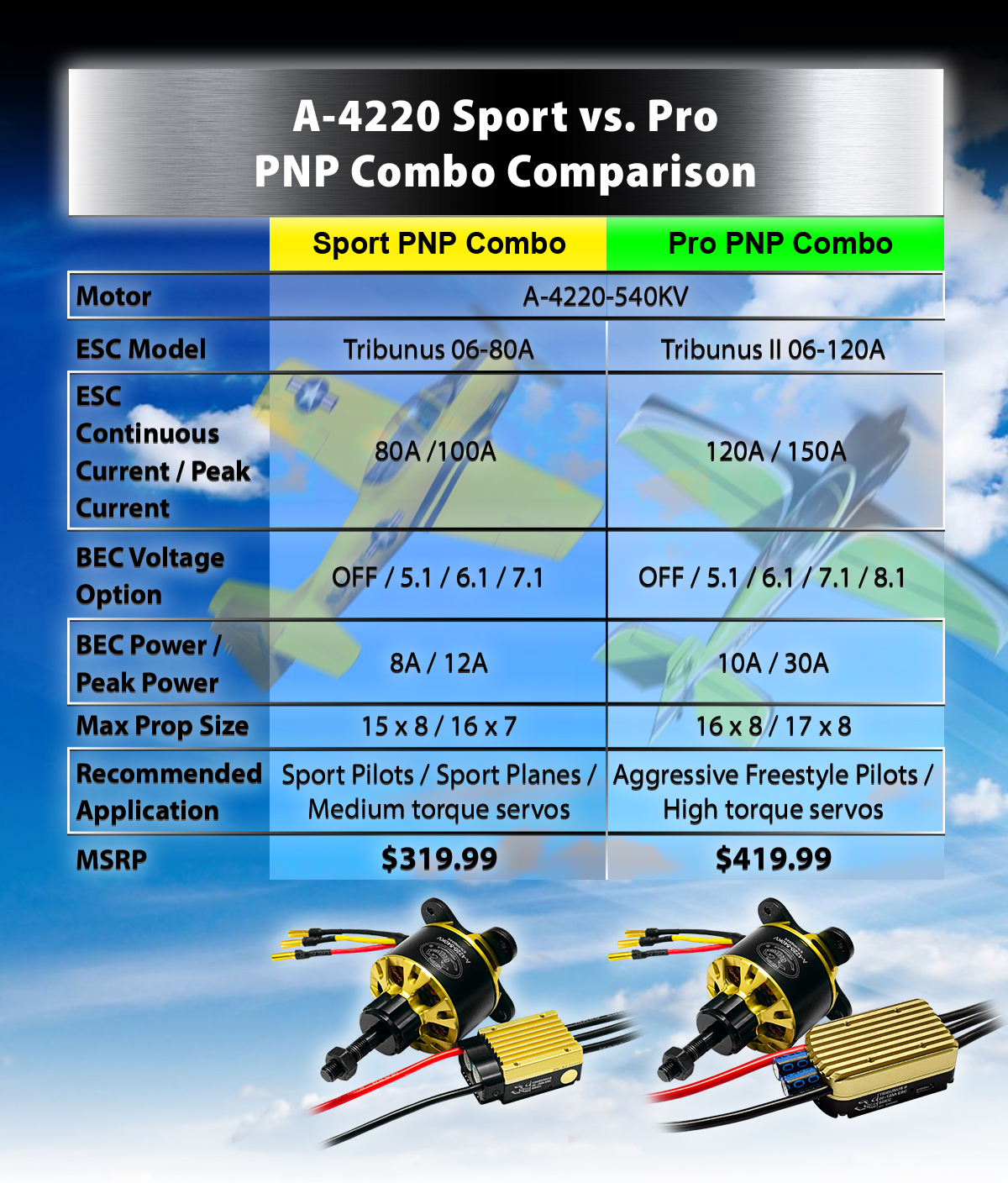

The A-4220 PNP Combo comes in 2 variations. A "Sport" version and a "Pro" version. The Sport version is useful on sport airplanes using lower power servos, and smaller prop, whereas the Pro version can handle high torque servos and larger props for extreme use cases!

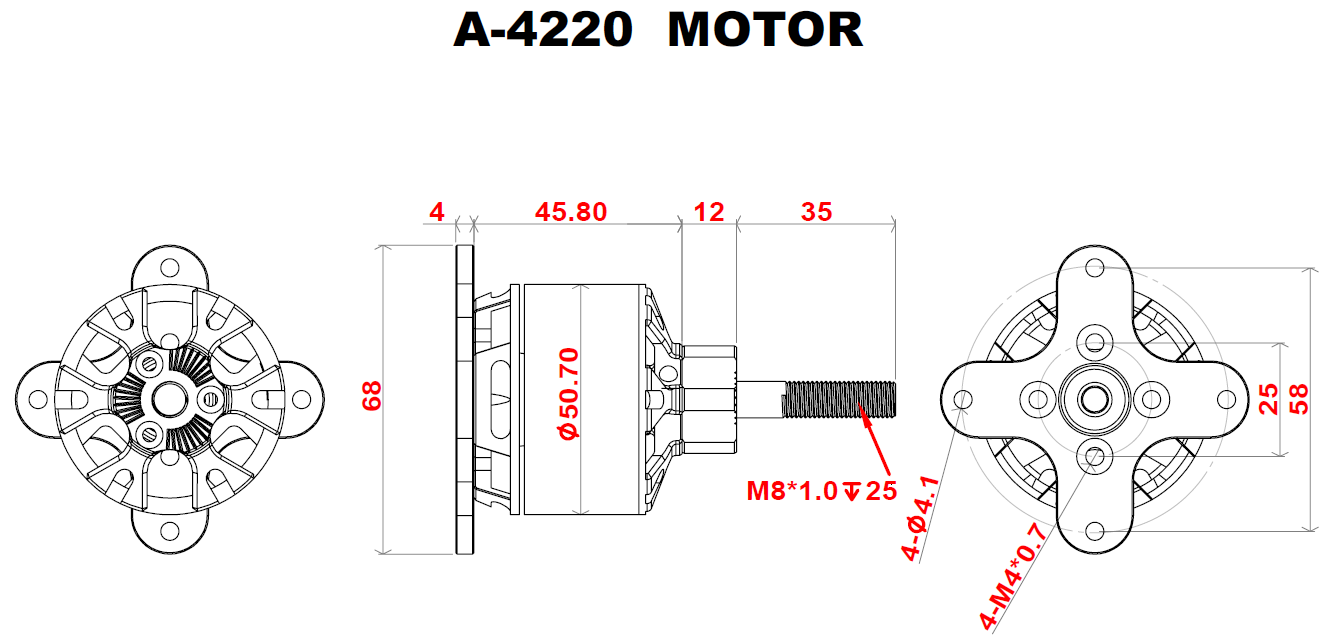

Full Dimension
Specifications
| Total Power System Weight (Motor+ESC+Cross Mount) | 392g (13.82 oz) |
|
|
| MOTOR SPECIFICATIONS : | |
| Motor Kv | 540 RPM / Volt |
| Weight (including cross mount + Prop mount accessories) | 336g ( 11.96oz) |
| Motor Body Dimensions | 45.8mm x 50.7mm (+12.0mm prop spacer) (1.80" x 2.00" (+ 0.47") ) |
| External Shaft Diameter | 8mm |
| Continuous Current | 80A |
| Continuous Power | 1776 Watts |
| Peak Current* | 95A |
| Peak Power* | 2109 Watts |
| Max Rated Lipo Cell | 6s |
| Stator Arms | 12 |
| Magnet Poles | 14 |
|
|
| ESC SPECIFICATIONS : | |
| Max Continuous Current | 80 Amps |
| Peak Current | 100 Amps |
| Operating Voltage Range | 11-26.1 Volts |
| BEC Output voltage: | OFF/5.1/6.1/7.1 |
| Max Continuous BEC Output | 8 Amps @ 7.1 V |
| Peak BEC Output | 12 Amps/1s @ 7.1 V |
| Size | 47.1x31x20mm (1.85 x 1.22 x 0.79 in) |
| Weight (Without Connectors) | 60g (1.98 oz) |
| Drive frequency | 8kHz - 32kHz |
| Cable gauge | 14 AWG |
|
|
| *Our ratings are classified as TRUTHFUL. Continuous Current / Power correlates to actual sustainable power levels. Peak Power is for intermittent full throttle usage ranging from 5 - 60 seconds depending on use case and cooling* | |

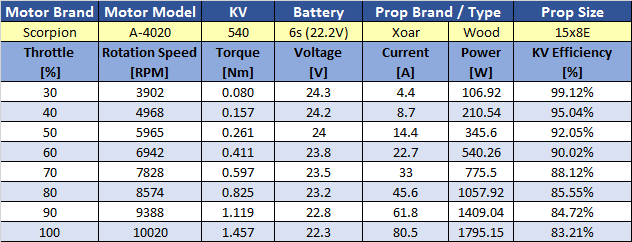

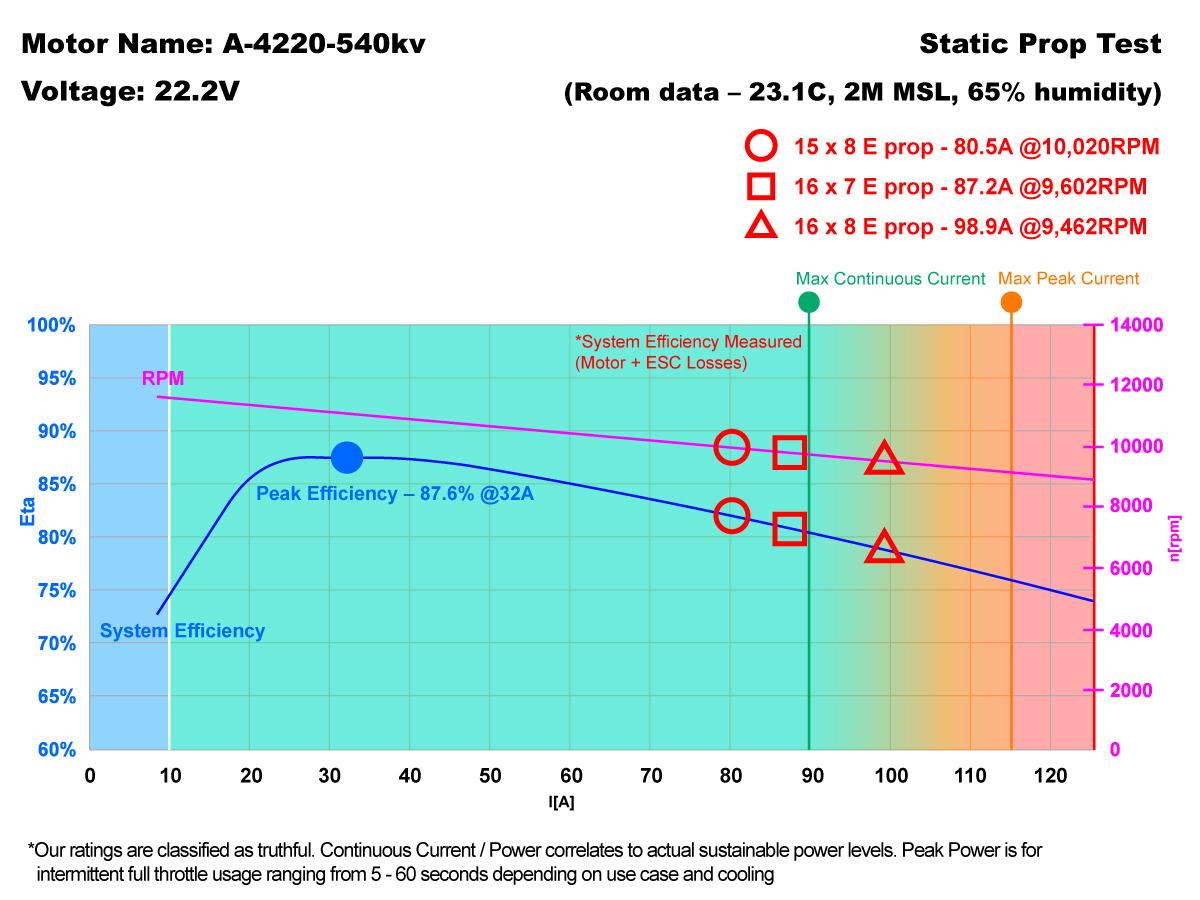

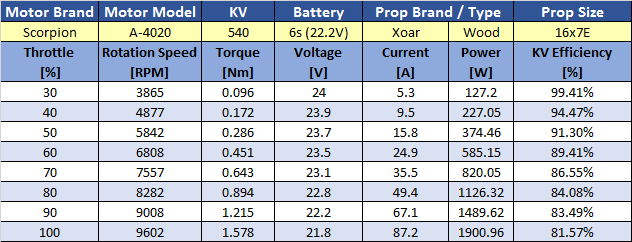

Performance Charts
Use Case Applications
Weight including packaging
560g
