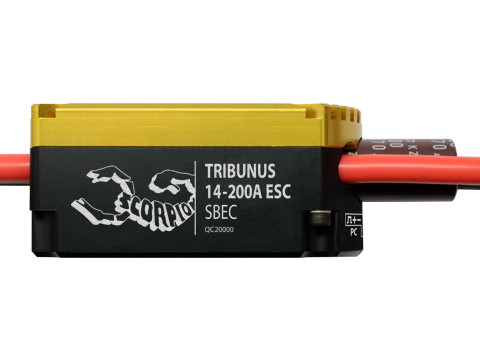

Scorpion Tribunus 14-200A (SBEC)

[Tribunus_14_200A]
$ 449.99

$ 314.99
Sorry, this product is currently out of stock and can not be ordered.

Product Description

Airplane and Heli mode,

Stored and unstored Governor, external governor.

Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3.

ESC setup can be set by Mikado V control Radio.

PC connectivity, Android connectivity ( OTG cable needed) , V link II Cable(optional) plus Diode adaptor(included) cable needed.

Supported HvLi battery 14S total 61V.

Size: 83.4 x 45.2 x 30 mm

Weight: 216 Grams.


Mikado Proving Ground Produced by Kyle Dahl


Bobby Watts show you how to set up the Tribunus 14-200A ESC and Demonstration flight by Kyle Stacy

** Scorpion Tribunus 14-200A - User Manual

** Scorpion Tribunus Heli Program Sproto

** Scorpion V Link II Cable CH340 Driver (For all ESC use)

** How to update Tribunus firmware

** How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Vbar NEO

** How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Jeti

** DIY your spark suppressor system on a ESC

** How-to update Tribunus firmware

Scorpion Tribunus 14-200A (SBEC)

Specifications

Max Continuous Current 200 Amps
Peak Current 250Amps
Operating Voltage Range 14-61 Volts
BEC Output voltage: 5.1V to 8.3V adjustable.
Max Continuous BEC Output 10 Amps @ 8.3 V
Peak BEC Output 20 Amps/1s @ 8.3 V
On Resistance 0.55 mOhms *2
Size 83.4 x 45.2 x 30 mm (3.28 x 1.78 x 1.18 in)
Weight (Without Connectors) 216 (7.62 oz)
Drive frequency 8kHz - 32kHz

Included in the Box

Diode adaptor cable *1
Connection cable *2

Weight including packaging

607g
