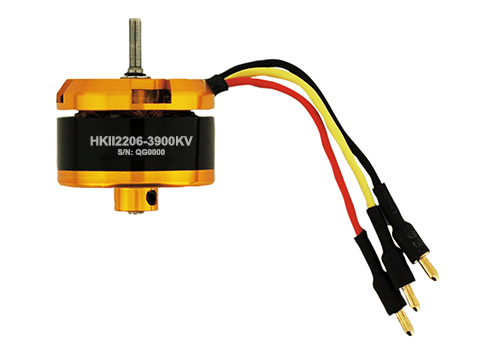

Scorpion HKII-2206-3900KV (2.5mm Shaft)
Scorpion HK Series 22mm motors come with 3.5mm male Bullet style connectors already attached, and include a hardware package that contains 3 matching female Bullet connectors for your speed controller, heatshrink to cover the bullet connectors and mounting screws. Since the HK series motors are primarily designed for Helicopter and Ducted Fan use, they do not include a prop adapter. This HK2206-3900KV motor is specifically designed for the newer micro helicopters, such as the T250 and GAUI-EP255*.
Scorpion HK Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold anodized to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are custom manufactured to be able to withstand temperatures of up to 200 degrees C (392 F).
Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. However, due to the high RPM of these motors, and the fact that we cannot control the installation and setup, the bearings are not covered by the 2-Year warranty, nor is any subsequent damage caused to the motor by a bearing failure. Bearings are a normal wear item, and as such, need to be maintained and changed periodically. For maximum life, make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding, and put a small drop of oil on each bearing every 5-6 flights. It is the responsibility of the pilot to ensure that the bearings are maintained properly.
* For GAUI EP-255, customers are required to use a 2.5mm Pinion Gear with this motor.
|Stator Diameter||22.0 mm (0.87 in)|
|Stator Thickness||6 mm (0.24 in)|
|No. of Stator Arms||9|
|Motor Wind||24 Turn Delta|
|Motor Wire||7-Strand 0.19mm|
|Motor Kv||3900 RPM / Volt|
|No-Load Current (Io)||0.83 Amps @ 6 volts|
|Motor Resistance (Rm)||0.064 Ohms|
|Max Continuous Current||14 Amps|
|Max Continuous Power||150 Watts|
|Weight||31.6 Grams (1.11 oz)|
|Outside Diameter||27.9 mm (1.098 in)|
|Shaft Diameter||2.5 mm (0.098 in)|
|Body Length||22.6mm (0.89 in)|
|Overall Shaft Length||32.6 mm (1.28 in)|
|Max Lipo Cell||3s|
Included in the Box
1 x Scorpion HKII-2206-3900KV Motor
3 x Female Connectors
3 x Heat Shrink
4 x M3 Screws
Weight including packaging
