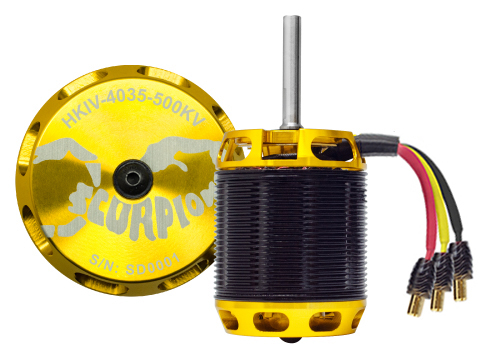

Scorpion HKIV-4035-500KV

[HKIV_4035_500]
$ 249.99
In stock
Scorpion HKIV-4035-500KV

Specifications

Stator Diameter 40 mm (1.57 in)
Stator Thickness 35 mm (1.024 in)
No. of Stator Arms 12
Magnet Poles 10
Motor Wind 5+5 Turn Delta
Motor Wire 1-Strand 1.4mm
Motor Kv 500KV RPM / Volt
No-Load Current (IO/10v) 2.31 Amps @ 10v
Motor Resistance (RM) 0.016 Ohms
Max Continuous Current 84 Amps
Max Continuous Power 3726 Watts
Weight 456 Grams (16.09 oz)
Outside Diameter 49.5 mm (1.95 in)
Shaft Diameter 5.98 mm (0.235 in)
Body Length 64 mm (2.52 in)
Overall Shaft Length 102.4 mm (4.03 in)
Max Lipo Cell 12s
Peak Continuous Current 104A (5 seconds)
Peak Continuous Power 4617 Watts (5 seconds)
Motor Timing 5deg
Drive Frequency 8kHz

Weight including packaging

882g

Full Dimension

View Scorpion HKIV-4035-500KV Full Dimension
