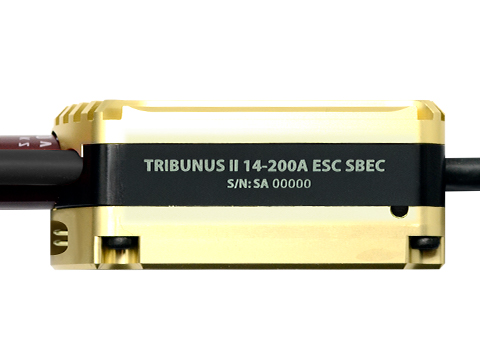

Scorpion Tribunus II 14-200A ESC

[TribunusII_14_200A]
$ 449.99

Backorder (ship within 2 weeks)

Product Description

Airplane and Heli mode,

Stored and unstored Governor, external governor.

Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3 ( more compatible device will be added gradually like Futaba..etc.)

ESC setup can be set by Mikado V control Radio.

PC connectivity, Android connectivity ( OTG cable needed) , V link II Cable(optional) plus Diode adaptor(included) cable needed.

Supported HvLi battery 14S total 61V.

Size: 83.4 x 45 x 27.6 mm

Weight: 218 Grams.


Mikado Proving Ground Produced by Kyle Dahl


Bobby Watts show you how to set up the Tribunus 14-200A ESC and Demonstration flight by Kyle Stacy

** Scorpion Tribunus II 14-200A - User Manual

** Scorpion Tribunus Heli Program Sproto

** Scorpion V Link II Cable CH340 Driver (For all ESC use)

** How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Vbar NEO

** How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Jeti

** DIY your spark suppressor system on a ESC

** Hot-to update Tribunus firmware

Scorpion Tribunus II 14-200A ESC

Specifications

Max Continuous Current 200 Amps
Peak Current 250Amps
Operating Voltage Range 14-61 Volts
BEC Output voltage: 5.1V to 8.3V adjustable.
Max Continuous BEC Output 10 Amps @ 8.3 V
Peak BEC Output 20 Amps/1s @ 8.3 V
On Resistance 055 mOhms *2
Size 83.4 x 45 x 27.6 mm (3.28 x 1.77 x 1.08 in)

Included in the Box

Diode adaptor cable *1
Connection cable *2

Weight including packaging

609g
