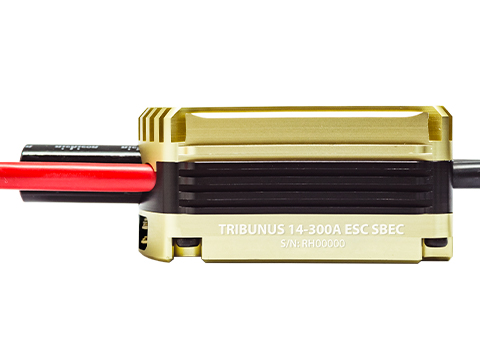

Scorpion Tribunus 14-300A ESC SBEC

[Tribunus_14_300]
$ 549.99
In stock

Product Description

Airplane and Heli mode,

Stored and unstored Governor, external governor.

Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3 ( more compatible device will be added gradually like Futaba..etc.)

ESC setup can be set by Mikado V control Radio.

PC connectivity, Android connectivity ( OTG cable needed) , V link II Cable(optional) plus Diode adaptor(included) cable needed.

Supported HvLi battery 14S total 61V **.

Size: 90.2 x 50 x 31.7 mm

Weight: 238 Grams.

**Using up to16s HV Lipo will not void the warranty.


Mikado Proving Ground Produced by Kyle Dahl


Bobby Watts show you how to set up the Tribunus 14-200A ESC and Demonstration flight by Kyle Stacy

** Scorpion Tribunus 14-300A - User Manual

** Scorpion Tribunus Heli Program Sproto

** Scorpion V Link II Cable CH340 Driver (For all ESC use)

** How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Vbar NEO

** How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Jeti

** DIY your spark suppressor system on a ESC

** Hot-to update Tribunus firmware

Scorpion Tribunus 14-300A ESC SBEC

Specifications

Max Continuous Current 300 Amps
Peak Current 400Amps
Operating Voltage Range 14-61 Volts **
BEC Output voltage: 5.1V to 8.3V adjustable.
Max Continuous BEC Output 10 Amps @ 8.3 V
Peak BEC Output 30 Amps/1s @ 8.3 V
On Resistance 0.65 mOhms *2
Size 90.2 x 50 x 31.7 mm (3.55 x 1.96 x 1.24 in)
Weight (Without Connectors) 238g (8.39 oz)
Drive frequency 8kHz - 32kHz

Included in the Box

Diode adaptor cable *1
Connection cable *2

Weight including packaging

627g
