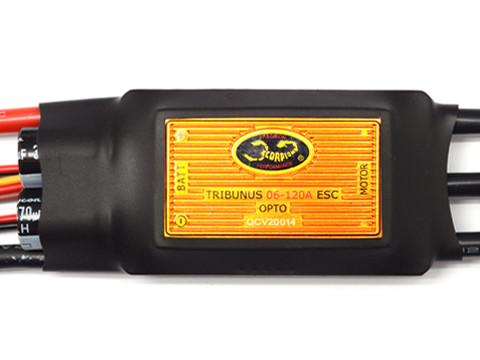

Scorpion Tribunus 06-120A (OPTO)

[tribunus_06_120_opto]
$ 119.99
Sorry, this product is currently out of stock and can not be ordered.

Product Description

Airplane and Heli mode,

Stored and unstored Governor, external governor.

Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3 ( more compatible device will be added gradually like Futaba..etc.)

ESC setup can be set by Mikado V control Radio.

PC connectivity, Android connectivity ( OTG cable needed) , V link IICable(optional) plus Diode adaptor(included) cable needed.

Supported HvLi battery 6S total 26.1V.

Size: 16.5 x 30.8 x 68.5 mm

weight: 76 Grams.


Mikado Proving Ground Produced by Kyle Dahl

How to set up the esc

Scorpion Tribunus 06-120A Demo flight Produced by Jan-David Schreier and Daniel Schreier

** Scorpion Tribunus 06-120A - User Manual

** Scorpion Tribunus Heli Program Sproto

** Scorpion V Link II Cable CH340 Driver (For all ESC use)

** How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Vbar NEO

** How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Jeti

** DIY your spark suppressor system on a ESC

** How-to update Tribunus firmware

Specifications

Max Continuous Current 120 Amps
Peak Current 150Amps
Operating Voltage Range 11-26.1 Volts
On Resistance 0.4 mOhms *2
Size 16.5 x 30.8 x 68.5 mm (0.65 x 1.21 x 2.69 in)
Weight (Without Connectors) 76g (2.7 oz)
Drive frequency 8kHz - 32kHz

Included in the Box

Diode adaptor cable

Weight including packaging

320g
