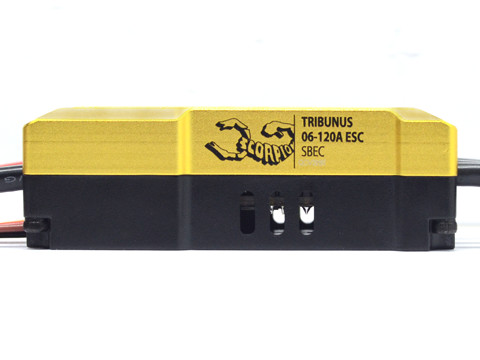

Scorpion Tribunus 06-120A (SBEC)
Airplane and Heli mode,
Stored and unstored Governor, external governor.
Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3 ( more compatible device will be added gradually like Futaba..etc.)
ESC setup can be set by Mikado V control Radio.
PC connectivity, Android connectivity ( OTG cable needed) , V link II Cable(optional) plus Diode adaptor(included) cable needed.
Supported HvLi battery 6S total 26.1V.
Size: 23.7 x 37 x 73.8 mm
Weight: 108 Grams.
Mikado Proving Ground Produced by Kyle Dahl
How to set up the esc
|Max Continuous Current||120 Amps|
|Operating Voltage Range||11-26.1 Volts|
|BEC Output voltage:||5.1V to 8.3V adjustable.|
|Max Continuous BEC Output||10 Amps @ 8.3 V|
|Peak BEC Output||20 Amps/1s @ 8.3 V|
|On Resistance||0.4 mOhms *2|
|Size||23.7 x 37 x 73.8 mm (0.92 x 1.45 x 2.9 in)|
|Weight (Without Connectors)||108g (3.8 oz)|
|Drive frequency||8kHz - 32kHz|
Included in the Box
Diode adaptor cable
Weight including packaging
