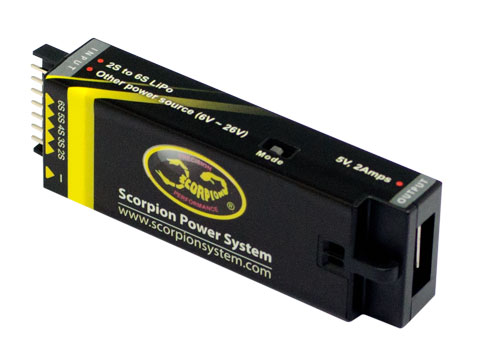

Scorpion Portable USB Charger

$ 19.99
In stock

Product Description

Usage: To charge any USB device with using LiPo

batteries OR other power source

Input: 2S to 6S LiPo batteries OR other power source

from 6V up to 26V

Output: 5V, 2 Amps


* Auto power on

* Auto detect LiPo cell count

* Auto Protection: Overload and short circuit

protection (Output)

* Build-in temperature sensor protection (70°c)

* Wrong input polarity protection

* 3 charging mode selection with LED indication:

Mode 1) Stop charging if any LiPo cell under 3.3V

Mode 2) Stop charging if any LiPo cell under 3.8V

Mode 3) Using other power source

(no LiPo battery voltage protection / no LiPo cells detection

*Caution: Suggest use original charging cable to charge the electronic

appliances. Always disconnect power source after device fully charged. Not

to use LiPo battery in mode 3, battery will continues discharge without

protection. Battery may over discharge cause explosion. Charger heat sink

temperature could heat up to 70°C.

User Guide for Scorpion Portable USB Charger V01.pdf


Size (78mm x 25mm x 17mm)
LiPo input 2S~6S
USB output 5V/2000mAh
Other power source input voltage from DC 6V to 26V
Cell Check
Battery discharge protection Mode 1 ~3.3V or Mode 2 ~3.8V per cell

Weight including packaging
