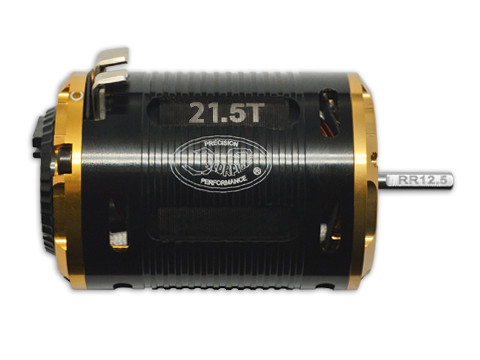

Scorpion RR-3420 21.5TNew

[rr-3420-215t]

Price: $89.99

In stock

Scorpion Power Systems RR-3420 series Brushless DC car motor. These motors are designed to meet and comply with all standards set forth by ROAR for use in 1/10th and 1/12th scale electric powered RC racing cars. Scorpion motors are designed from the ground up to meet the demanding needs of racing enthusiasts, and are built with efficient, high-temperature components that allow them to produce the maximum power and speed that is possible. Years of research and development by top engineers and hands on testing by professional drivers has allowed us to make the RR-3420 series the best motors available on the market today!

• Patented Screw-type rotor surface to increase flux density and maximize cooling

• No plastic inserts are used to achieve maximum copper fill for the motor windings

• Rotor magnets are protected by a metal sleeve for maximum durability

• Built-in temperature sensors allow for on-track monitoring when used with Scorpion ESC

• 200% more cooling surface than other comparable motors for better heat dissipation

• The largest glued surface for the rotor, shaft and magnets of any motor in its class

• High grade Silicon Steel is used in the stator assembly for maximum flux density

• High purity copper wire is used for minimum internal resistance

• High temperature magnets are used to take the heat of competition

• Motor parts CNC machined from 7075 aerospace grade aluminum alloy

Scorpion RR-3420 Online manual

Specifications

Stator Diameter 34mm(1.34 in)
Stator Thickness 20mm(0.79 in)
No.of Stator Arms 3
No.of Stator Poles 2
Motor Wind 21.5T
Motor Wire 2-Strands 0.724mm
Motor KV 1830KV RPM/Volt
No-Load Current(lo/7.8V) 1.0Amps
Motor Resistance(RM) 0.076 Ohms
Weight 170.7Grams(6.03oz)
Outside Diameter 35.8mm(1.41 in)
Shaft Diameter 3.175mm(0.12 in)
Body Length 52.8mm(2.08in)
Overall Shsft Length 66.8mm(2.63 in)
Rotor Magnet Diameter 12.5mm(0.49 in)
Max Lipo Cell 2s
Motor Timing Adjustable deg
Drive 8KHz

Weight including packaging

400g

Full Dimension

View Scorpion RR-3420 21.5T Full Dimension
