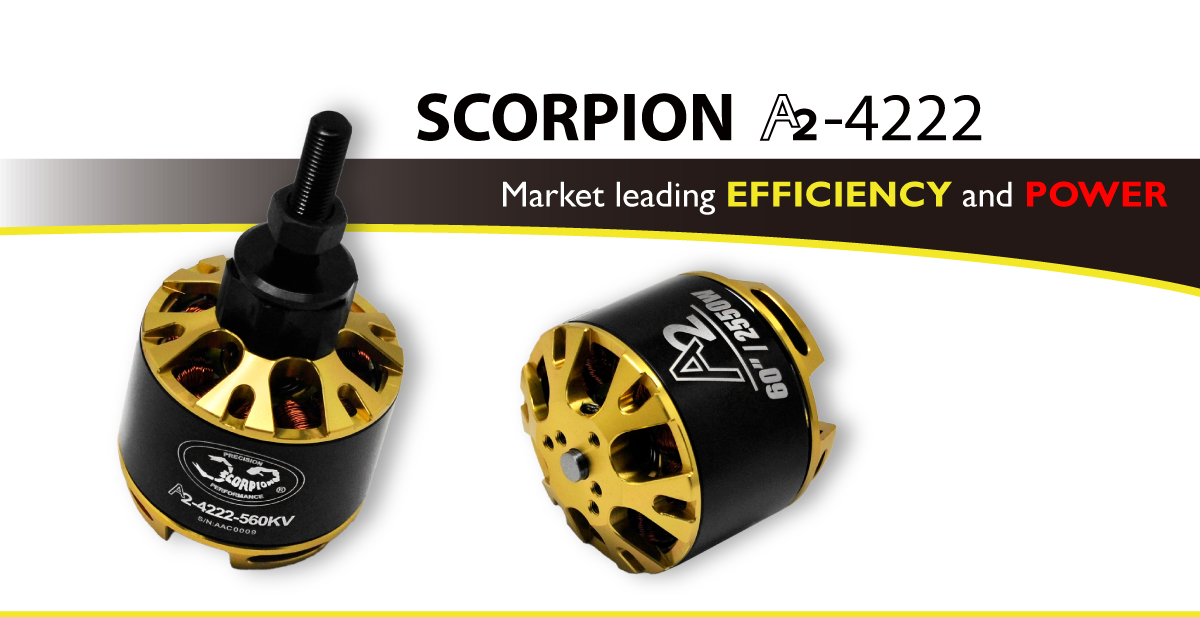

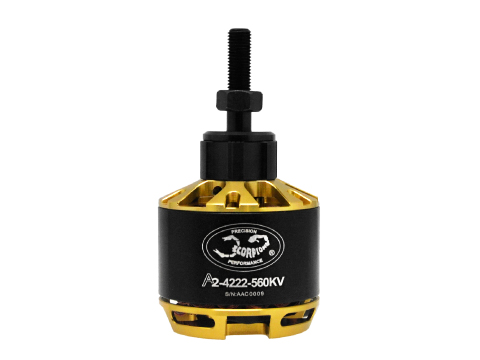

Scorpion A2-4222-560kv (60-64" Acro / 6s / 2550w / 15cc)
- Overview
- Technical specifications
- Videos

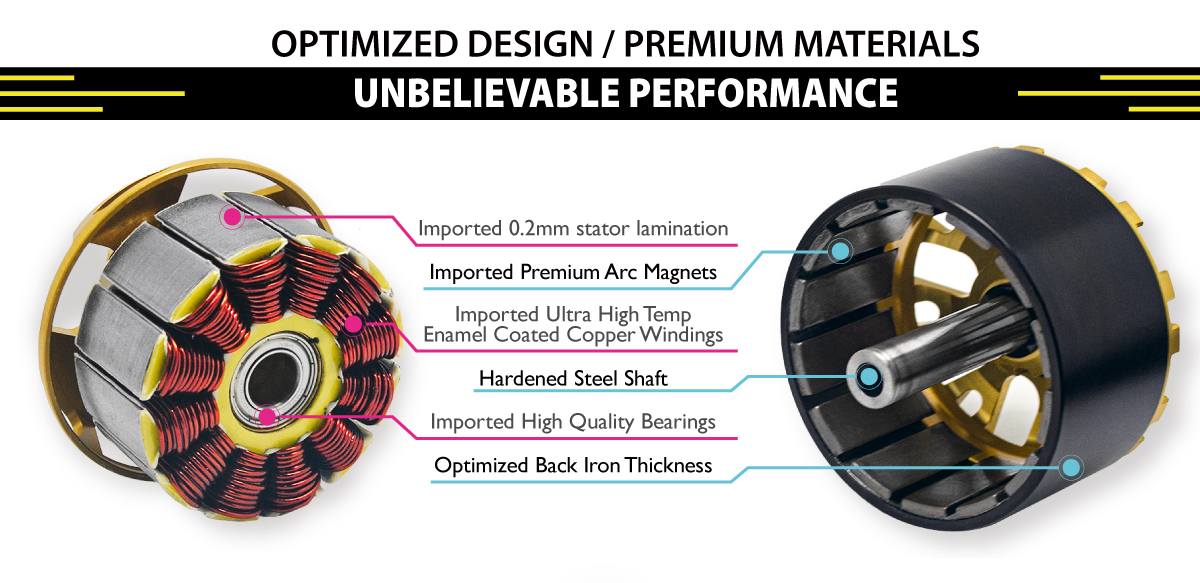

The Scorpion A2 - Series line of motors was designed to be the most optimal and premier choice of motor for your freestyle or UAV airplane. We have achieved incredible performance through incredible efficiency. By optimizing the magnets in the rotor, and using the best quality 0.2mm thickness silicon steel stator sheets, and high temp enamel coated copper wire windings rated above 200C+, the performance and efficiency results are unlike anything we have seen before! Combined with a robust design which has been tested extensively by our world class team pilots for longevity and reliability, we feel this motor checks and exceeds all measurable categories!

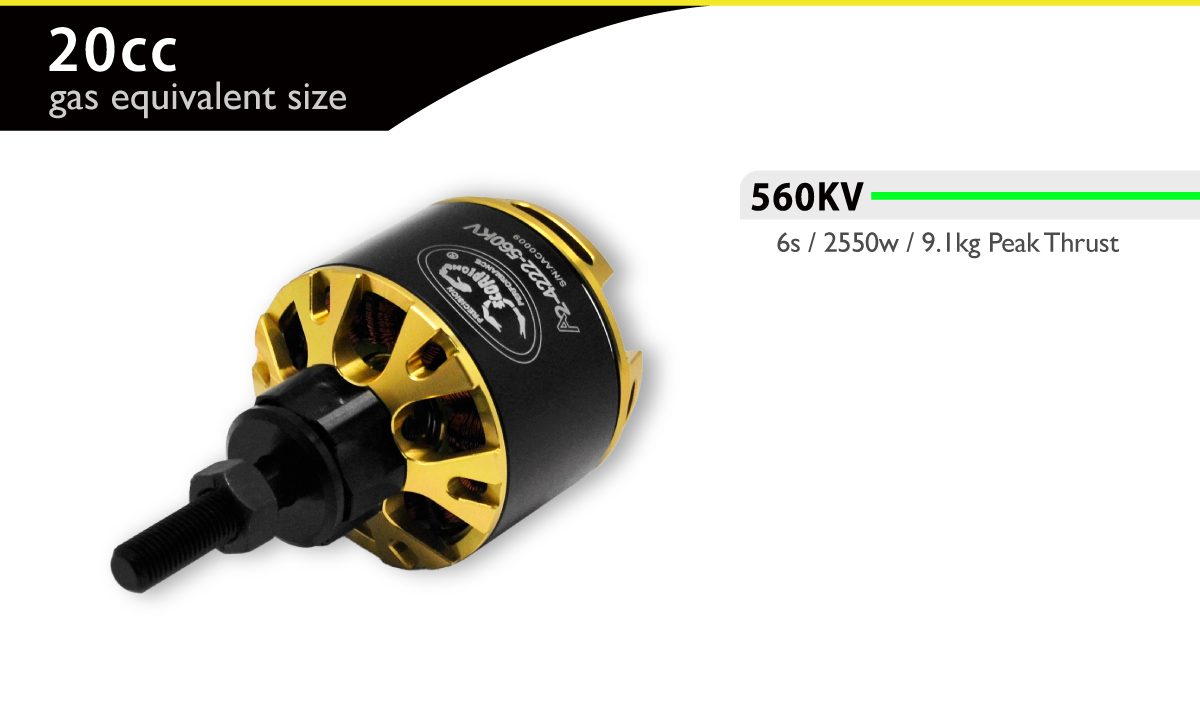

The A2-4222-560kv was designed specifically for acrobatic airplanes with 60 - 64 inch wingspan, or other airframes requiring up to 2550w of power.

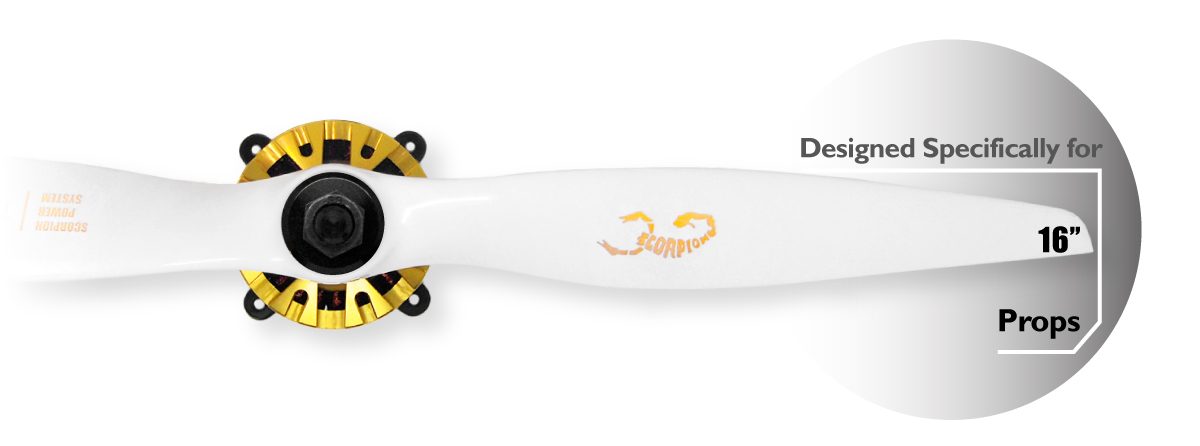

Recommended Prop Selection :
For 6s - Scorpion 16x8 Carbon
Recommended ESC : Tribunus III 06-110A ESC SBEC
Specifications
| Motor Kv | 560 RPM / Volt |
| Weight (Motor only) | 328.4g ( 11.58oz) |
| Weight (including mount + Prop mount accessories) | 374.8g (13.22 oz) |
| Motor Body Dimensions | 51mm x 46.9mm (+12.0mm prop spacer) (2.01" x 1.85" (+0.47") ) |
| External Shaft Diameter | 8mm |
| Continuous Current | 80A |
| Continuous Power | 2000 Watts |
| Peak Current* | 115A |
| Peak Power* | 2550 Watts |
| Max Rated Lipo Cell** | 6s |

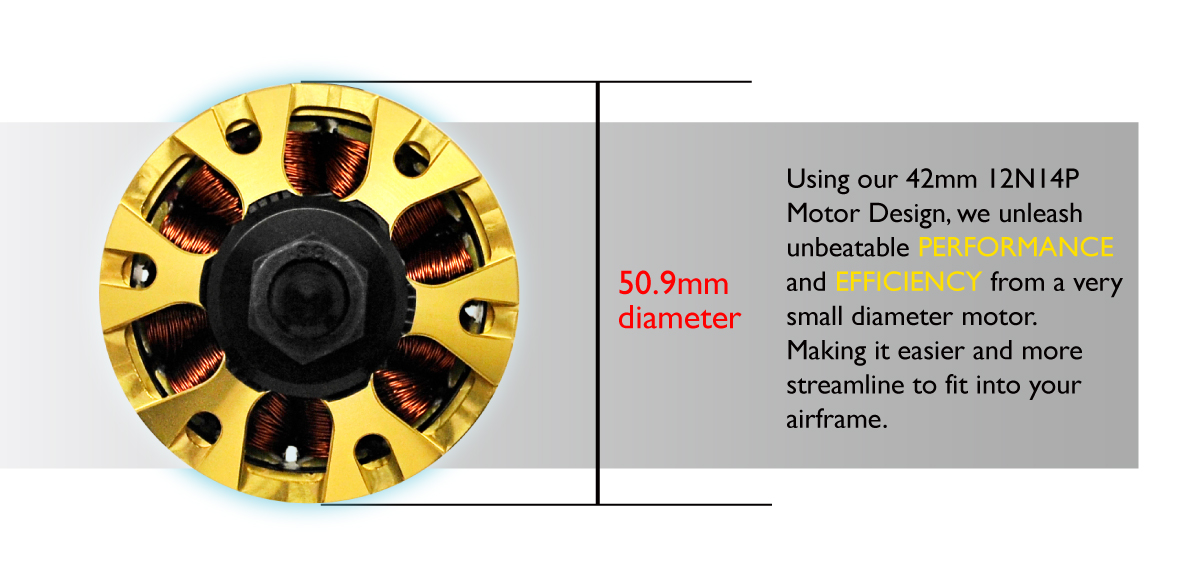

| Stator Diameter | 42 mm (1.65in) |
| Stator Thickness | 22 mm (0.87in) |
| No. of Stator Arms | 12 |
| Magnet Poles | 14 |
| Motor Wind | 5T Delta |
| Motor Wire | 22-Strand x 0.29mm |
| No-Load Current (IO/15V) | 1.87 Amps |
| Motor Internal Resistance (phase-phase) | 13.17 mΩ |
| Motor Inductance (phase-phase) @ 1khz | 13.57 µH |
| *Continuous Current subject to Power % reduction factors. Peak Power is for intermittent full throttle usage ranging from 10 - 180 seconds depending on use case and cooling. Check Scorpion Motor Manual for more information* | |
| **Higher Cell Count possible with smaller prop usage** | |

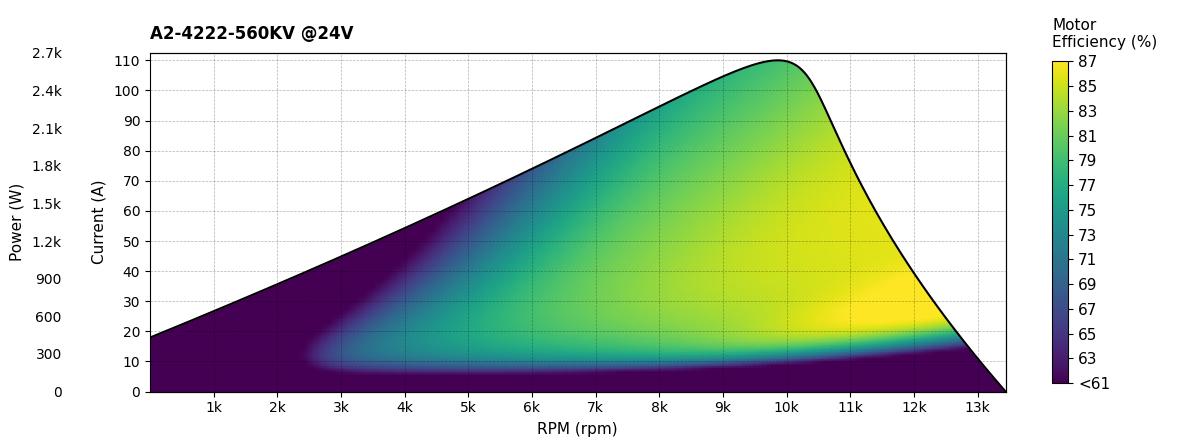

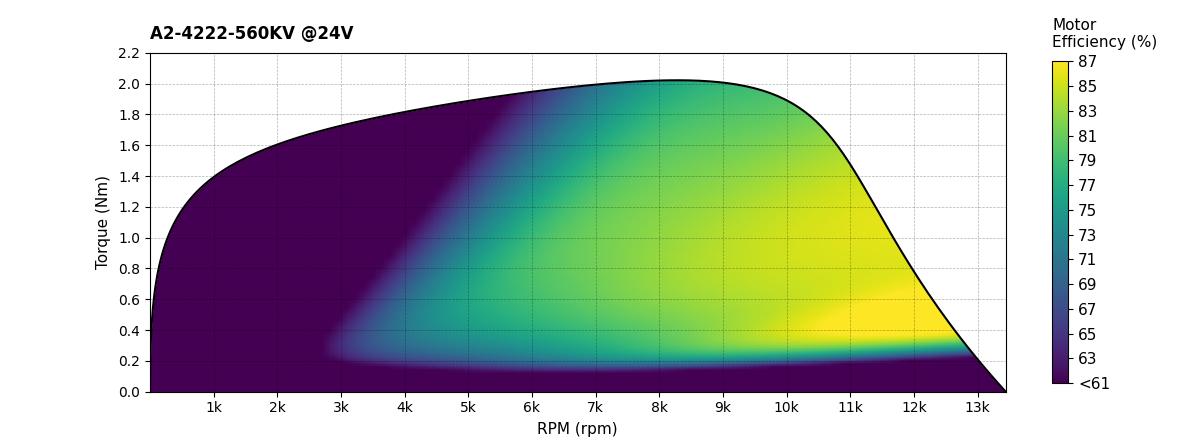

Performance Charts

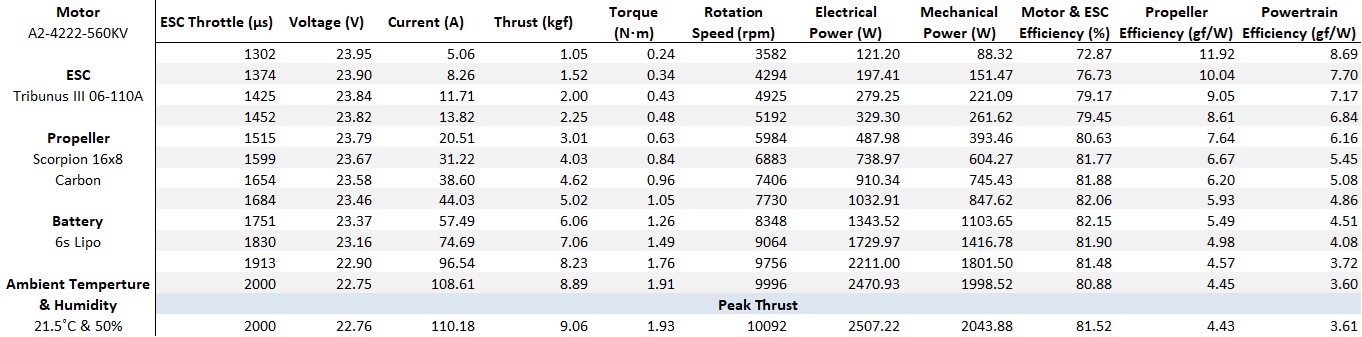

kv-24v-16x8-kg_test_table.jpg)

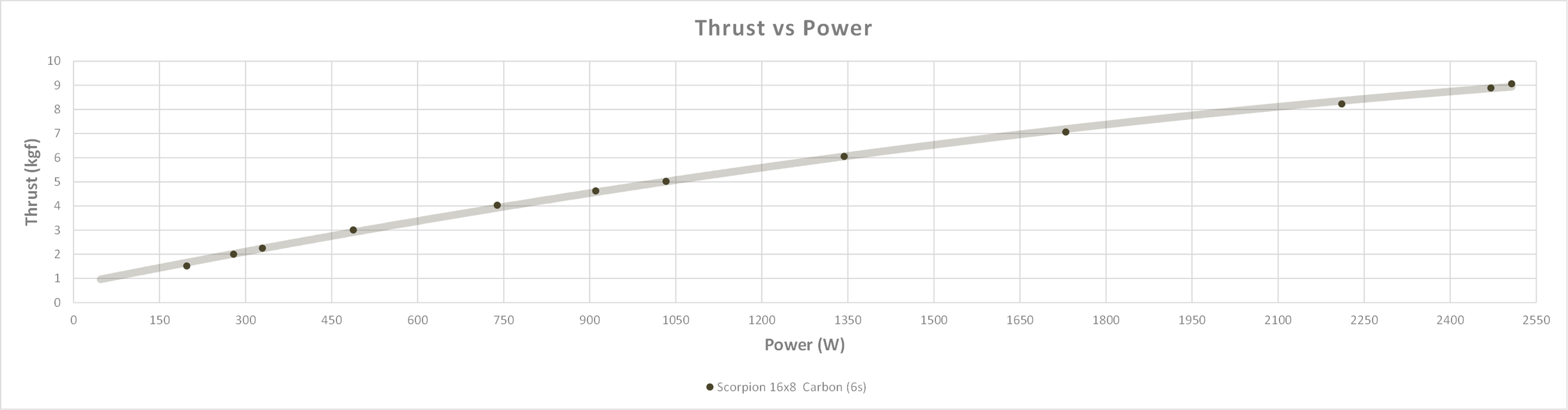

kv-24v-16x8-kg_test_thrust_vs_power.jpg)
Included in the Box
1 x Scorpion A-4222 BLDC Motor
1 x A-42 Cross Mount (stock)
4 x M4 Cross Mount Mounting Bolts
3 x Female 4mm Connectors
3 x Heat Shrink
12 x 4x16x1 Thrust Shims
1 x M8 Nut + Prop Washer
3 x Scorpion Stickers
Weight including packaging
580g
