Scorpion A2-10020-175kv
- Overview
- Technical specifications
The Scorpion A2 - Series line of motors was designed to be the most optimal and premier choice of motor for your freestyle or UAV airplane. We have achieved incredible performance through incredible efficiency. By optimizing the magnets in the rotor, and using the best quality 0.2mm thickness silicon steel stator sheets, and high temp enamel coated copper wire windings rated above 200C+, the performance and efficiency results are unlike anything we have seen before! Combined with a robust design which has been tested extensively by our world class team pilots for longevity and reliability, we feel this motor checks and exceeds all measurable categories!
The A2-10020-160kv was designed specifically for airplanes requiring a 120cc equivalent gas engine using 28" prop on 12s LIPO, or other airframes requiring up to 9500w of power.
Recommended Prop Selection :
For 12s - Scorpion 28x13 Carbon
Recommended ESC : Tribunus III 14-220A ESC SBEC

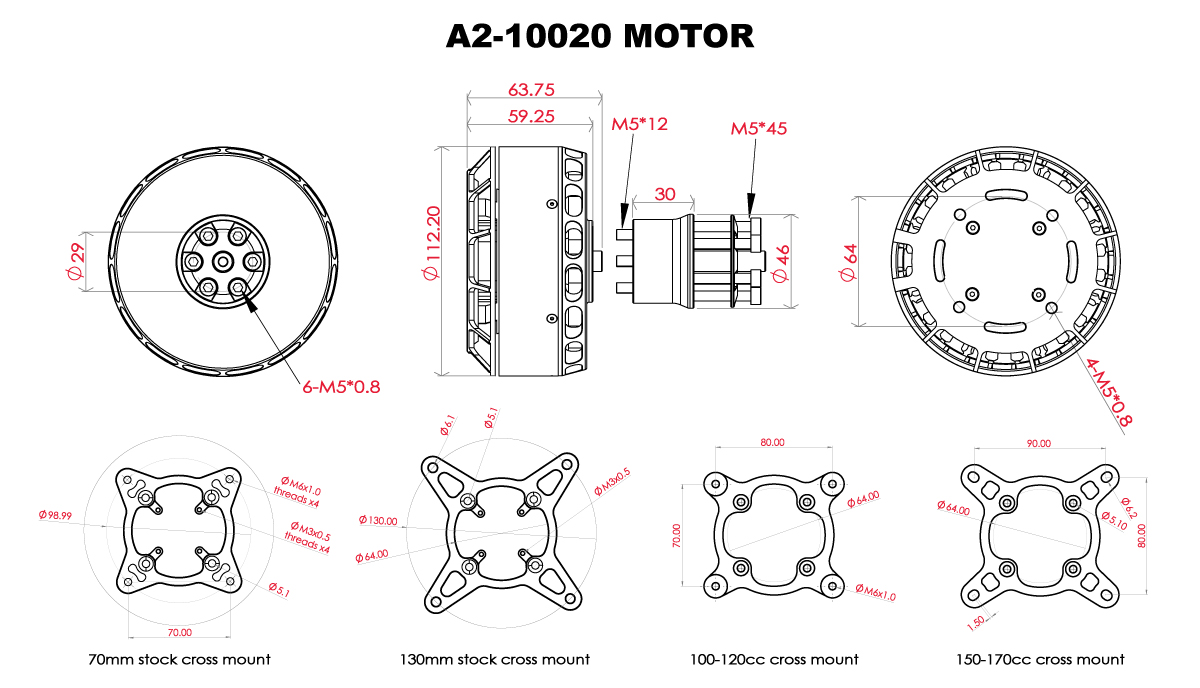

Full Dimension
Specifications
| Motor Kv | 175 RPM / Volt |
| Weight (Motor only) | 1406.8g (49.62 oz) |
| Weight (including mount + Prop mount accessories) | 1640.4g (57.86 oz) |
| Motor Body Dimensions | 112.2mm x 59.25mm (+30mm prop spacer) (4.42" x 2.33" (+ 1.18")) |
| External Shaft Diameter | 10mm |
| Continuous Current | 135A |
| Continuous Power | 6100 Watts |
| Peak Current* | 210A |
| Peak Power* | 9500 Watts |
| Max Rated Lipo Cell** | 12s |
| Stator Diameter | 100 mm (3.94 in) |
| Stator Thickness | 20 mm (0.79 in) |
| No. of Stator Arms | 24 |
| Magnet Poles | 28 |
| Motor Wind | xxxxx T xxxxxY |
| Motor Wire | xxx-Strand xxxxmm |
| No-Load Current (IO/15V) | xxx Amps |
| Motor Internal Resistance (phase-phase) | xx mΩ |
| Motor Inductance (phase-phase) @ 1khz | xxx µH |
| *Continuous Current subject to Power % reduction factors. Peak Power is for intermittent full throttle usage ranging from 10 - 180 seconds depending on use case and cooling. Check Scorpion Motor Manual for more information* | |
| **Higher Cell Count possible with smaller prop usage** | |
Included in the Box
1 x A2-10020 BLDC Motor
1 x A2-100 Cross Mount (choose at checkout)
1 x A2-100 (6x M5@29mm) Prop Mount
3 x Female 6mm Bullets
3 x Scorpion Stickers
1 x Accessory Hardware Pack
Weight including packaging
1g
