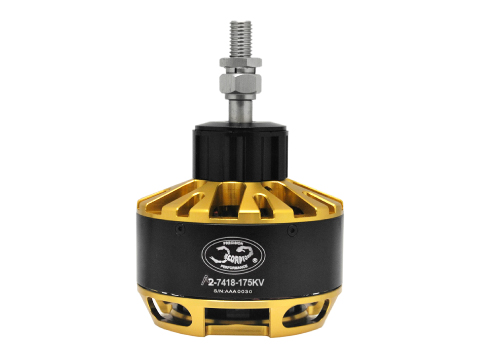

Scorpion A2-7418-175kv (60cc / 6000w / 14s)
Backorder (ship within 2 weeks)
Notify me when this item is back in stock
Product Description
The Scorpion A2 - Series line of motors was designed to be the most optimal and premier choice of motor for your freestyle or UAV airplane. We have achieved incredible performance through incredible efficiency. By optimizing the magnets in the rotor, and using the best quality 0.2mm thickness silicon steel stator sheets, and high temp enamel coated copper wire windings rated above 200C+, the performance and efficiency results are unlike anything we have seen before! Combined with a robust design which has been tested extensively by our world class team pilots for longevity and reliability, we feel this motor checks and exceeds all measurable categories!
The A2-7418-175kv was designed specifically for airplanes requiring a 60cc equivalent gas engine on 14s LIPO, or other airframes requiring up to 6000w of power.
Recommended Prop Selection :
For 14s - Scorpion 23x10 Carbon / 24x10 Carbon
For 12s - Scorpion 25x10 Carbon
Recommended ESC : Tribunus III 14-150A ESC SBEC
Specifications
| Motor Kv | 175 RPM / Volt |
| Weight (Motor only) | 822.6 (29.02 oz) |
| Weight (including mount + Prop mount accessories) | 987.2g (34.82 oz) |
| Motor Body Dimensions | 86.5mm x 56.5mm (+20mm prop spacer) (3.39" x 2.23" (+ 0.79")) |
| External Shaft Diameter | 10mm |
| Continuous Current | 75A |
| Continuous Power | 4000 Watts |
| Peak Current* | 110A |
| Peak Power* | 5900 Watts |
| Max Rated Lipo Cell** | 12s |
| Stator Diameter | 74 mm (2.91 in) |
| Stator Thickness | 18 mm (0.71 in) |
| No. of Stator Arms | 24 |
| Magnet Poles | 28 |
| Motor Wind | 10T + 11T 4Y |
| Motor Wire | 5-Strand 0.33mm |
| No-Load Current (IO/15V) | 1.34 Amps |
| Motor Internal Resistance (phase-phase) | 28.6 mΩ |
| Motor Inductance (phase-phase) @ 1khz | 21.9 µH |
| *Continuous Current subject to Power % reduction factors. Peak Power is for intermittent full throttle usage ranging from 10 - 180 seconds depending on use case and cooling. Check Scorpion Motor Manual for more information* | |
| **Higher Cell Count possible with smaller prop usage** | |
Included in the Box
1 x A2-7418 BLDC Motor
1 x A2-74 Cross Mount
1 x A2-74 Prop Mount
3 x Female 6mm Bullets
3 x Scorpion Stickers
1 x Accessory Hardware Pack
Weight including packaging
1g

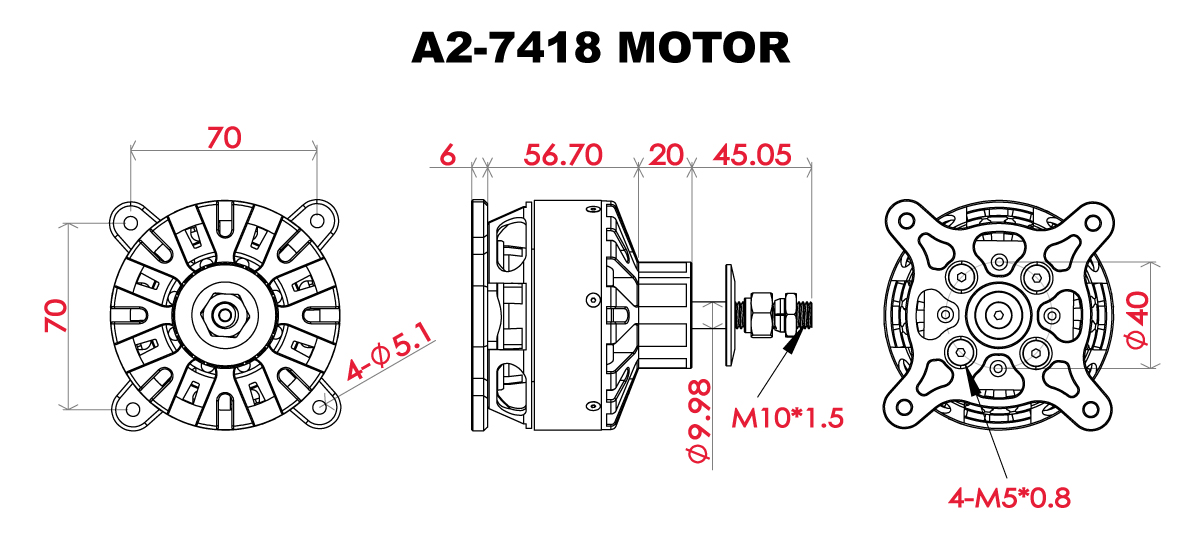

Full Dimension
View Scorpion A2-7418-175kv (60cc / 6000w / 14s) Full Dimension
