Scorpion A2-4222 PNP Combo (6s / 60-64" Acro / 20cc / 2550w)

[A2_4222_PNP]
$389.99
Choose Prop Color:

Backorder (ship within 2 weeks)

Notify me when this item is back in stock

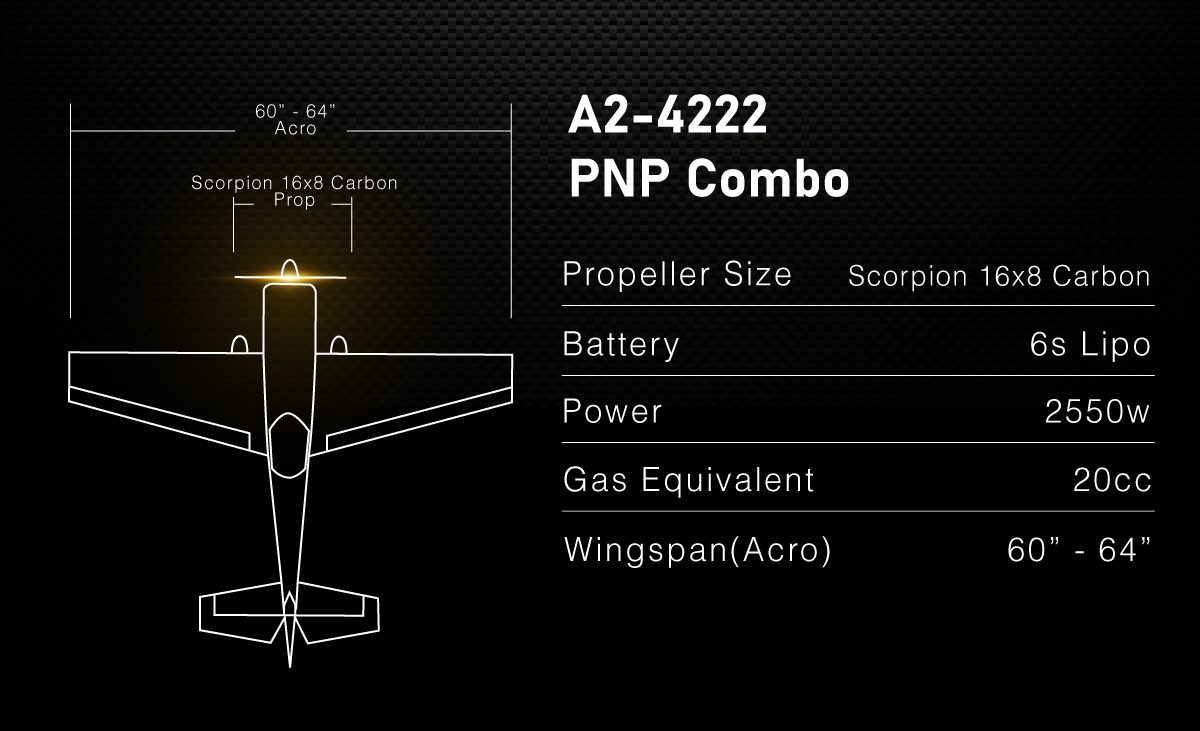

In combination with our new A2-Series motor line debut, we are also please to announce our new "PLUG-N-POWER" combo kits! We wanted to take the guess work out of Electric Power Systems, and provide our customers with a simple, convenient and reliable power system for their 60-64" Aerobatic airplanes, or other models requiring up to 2550w on 6s lipo. The A2-4222 PNP Combo is the solution. This pairs our high power and high efficiency A2-series motors with one of our suitably sized, preprogrammed, Tribunus III ESCs! Providing you with a tested, proven, and convenient power system combo, which is sure to provide you immense power, at the best efficiency! This PNP combo includes our perfectly matched 16x8 carbon fiber propeller, and is ready to easily bolt on, and give you the power you need, with the efficiency you want.

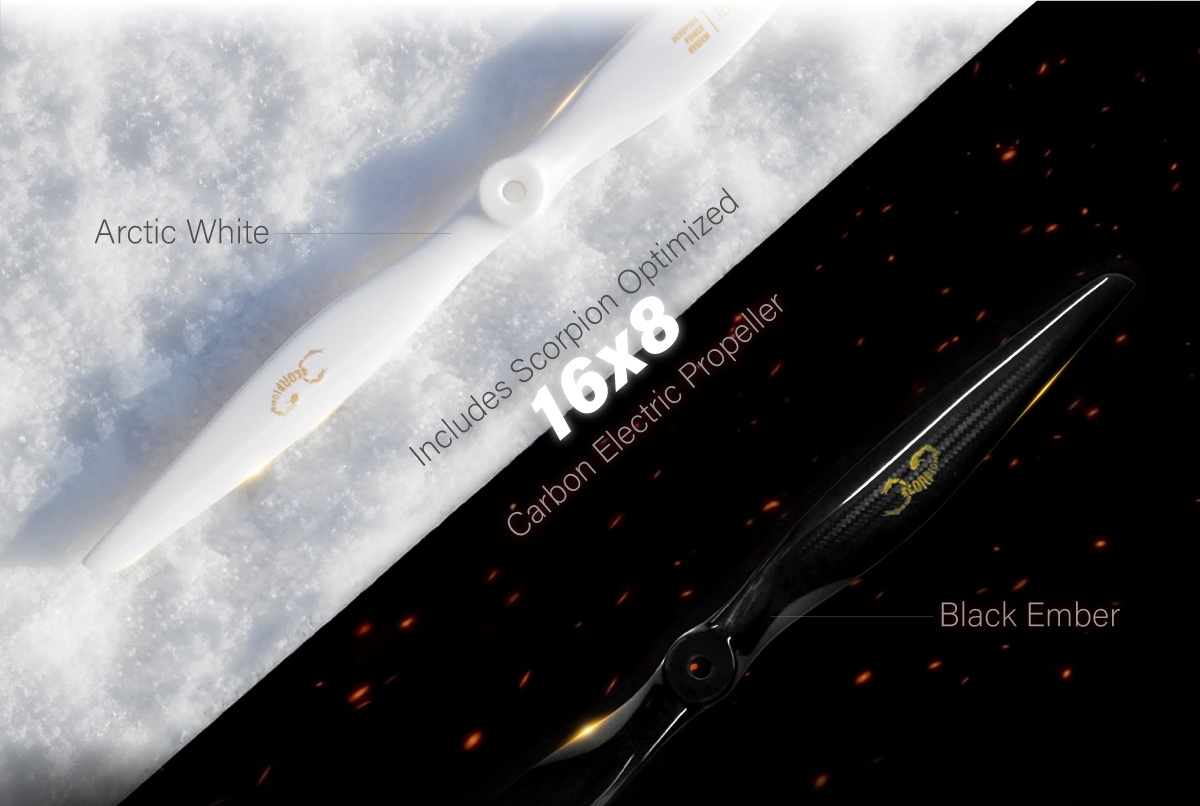

Included Propeller* : Scorpion 16x8 Carbon Electric

Recommended Battery : 6s 3500mah - 4500mah

***Note : Due to the high power of this motor, wood prop is not recommended. Other Carbon prop may function, but we can only guarantee the performance when using the official Scorpion 16x8 Carbon propeller which is custom designed to be a perfect fit. ***

Scorpion A2-4222 PNP Combo (6s / 60-64 Scorpion A2-4222 PNP Combo (6s / 60-64 Scorpion A2-4222 PNP Combo (6s / 60-64 Scorpion A2-4222 PNP Combo (6s / 60-64 Scorpion A2-4222 PNP Combo (6s / 60-64

Specifications

Total Power System Weight (Motor+ESC+Cross Mount+Prop) 516g (18.2 oz)



MOTOR SPECIFICATIONS :
Motor Kv 560 RPM / Volt
Weight (including mount + Prop mount accessories) 374.8g (13.22 oz)
Motor Body Dimensions 51mm x 46.9mm(+12.0mm prop spacer (1.99" x 1.85" (+0.47"))
External Shaft Diameter 8mm
Continuous Current 80A
Continuous Power 2000 Watts
Peak Current* 115A
Peak Power* 2550 Watts
Max Rated Lipo Cell 6s
Stator Arms 12
Magnet Poles 14



ESC SPECIFICATIONS :
Max Continuous Current 110 Amps
Peak Current 150Amps
Operating Voltage Range 11-26.1 Volts
BEC Output voltage*: OFF/5.1-12.1V Adjustable
Max Continuous BEC Output 10 Amps @ 8.1 V
Peak BEC Output 20 Amps/1s @ 8.1 V
Size 32.0 x 52.5 x 23.1 mm (1.26 x 2.07 x 0.91 in)
Mounting Tab Dimensions 16.0 (Battery Side) / 24.0mm (Phase Side) x 58.0mm (0.63 / 0.94 x 2.28in) / M2.5 Bolt
Weight (Without Connectors) 105g (3.70oz)
Drive frequency 8kHz - 32kHz
Cable gauge 12 AWG



* Continuous Current is rating at 100% throttle for 60 secons with 35m/s airflow.

Performance Charts

Scorpion A2-4222 PNP Combo (6s / 60-64 Scorpion A2-4222 PNP Combo (6s / 60-64 Scorpion A2-4222 PNP Combo (6s / 60-64 Scorpion A2-4222 PNP Combo (6s / 60-64

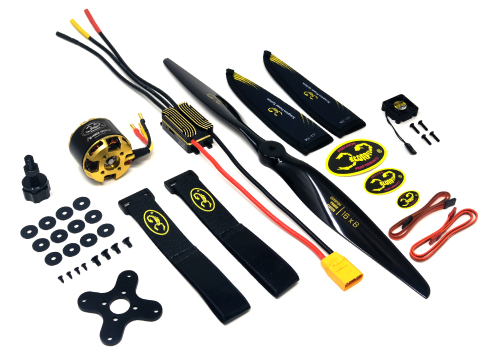

Included in the Box

1 x Scorpion A2-4222 BLDC Motor
1 x A-42 Stock Cross Mount
1 x Tribunus III 06-110A ESC
1 x 30mm Hi Speed Cooling Fan
2 x Scorpion 410mm ESC/ BEC Cables
2 x Scorpion L Lock Strap
3 x Scorpion Stickers
2 x M8 Prop Nut

Weight including packaging

1244g
