Scorpion A2-5017 PNP Combo (6s / 67-68" Acro / 25cc / 3150w)
Backorder (ship within 2 weeks)
Notify me when this item is back in stock
- Overview
- Technical specifications

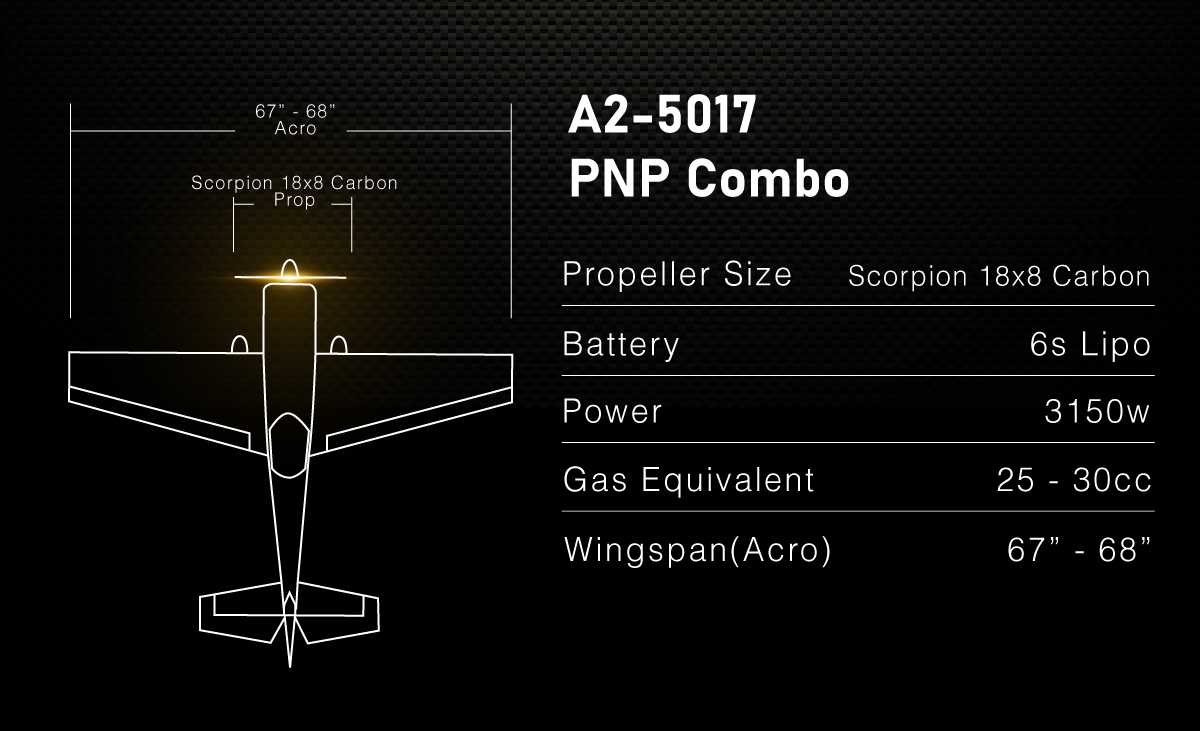

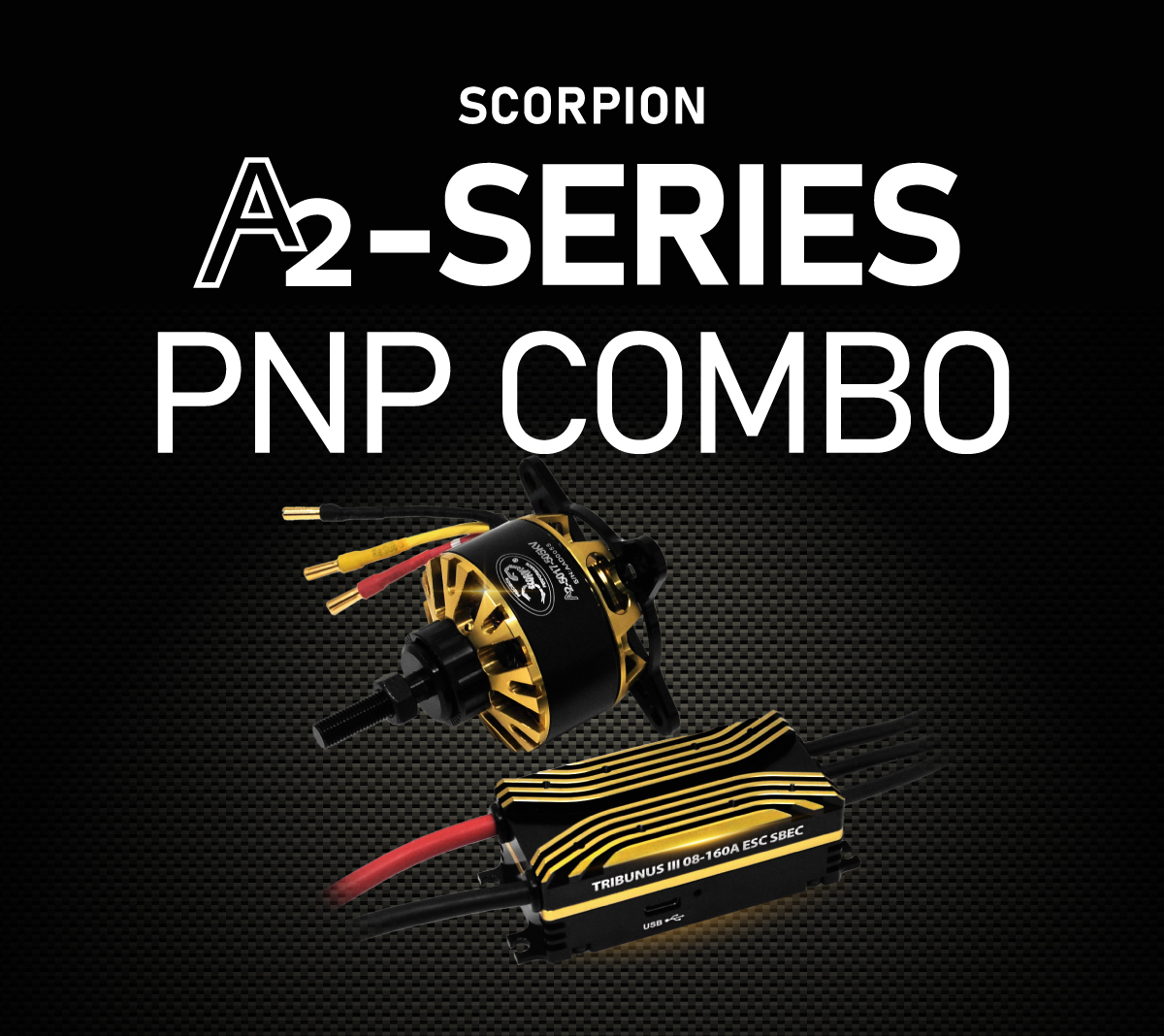

In combination with our new A2-Series motor line debut, we are also please to announce our new "PLUG-N-POWER" combo kits! We wanted to take the guess work out of Electric Power Systems, and provide our customers with a simple, convenient and reliable power system for their 67-68" Aerobatic airplanes, or other models requiring up to 3150w on 6s lipo. The A2-5017 PNP Combo is the solution. This pairs our high power and high efficiency A2-series motors with one of our suitably sized, preprogrammed, Tribunus III ESCs! Providing you with a tested, proven, and convenient power system combo, which is sure to provide you immense power, at the best efficiency! This PNP combo includes our perfectly matched 18x8 carbon fiber propeller, and is ready to easily bolt on, and give you the power you need, with the efficiency you want.

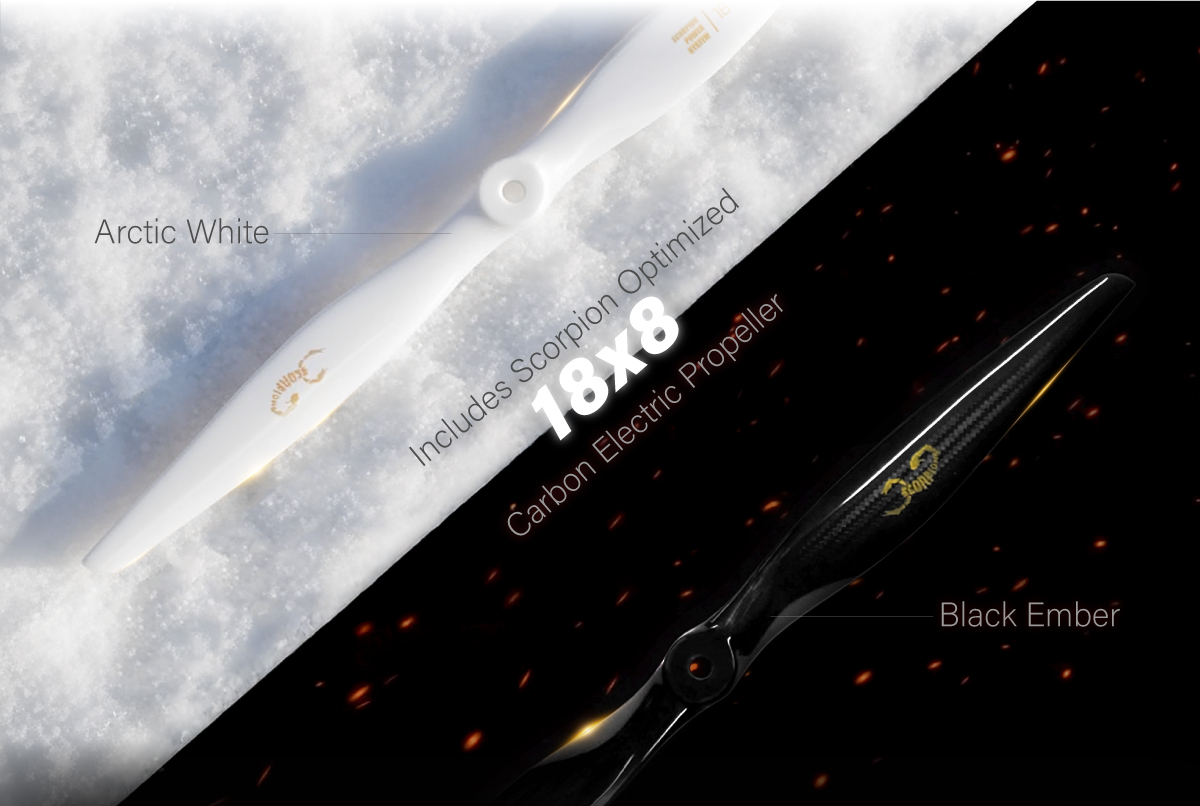

Included Propeller* : Scorpion 18x8 Carbon Electric
Recommended Battery : 6s 4500mah - 5500mah
*Note : Due to the high power of this motor, wood prop is not recommended. Other Carbon prop may function, but we can only guarantee the performance when using the official Scorpion 18x8 Carbon propeller which is custom designed to be a perfect fit.
Specifications
| Total Power System Weight (Motor+ESC+Cross Mount+Prop) | 680g (23.98 oz) |
|
|
| MOTOR SPECIFICATIONS : | |
| Motor Kv | 505 RPM / Volt |
| Weight (including mount + Prop mount accessories) | 414.6g (14.62 oz) |
| Motor Body Dimensions | 59.6mm x 43.9mm (+10.0mm prop spacer) (2.35" x 1.73" (+ 0.39") ) |
| External Shaft Diameter | 8mm |
| Continuous Current | 90A |
| Continuous Power | 2250 Watts |
| Peak Current* | 140A |
| Peak Power* | 3150 Watts |
| Max Rated Lipo Cell** | 6s |
| Stator Arms | 12 |
| Magnet Poles | 14 |
|
|
| ESC SPECIFICATIONS : | |
| Max Continuous Current | 160 Amps |
| Peak Current | 200 Amps |
| Operating Voltage Range | 11-35.0 Volts |
| BEC Output voltage: | 5.1V to 12.1V adjustable |
| Max Continuous BEC Output | 15 Amps @ 8.1 V |
| Peak BEC Output | 30 Amps/1s @ 8.1 V |
| On Resistance | 0.33mOhms * 2 |
| ESC Body Size | 39.0 x 79.0 x 29.0 mm (1.53 x 3.11 x 1.14 in) |
| Mounting Tab Dimensions | 24.0 x 88.0mm ( 0.944 x 3.46 in) / M3 Bolt |
| Weight (without wires) | 165g (5.82oz) |
| Weight (with wires) | 205g ( 7.23oz) |
| Drive frequency | 8kHz - 32kHz Dynamic Frequency |
| Cable gauge | 10 AWG (Batt Side) / 12awg (Phase Side) |
| Max Electrical RPM | 240,000RPM |
|
|
| * Continuous Current is rating at 100% throttle for 60 secons with 35m/s airflow. | |
Performance Charts

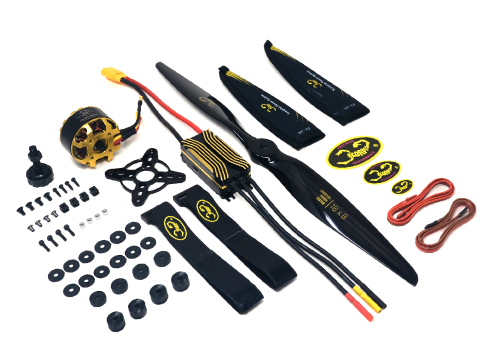

Included in the Box
1 x Scorpion A2-5015 BLDC Motor

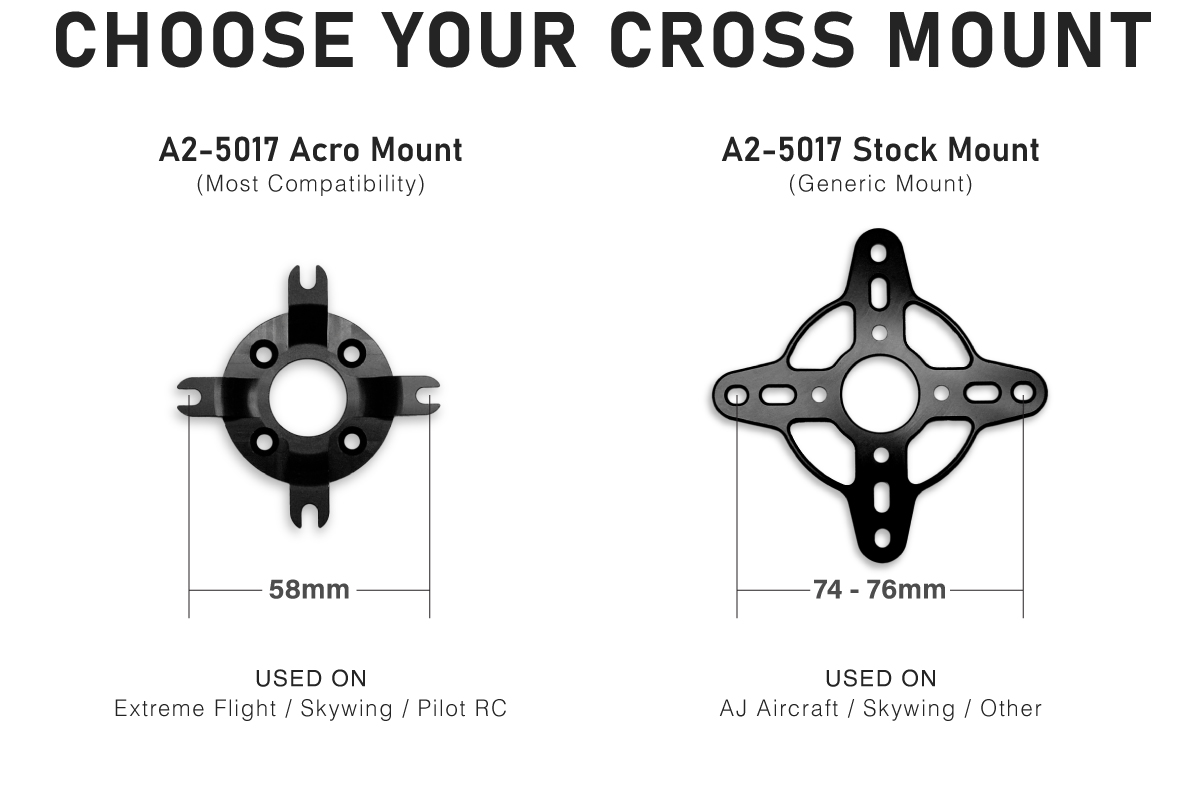

1 x A-50 Cross Mount (choose standard or Acro)
1 x Tribunus III 08-160A ESC
2 x Scorpion 600mm ESC/ BEC Cables
2 x Scorpion L Lock Strap
3 x Scorpion Stickers
2 x M8 Prop Nut
Weight including packaging
1455g
