Scorpion A2-6518 PNP Combo (12s / 40cc / 5500w)
Backorder (ship within 2 weeks)
Notify me when this item is back in stock
- Overview
- Technical specifications
In combination with our new A2-Series motor line debut, we are also please to announce our new "PLUG-N-POWER" combo kits! We wanted to take the guess work out of Electric Power Systems, and provide our customers with a simple, convenient and reliable power system for their 35-40cc sized airplanes commonly used on 74" - 78" airframes. The A2-6518 PNP Combo is the solution. This pairs our high power and high efficiency A2-series motors with one of our suitably sized, preprogrammed, Tribunus III ESCs! Providing you with a tested, proven, and convenient power system combo, which is sure to provide you immense power, at the best efficiency! This PNP combo comes with gas equivalent cross mount and stadnoffs so it is ready to easily bolt on, and give you the power you need, with the efficiency you want.
Recommended Propeller* : Scorpion 22x10 Carbon Electric
Recommended Battery : 12s 4000mah - 5000mah
*Note : Due to the high power of this motor, wood prop is not recommended. Other Carbon prop may function, but we can only guarantee the performance when using the official Scorpion 22x10 Carbon propeller which is custom designed to be a perfect fit.
Specifications
| Total Power System Weight (Motor+ESC+Cross Mount+standoffs) | 1147.3 (40.47 oz) |
|
|
| MOTOR SPECIFICATIONS : | |
| Motor Kv | 210 RPM / Volt |
| Weight (Prop mount / Cross mount) | 827.4g (29.19 oz) |
| Motor Body Dimensions | 77.1 mm x 54.5mm (+18mm prop spacer) (3.03" x 2.14" (+ 0.71")) |
| External Shaft Diameter | 10mm |
| Continuous Current | 85A |
| Continuous Power | 3800 Watts |
| Peak Current* | 120A |
| Peak Power* | 5500 Watts |
| Max Rated Lipo Cell | 12s |
| Stator Arms | 12 |
| Magnet Poles | 14 |
| Motor Wind | 9T Delta |
| Motor Wire | 13-Strand x 0.41mm |
| No-Load Current (IO/20V) | 1.78 Amps |
| Motor Internal Resistance | 21.5 mΩ |
| Motor Inductance (phase-phase) @ 1khz | 47.47 µH |
|
|
| ESC SPECIFICATIONS : | |
| Max Continuous Current | 120 Amps |
| Peak Current | 150Amps |
| Operating Voltage Range | 12-61 Volts |
| BEC Output voltage: | 5.1 - 12.1V adjustable (8.4 as default) |
| Max Continuous BEC Output | 10 Amps @ 8.1 V |
| Peak BEC Output | 30 Amps/1s @ 8.1 V |
| Size | 39.4 x 79.4 x 23.5 mm (1.55 x 3.12 x 0.92") |
| Weight (Without Connectors) | 132g (4.65oz) |
| Weight (With Connectors) | 177.2g (6.25oz) |
| Drive frequency | 8kHz - 32kHz |
| Cable gauge | 12 AWG |
| * Continuous Current is rating at 100% throttle for 60 secons with 35m/s airflow. | |

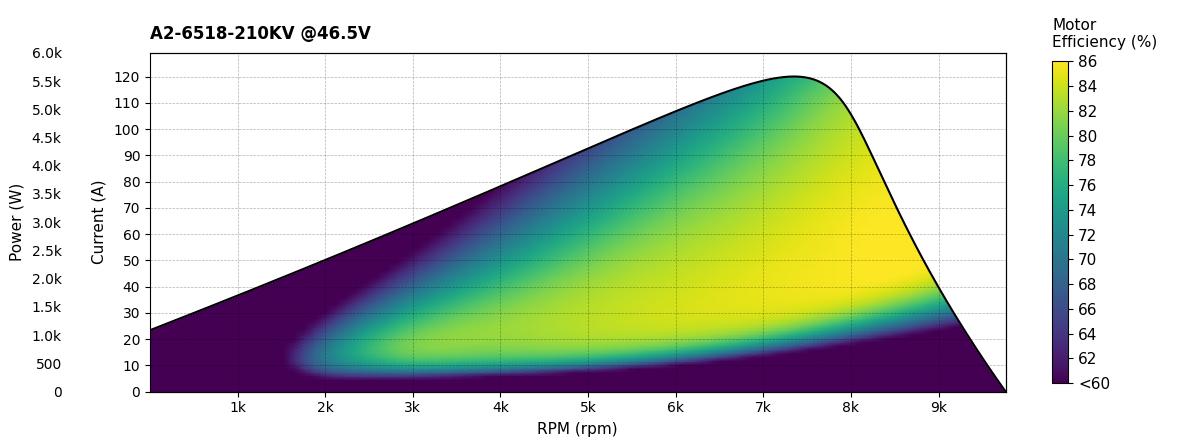

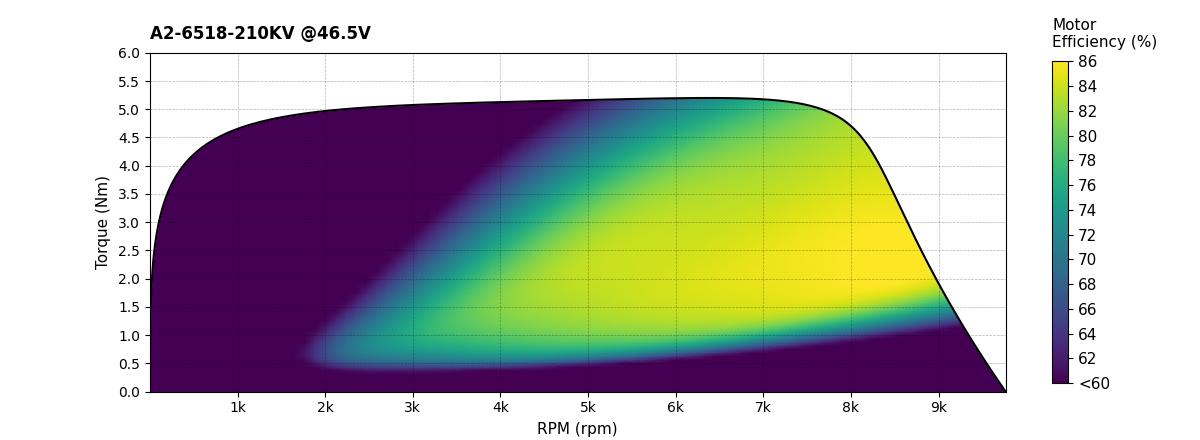

Performance Charts

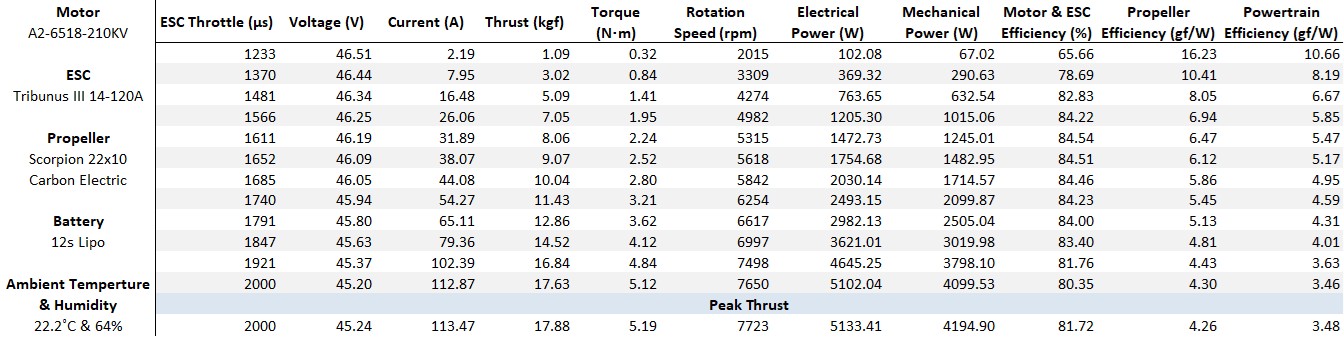

kv-46.5v-22x10-kg_test_table.jpg)

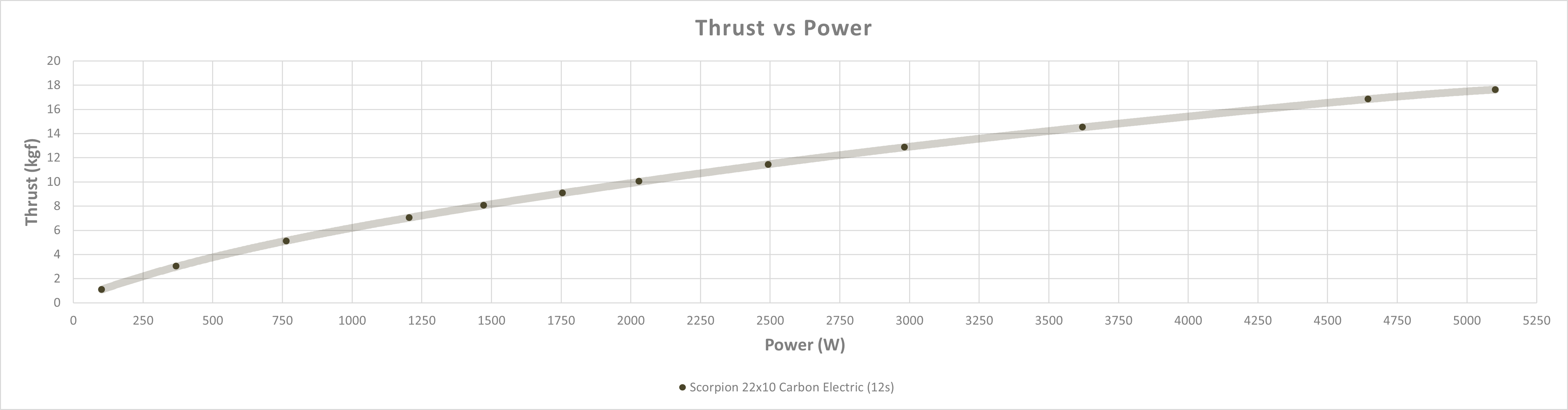

kv-46.5v-22x10-kg_test_thrust_vs_power.jpg)

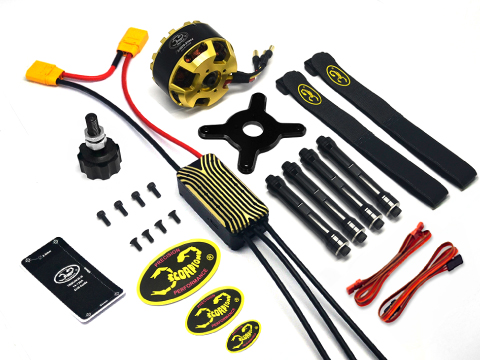

Included in the Box
1 x Scorpion A2-6518 BLDC Motor
1 x A2- 50/65 Cross Mount (30cc-40cc)
1 x A2-Series Standoff Set (30cc-40cc)
1 x Tribunus III 14-120A ESC
2 x Scorpion 600mm ESC/ BEC Cables
2 x Scorpion XL Lock Strap
3 x Scorpion Stickers
1 x ESC Drill Guide
2 x M10 Prop Nut + Lock Nut
Weight including packaging
1704g
