Scorpion A2-7418 PNP Combo (12s / 60cc / 5900w)
- Overview
- Technical specifications

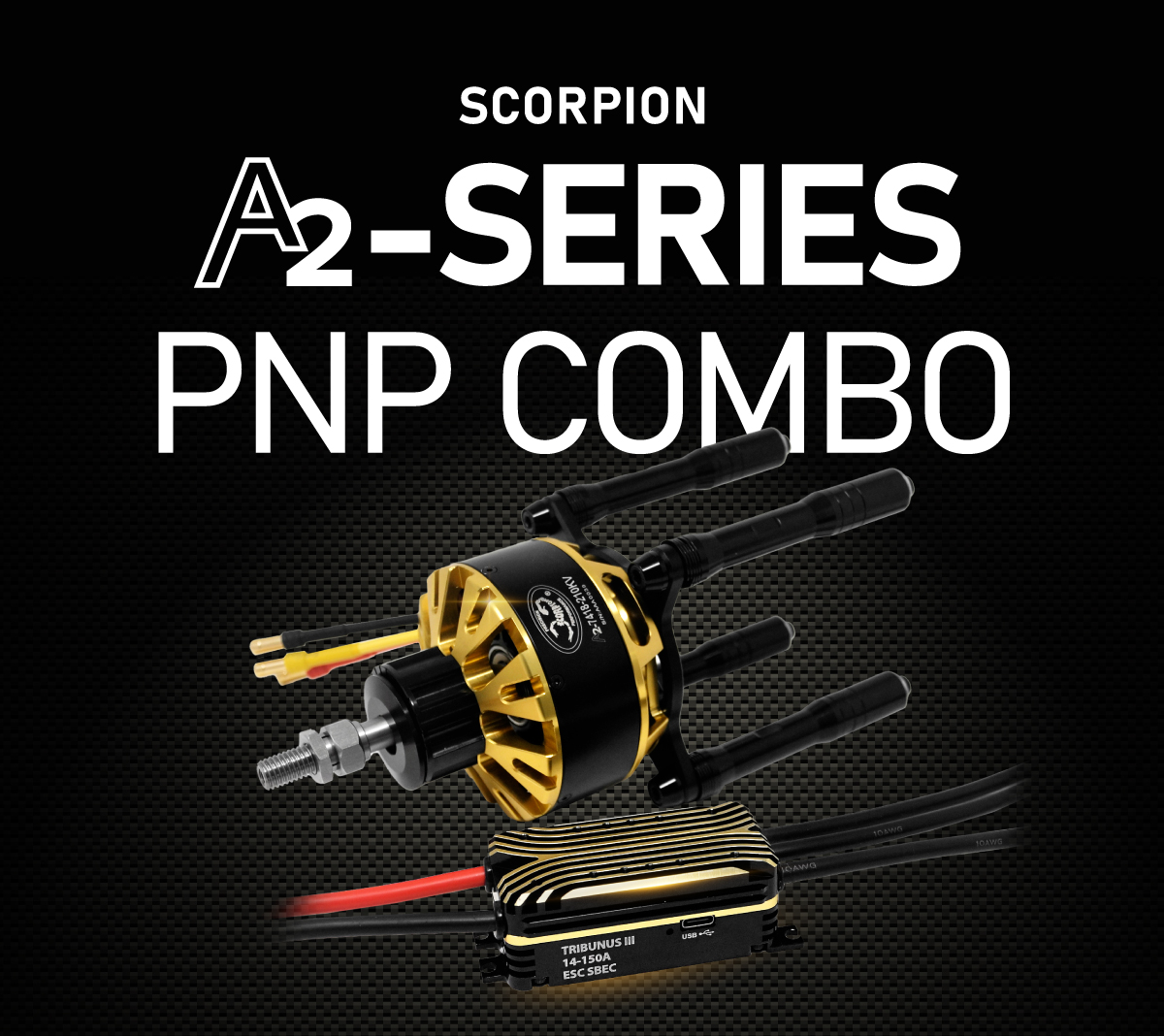

In combination with our new A2-Series motor line debut, we are also please to announce our new "PLUG-N-POWER" combo kits! We wanted to take the guess work out of Electric Power Systems, and provide our customers with a simple, convenient and reliable power system for their 60cc sized airplanes commonly used on 81" - 91" airframes. The A2-7418 PNP Combo is the solution. This pairs our high power and high efficiency A2-series motors with one of our suitably sized, preprogrammed, Tribunus III ESCs! Providing you with a tested, proven, and convenient power system combo, which is sure to provide you immense power, at the best efficiency! This PNP combo comes with gas equivalent cross mount and standoffs so it is ready to easily bolt on, and give you the power you need, with the efficiency you want.

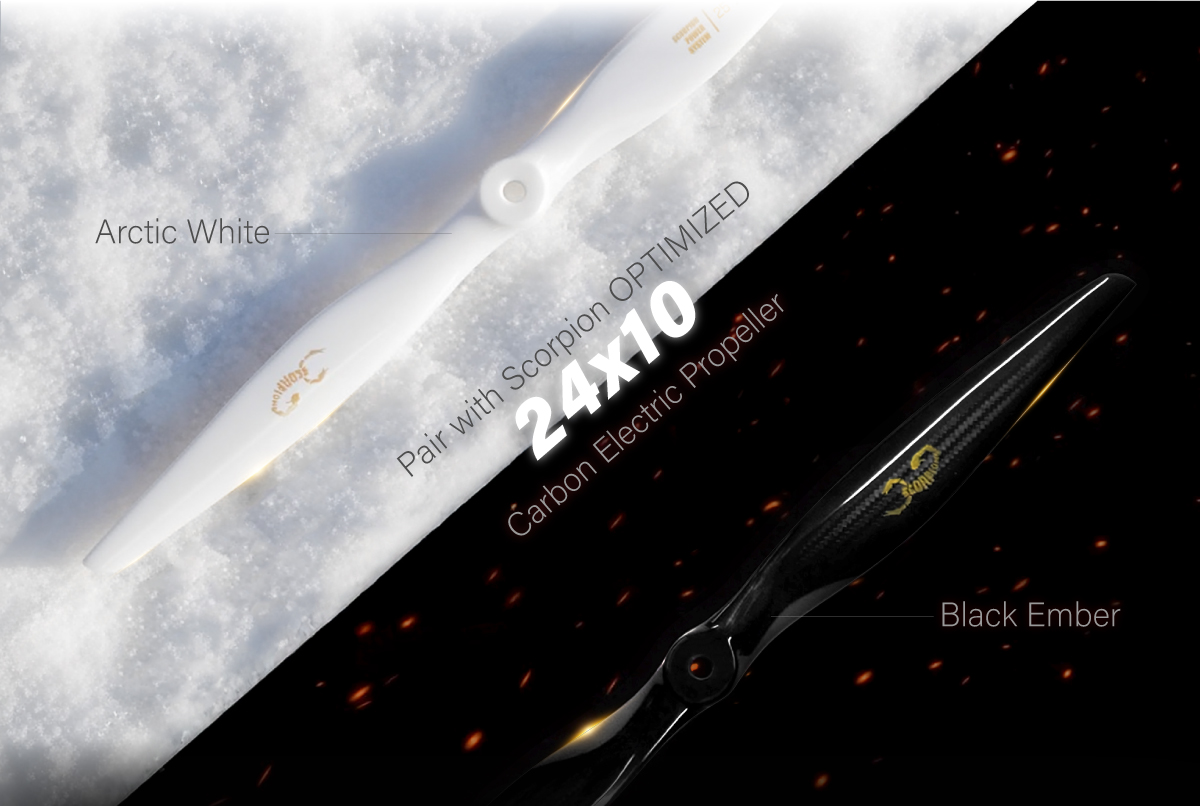

Recommended Propeller* : Scorpion 24x10 Carbon Electric / 23x10 Carbon
Recommended Battery : 12s 5000mah - 6000mah
*Note : Due to the high power of this motor, wood prop is not recommended. Other Carbon prop may function, but we can only guarantee the performance when using the official Scorpion 24x10 Carbon propeller which is custom designed to be a perfect fit.
Specifications
| Total Power System Weight (Motor+ESC+Cross Mount+standoffs) | 1465.6g (51.70 oz) |
|
|
| MOTOR SPECIFICATIONS : | |
| Motor Kv | 210 RPM / Volt |
| Weight (including mount + Prop mount accessories) | 998.4g (35.2 oz) |
| Motor Body Dimensions | 86.5mm x 56.5mm (+20mm prop spacer) (3.41" x 2.22" (+ 0.79")) |
| External Shaft Diameter | 10mm |
| Continuous Current | 85A |
| Continuous Power | 4000 Watts |
| Peak Current* | 130A |
| Peak Power* | 5900 Watts |
| Max Rated Lipo Cell** | 12s |
| Stator Arms | 24 |
| Magnet Poles | 28 |
|
|
| ESC SPECIFICATIONS : | |
| Max Continuous Current | 150 Amps |
| Peak Current | 200 Amps |
| Operating Voltage Range | 12 - 61.0 Volts |
| BEC Output voltage: | 5.1V to 12.1V adjustable (disabled as default setting on PNP combo) |
| Max Continuous BEC Output | 15 Amps @ 8.1 V |
| Peak BEC Output | 30 Amps/1s @ 8.1 V |
| On Resistance | 0.6mOhms * 2 |
| ESC Body Size | 40.0 x 77.1 x 29.9 mm (1.58 x 3.03 x 1.18 in) |
| Mounting Tab Dimensions | 16.0 (Battery Side) / 28.0 (Phase Side) x 86.0mm ( 0.63 / 1.10 x 3.38 in) / M3 Bolt |
| Weight (With wires) | 218g ( 7.69oz) |
| Drive frequency | 8kHz - 32kHz |
Performance Charts

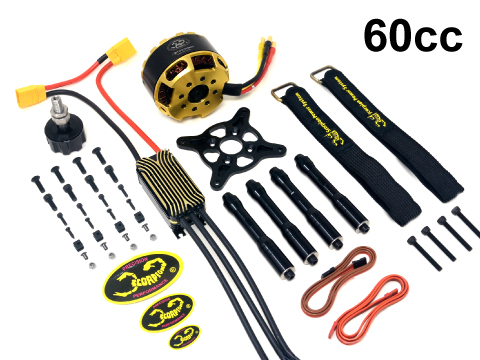

Included in the Box
1 x Scorpion A2-7418 BLDC Motor
1 x A2-74 Cross Mount (60-70cc)
1 x A2-Series Standoff Set (60-70cc)
1 x Tribunus III 14-150A ESC
2 x Scorpion 600mm ESC/ BEC Cables
2 x Scorpion Heave Duty XL Lock Strap
3 x Scorpion Stickers
2 x M10 Prop Nut + Lock Nut
Weight including packaging
2061g
