Scorpion A-3017 PNP Combo (6s / 30E-32E/ 962w)

[A_3017_PNP_6s]
$ 249.99
In stock
Optional accessories: Scorpion V Link II Cable
Data chart

Product Description

In combination with our new A-Series motor line debut, we are also please to announce our new "PLUG-N-POWER" combo kits! This pairs our high power and high efficiency A-series motors with one of our suitably sized, pre-programmed, and pre soldered Tribunus ESCs! Providing you with a tested, proven, and convenient power system combo which is sure to provide you immense power, at the best efficiency!

With 3D flight, low end torque and acceleration are crucial. Many companies opted to go with a “large diameter / thin height / high pole count motors" to try and get increased torque / acceleration. However doing this has the side effect of very large physical size and Lower Peak Efficiency. We at Scorpion have opted to stay with our proven 12N14P stator design. We have fine-tuned the magnets in the rotor to have amazing Peak Efficiency, and amazing Top End Power. Then, when used in combination with our Tribunus ESC, which has our proprietary drive algorithm which has unique switching pattern, along with features such as dynamic timing and dynamic frequency, we are still able to attain amazing low-end torque and acceleration. With the combination of the 2, we get “the best of both worlds” in the sense we have amazing peak Efficiency and Power with our stator design, and amazing low-end torque from the ESC side. Additionally, physically speaking our motors are similar length, with a much smaller outer diameter then other designs, which can be easier to fit inside cowls or fuselages of your airplane or UAV.

This specific A-3017 PNP Combo (6s), is designed for 6s powered 48" Acrobatic Airplanes, and UAV's requiring up to 962w of power with 3.5kg+ of thrust. It comes with our A-3017-600kv motor, pre programmed and pre-soldered Tribunus 06-80A ESC and a custom Scorpion Gold Metallic painted 13x6 propeller. This PNP combo is sure to give you the power you need, with the efficiency you want, all while making your airplane standout from the crowd

Acrobatic Weight Range (600kv) - : 1.3kg - 2.18kg (46oz - 77oz)

Sport / UAV (single engine) Weight Range (600kv) - : 2.3kg - 5.03kg (81.1oz - 177.6oz)



Recommended Battery Size - : 6s (22.2v) 1400-2000mah Lipo



The First Ever from Scorpion! Scorpion A-3017 PNP Combo (4s or 6s / 30E-32E / 962w)

Scorpion Power System - A-3017 {Official Promo Video}

Scorpion A-3017 PNP Combo (6s / 30E-32E/ 962w)

Specifications

MOTOR :
Motor Kv 600 RPM / Volt
Weight (including mount + accessories) 154g (5.43 oz)
Motor Body Dimensions 36.60 mm x 36.5mm (1.44" x 1.44")
External Shaft Diameter 5.98mm
Continuous Current 25A
Continuous Power 555 Watts
Peak Current 43A
Peak Power 962 Watts
Max Rated Lipo Cell** 6s
No. of Stator Arms 12
Magnet Poles 14



ESC :
Max Continuous Current 80 Amps
Peak Current 100Amps
Operating Voltage Range 11-26.1 Volts
BEC Output voltage: 5.1V to 7.1V adjustable.
Max Continuous BEC Output 8 Amps @ 7.1 V
Max BEC Output 12A pules
Size 47.1 x 31 x 20 mm (1.85 x 1.22 x 0.79 in)
Weight (Without Connectors) 56g (1.98 oz)
Drive frequency 8kHz - 32kHz

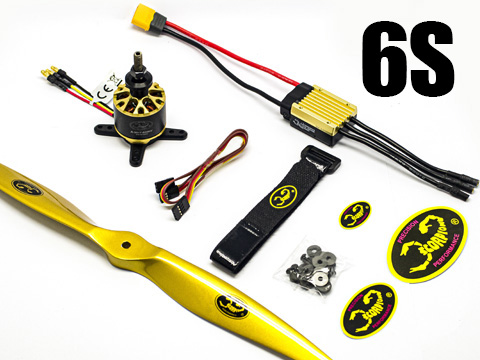

Included in the Box

1 x Scorpion A-3017-600kv
1 x Tribunus 06-80A ESC SBEC (pre soldered w/ XT60)
1 x Scorpion 13x6 Metallic Gold Painted Prop
1 x Scorpion M Lock Strap
3 x Scorpion Stickers
16 x 3x10x1mm thrust spacing washers
4 x M3x10 moutning screws
4 x M3x16 mounting screws

Weight including packaging

594g

Full Dimension

View Scorpion A-3017 PNP Combo (6s / 30E-32E/ 962w) Full Dimension
