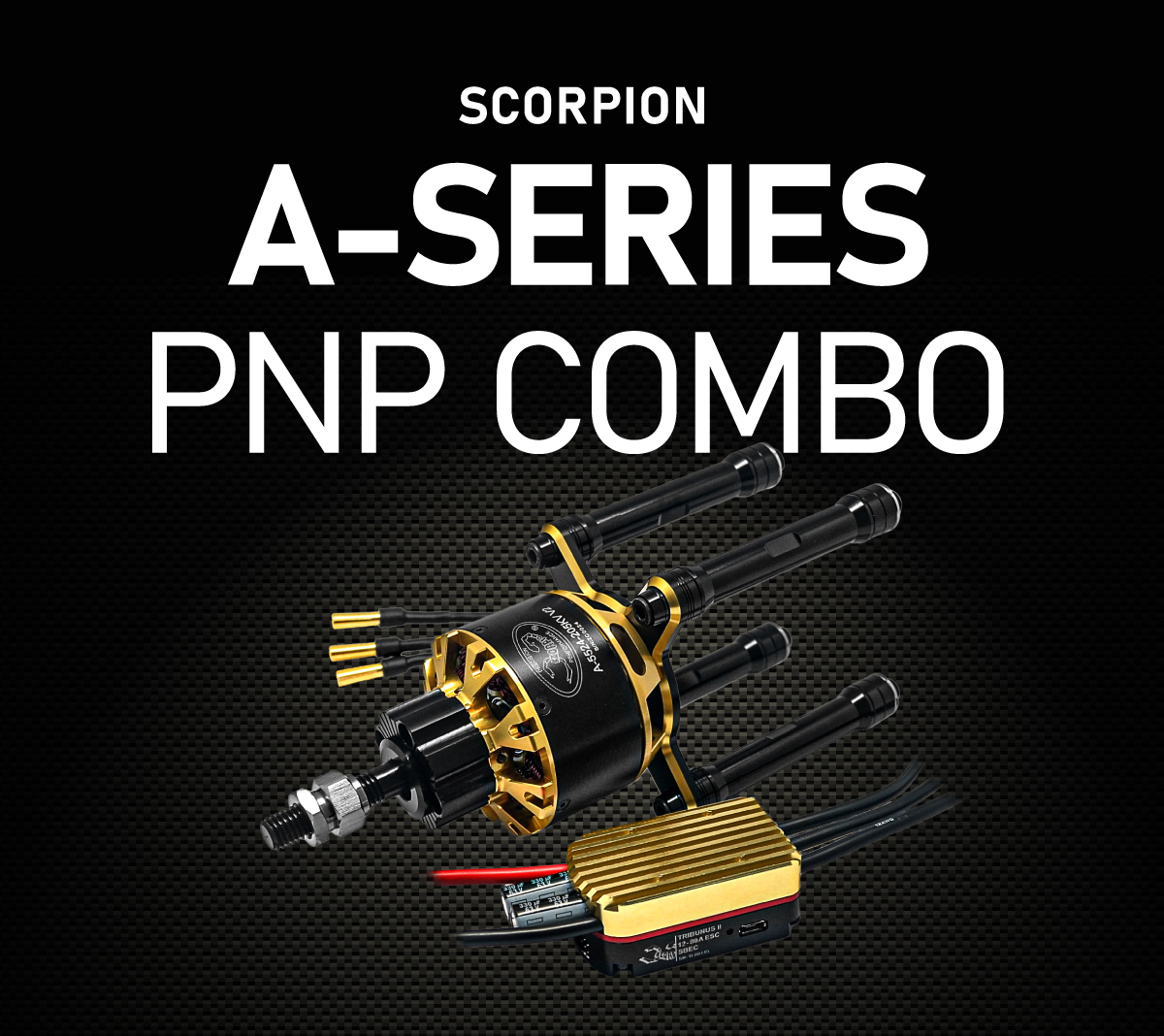

Scorpion A-5524 PNP Combo (12s / 35cc-40cc / 4662w)

[A_5524_PNP]
$ 749.99
In stock

In combination with our new A-Series motor line debut, we are also please to announce our new "PLUG-N-POWER" combo kits! We wanted to take the guess work, and customization out of using Giant Scale Electric Power Systems, and provide our customers with a simple, convenient and reliable power system for their 35cc-40cc sized airplanes. The A-5524 PNP Combo is the solution. This pairs our high power and high efficiency A-series motors along with our gas sized equivalent A-series Standoff and Cross Mount, with one of our suitably sized, pre-programmed, Tribunus ESCs! Providing you with a tested, proven, and convenient power system combo, which is sure to provide you immense power, at the best efficiency!

With 3D flight, low end torque and acceleration are crucial. Many companies opted to go with a “large diameter / thin height / high pole count motors" to try and get increased torque / acceleration. However doing this has the side effect of very large physical size and Lower Peak Efficiency. We at Scorpion have opted to stay with our proven 12N14P stator design. We have fine-tuned the magnets in the rotor to have amazing Peak Efficiency, and amazing Top End Power. Then, when used in combination with our Tribunus ESC, which has our proprietary drive algorithm which has unique switching pattern, along with features such as dynamic timing and dynamic frequency, we are still able to attain amazing low-end torque and acceleration. With the combination of the 2, we get “the best of both worlds” in the sense we have amazing peak Efficiency and Power with our stator design, and amazing low-end torque from the ESC side. Additionally, physically speaking our motors are similar length, with a much smaller outer diameter then other designs, which can be easier to fit inside cowls or fuselages of your airplane or UAV.

Scorpion A-5524 PNP Combo (12s / 35cc-40cc / 4662w) features Scorpion A-5524 PNP Combo (12s / 35cc-40cc / 4662w) features Scorpion A-5524 PNP Combo (12s / 35cc-40cc / 4662w) features Scorpion A-5524 PNP Combo (12s / 35cc-40cc / 4662w) features Scorpion A-5524 PNP Combo (12s / 35cc-40cc / 4662w) features Scorpion A-5524 PNP Combo (12s / 35cc-40cc / 4662w) features

Full Dimension

Scorpion A-5524 PNP Combo (12s / 35cc-40cc / 4662w) Full Dimension

Specifications

Total Power System Weight (Motor+ESC+Cross Mount+standoffs) 1045 (36.86 oz)



MOTOR SPECIFICATIONS :
Motor Kv 205 RPM / Volt
Weight (including Prop mount accessories) 655g (23.01oz)
Motor Body Dimensions 65.0mm x 56.0mm+18mm prop spacer (2.56" x 2.20"+0.71")
External Shaft Diameter 8mm
Continuous Current 80A
Continuous Power 3552 Watts
Peak Current* 105A
Peak Power* 4662 Watts
Max Rated Lipo Cell 12s
Stator Arms 12
Magnet Poles 14



ESC SPECIFICATIONS :
Max Continuous Current 80 Amps
Peak Current 120Amps
Operating Voltage Range 14-52 Volts
BEC Output voltage: OFF/5.1/6.1/7.1/8.1
Max Continuous BEC Output 10 Amps @ 8.1 V
Peak BEC Output 30 Amps/1s @ 8.1 V
Size 76.7 x 36.5 x 25.4 mm (3.02 x 1.44 x 1 in)
Weight (Without Connectors) 144g (5.08oz)
Drive frequency 8kHz - 32kHz
Cable gauge 12 AWG
*Our ratings are classified as TRUTHFUL. Continuous Current / Power correlates to actual sustainable power levels. Peak Power is for intermittent full throttle usage ranging from 5 - 60 seconds depending on use case and cooling*

Performance Charts

Scorpion A-5524 PNP Combo (12s / 35cc-40cc / 4662w) Data chart Scorpion A-5524 PNP Combo (12s / 35cc-40cc / 4662w) Data chart Scorpion A-5524 PNP Combo (12s / 35cc-40cc / 4662w) Data chart Scorpion A-5524 PNP Combo (12s / 35cc-40cc / 4662w) Data chart Scorpion A-5524 PNP Combo (12s / 35cc-40cc / 4662w) Data chart Scorpion A-5524 PNP Combo (12s / 35cc-40cc / 4662w) Data chart

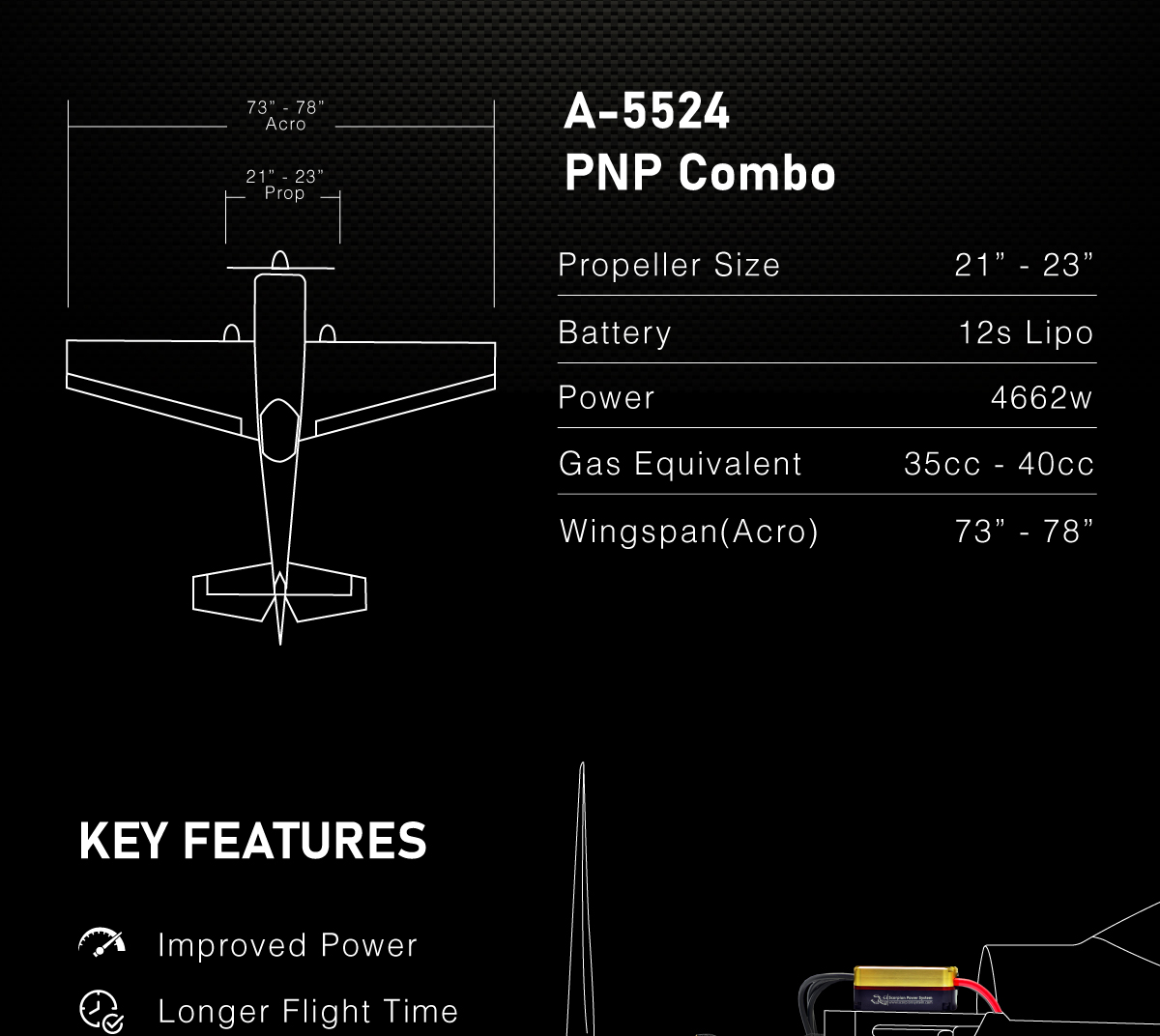

Use Case Applications

Included in the Box

1 x Scorpion A-5524 BLDC Motor
1 x A-55 Cross Mount (30cc-40cc) (Mounted)
1 x A-Series Standoff Set (30cc-76cc) (Mounted)
1 x Tribunus II 12-80A ESC
2 x Scorpion 410mm ESC/ BEC Cables
3 x Scorpion Stickers
3 x Prop Bore Spacers (8x10x 4/4/10)
2 x M8 Nuts
1 x Scorpion Backup Guard II (power board)

Weight including packaging

1455g

A-5524 Official Promo Video



Orel Zohar - A-5524 PNP Combo - Pilot RC 73" Laser (12s)
