SII-5525 Shaft Kit

[SII_5525_Shaft]
$ 30.29
In stock

Product Description

The Scorpion SII-5525 series of motors are built with 8mm hardened steel shafts that will last through countless hours of flying fun, but occasionally, on a "Less than Perfect" landing, you may bend or break one. For these occasions, we offer factory replacement shafts for the SII-5525 Scorpion Motors.

The shaft for the SII-5525 series airplane motors measures 8mm in diameter, and is 105.5mm in long. The shaft kit will also fit other brushless motors that require a 8mm shaft of this length. The shafts can be cut shorter with a Dremel tool and a cut-off wheel if necessary to fit other motors.

Note: The shafts in the Scorpion motors are a slight press fit into the aluminum front housing. The shafts will not just slide out when the metric screw are removed. They need to be pressed out in a bearing press, or in a drill press, with the front housing of the motor supported in a block of wood to prevent warping the front housing.

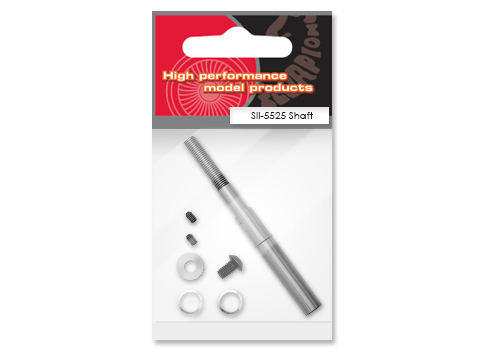

Included in the Box

1x SII-5525 Motor Shaft
1x Metric Screw
1x Washer
2x Set Screw
2x Spring Washer

Weight including packaging

50g

Full Dimension

View SII-5525 Shaft Kit Full Dimension
