Scorpion HK5-5530-255kv 8x40 shaft
[HK5_5530_255]
$439.99
In stock
- Overview
- Technical specifications

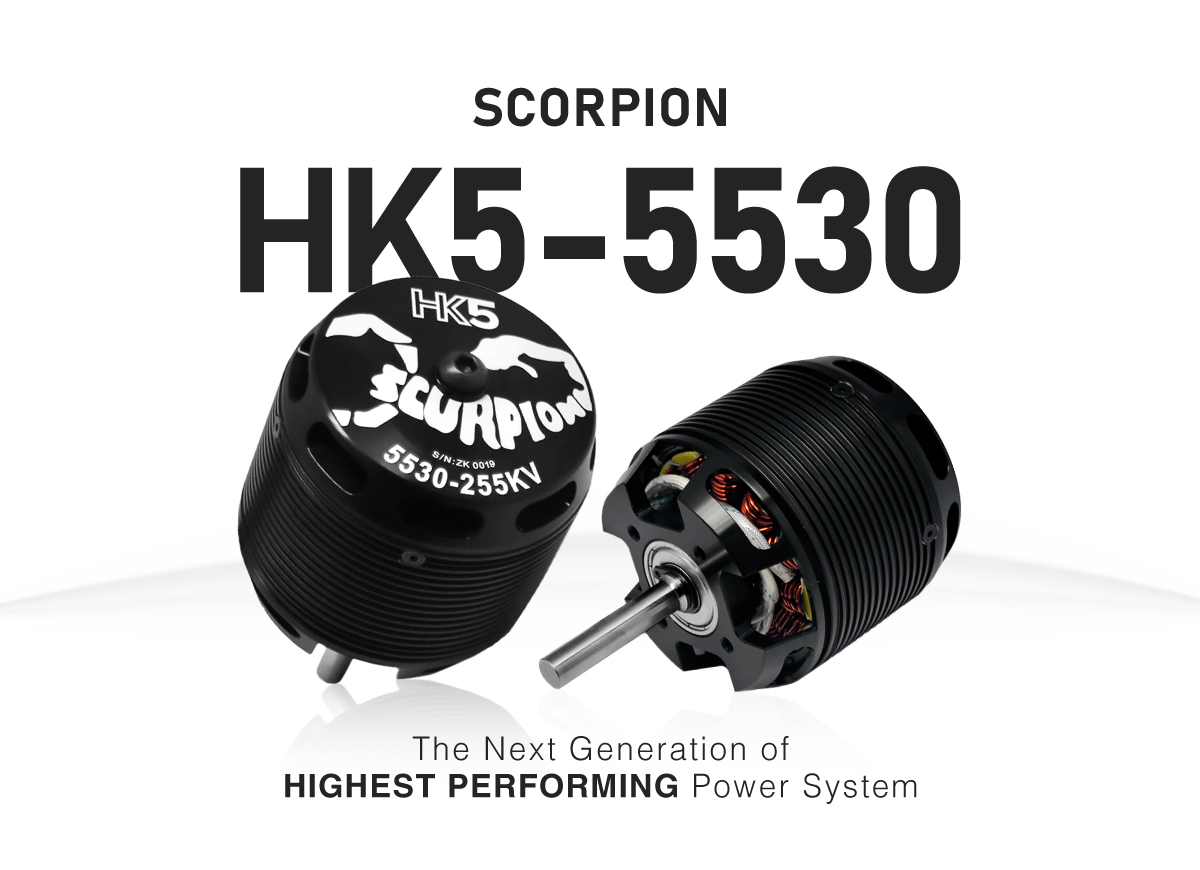

We introduce the fifth generation of Scorpion's renowned and award winning "HK - Series" motors. The Scorpion "HK5 - Series"

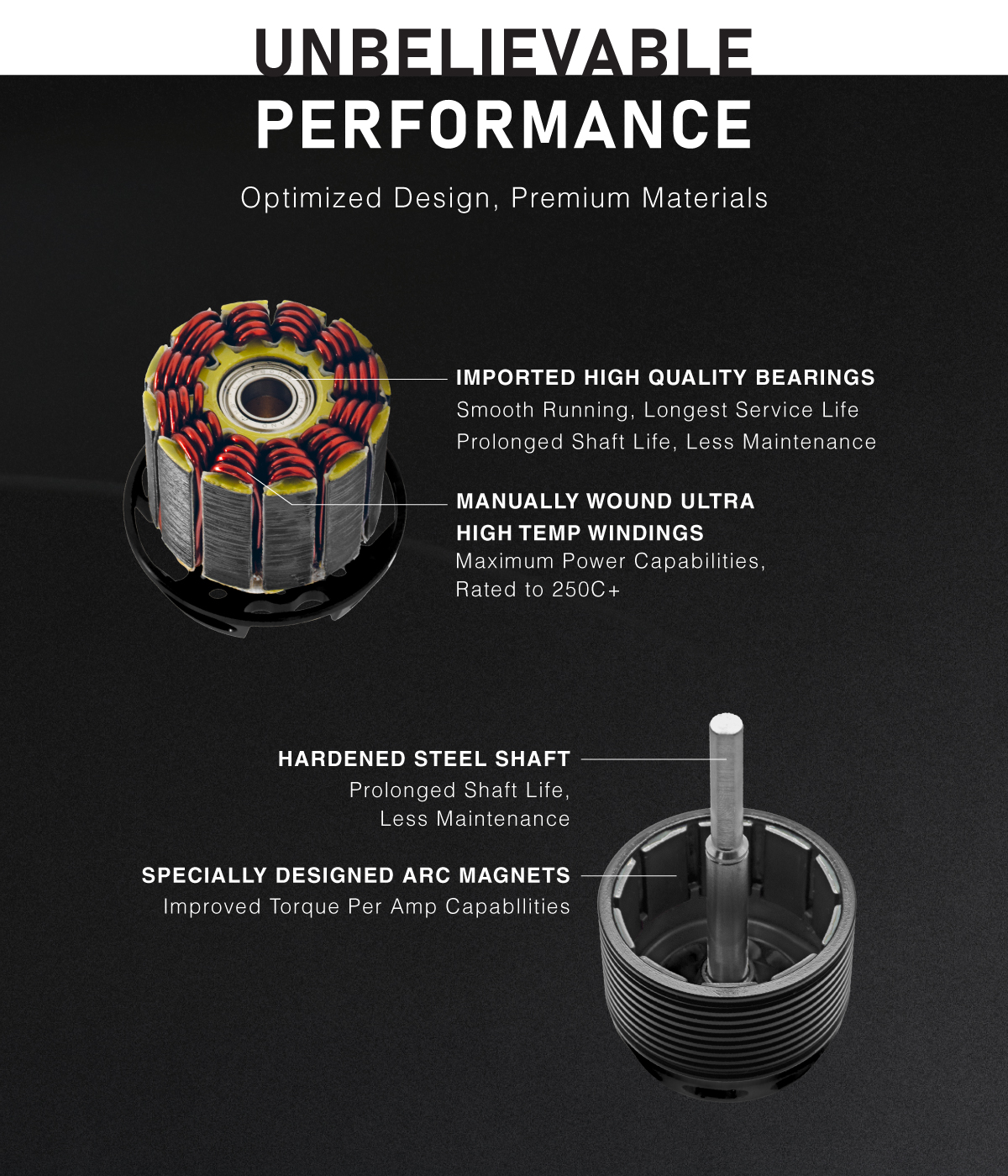

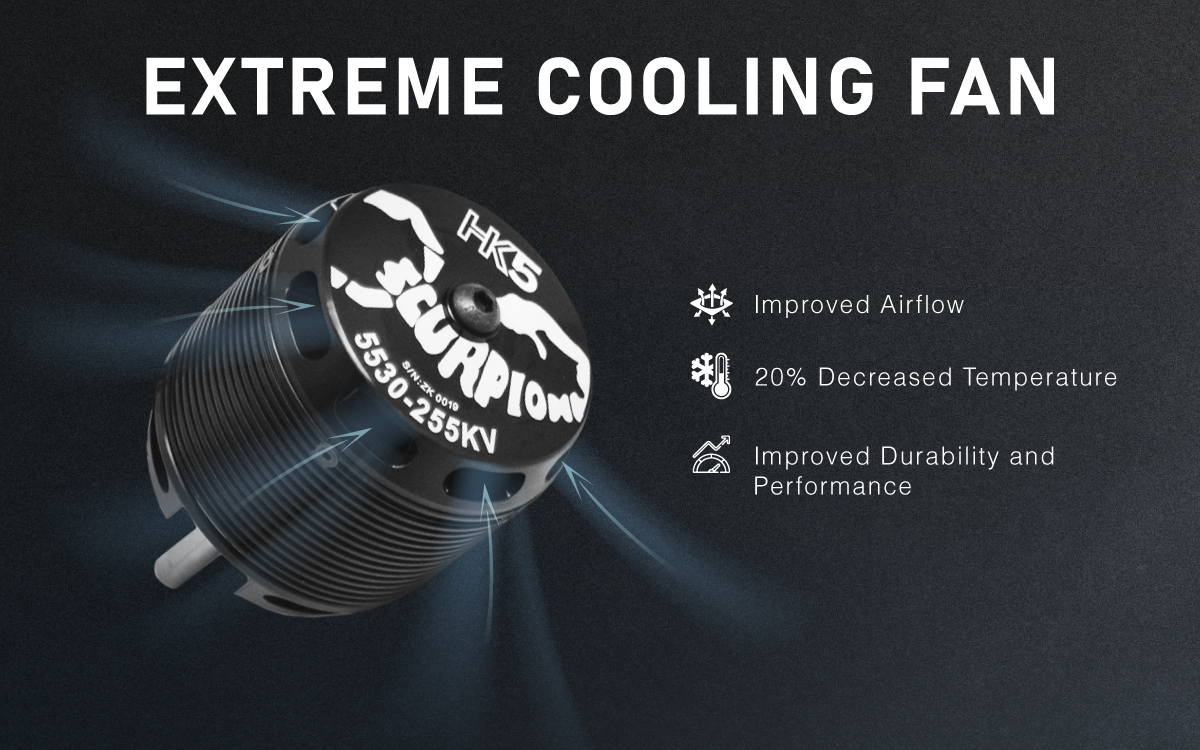

The HK5 Series lives up to and exceeds our standards of the most Powerful and Efficient motors, with market leading Torque per Amp capabilities. In addition, on the HK5 series we focused specifically on motor cooling and motor temperature. With an all new Internal Fan design, combined with our proven external centrifugal fan, we have nearly doubled the amount of airflow passing through the motor. The result is much improved cooling, and cooler operating temperatures.
The HK5-5530-255kv is designed primarily for 12s -14s operation with 850mm - 950mm+ UAV helicopter application.

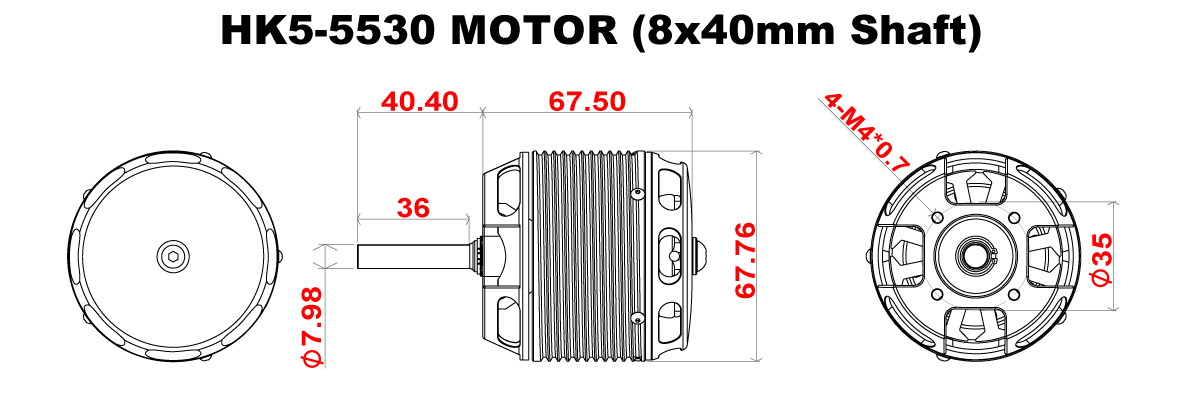

Full Dimension
Specifications
| Motor Kv | 255KV RPM/Volt |
| Weight | 847.0g Grams (29.87oz) |
| Motor Body Dimensions | 67.9mm x 68.0m (2.67" x 2.68 ") |

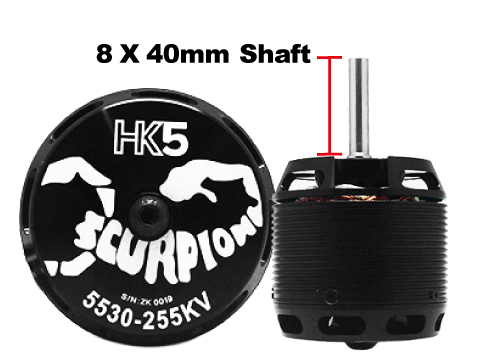

| External Shaft Dimensions | 7.98mm x 40mm (0.314" x 1.57") |
| Continuous Current | 100 Amps* |
| Continuous Power | 5200 Watts |
| Peak Current | 180A (2 seconds) |
| Peak Power | 9500w Watts (2 seconds) |
| Max Lipo Cell* | 12s - 14s |
| Stator Diameter | 55 mm ( 2.16 in) |
| Stator Thickness | 30 mm ( 1.18 in) |
| No. of Stator Arms | 12 |
| No. of Stator Poles | 10 |
| Motor Wind | 7+8T D |
| Motor Wire | 2 x 1.08mm |
| *This rating is a more industrial Rating - if given hobby rating (like other HK5 Motors) it would be around 150A continuous Current. | |
Weight including packaging
866g
