Scorpion HK-4530 Brushless Motor 12N 10P Motor Kit
In response to the many requests that we have had for kit versions of the Scorpion Brushless motors, we are now making them available for people that enjoy the satisfaction of building their own. Each kit contains all the required parts to make the motor, all you need to provide is the Wire and the Labor.
To complete the kit, the builder needs to:
Wind and terminate the stator
Glue the stator in place on the bearing holder
Install the bearings into the bearing holder
Install the completed rotor assembly onto the bearing assembly and secure the shaft with the washer and C-Clip.
If you have ever wanted to try your hand at making your own motor, but were afraid it was too complex a project, the Scorpion Brushless Motor Kit provides a simple way for you to do that, with all the hard work already done.

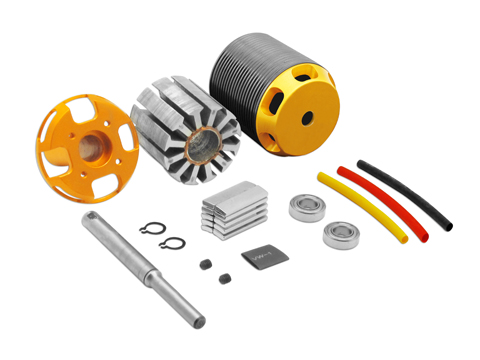

*The magnets are pre-assembled and balanced inside the rotor
Gold Electro-coated Rear Housing/Bearing Tube assembly
Two high-speed shielded ball bearings
Rotor assembly with gold electro-coated front housing, black electro-coated flux ring, and pre-installed 5.98 mm motor shaft with retaining collar
Cross style aluminum backplate mount with mounting screws
Complete set of curved NdFeB motor magnets
Heat shrink tubing to cover motor leads and provide strain relief
Weight including packaging
