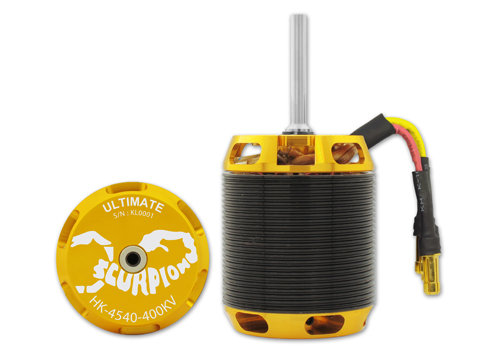

Scorpion HK-4540-400KV motor (8mm) ULTIMATE

[hk-4540_400_8]
$ 599.99
In stock

Product Description

The Scorpion HK-4540-400Kv ULIMATE is designed for using on 700 class helicopters running on 12~18-cell Li-Po power. This motor represents the most technologically advanced power source ever offered for a 700 class electric helicopter and also produces 23% more torque than the Scorpion popular HKIII-4035 series motors and exceed 90% efficiency.

This Scorpion HK-4540-400Kv ULIMATE is designed for using on 700 class helicopters running on 12~18-cell Li-Po power. and each of the new Scorpion HK-4540-400Kv ULIMATE motor is wound with a single strand of 1.5mm wire for the highest possible efficiency. This motor is capable of running continuously at an input power of 10000 watts at 150 amps, and can handle peak inputs of 15000 watts and 200 amps for 3 seconds.

Scorpion Competition Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-Coated to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are custom manufactured to be able to withstand high temperatures, making a motor that is virtually impossible to burn up in normal use.

Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. However, due to the high RPM of these motors, and the fact that we cannot control the installation and setup, the bearings are not covered by the 2-Year warranty, nor is any subsequent damage caused to the motor by a bearing failure. Bearings are a normal wear item, and as such, need to be maintained and changed periodically. For maximum life, make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding, and put a small drop of oil on each bearing every 5-6 flights. It is the responsibility of the pilot to ensure that the bearings are maintained properly.

For the best overall combination of quality, performance, and value, use Scorpion Motors in your helicopter!

*This motor is using 30mm bolt spacing on the mounting with M4 Screw holes

HK Patent No. : HK1141674

China Patent No. : ZL2010 2 0298704.9

Taiwan Patent No. : M399539

U.S Patent No. : Pending

All Others Worldwide Patent : Pending

Specifications

Stator Diameter 45 mm (1.77 in)
Stator Thickness 40 mm (1.57 in)
No. of Stator Arms 12
No. of Stator Poles 10
Motor Wind 5T+5T in double Wye (YY)
Motor Wire 1-Strand 1.5 mm
Motor Kv 400KV RPM/Volt
No-Load Current (Io/10V) 1.65 Amps
Motor Resistance (RM) 0.013Ohms
Max Continuous Current 150 Amps
Max Continuous Power 10000 Watts
Weight 719 Grams (25.35 oz)
Outside Diameter 56.7 mm (2.23 in)
Shaft Diameter 7.98 mm (0.37 in)
Body Length 71.9 mm (2.83 in)
Overall Shaft Length 127.3 mm (5.01 in)
Max Lipo Cell 12S-18S
Max Peak Current 200 A (3 seconds)
Max Peak Power 15000 Watts (3 seconds)
Motor Timing 5deg to 15 deg
Drive Frequency 8kHz
Torque per Amp 2.59 Ncm/A

Weight including packaging

1049g

Full Dimension

View Scorpion HK-4540-400KV motor (8mm) ULTIMATE Full Dimension
