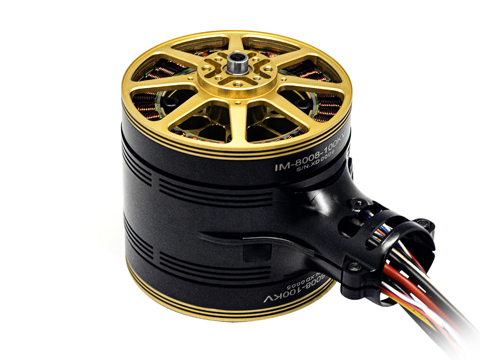

Scorpion IM-8008 Coaxial Pod
[IM_8008_CXPod]
$ 1249.99
In stock
Optional accessories:
Scorpion CAN/TERM. Adaptor (4pcs)
- Overview
- Technical specifications
Scorpion IM-Series Coaxial motor pods are optimally designed with premium materials to provide efficient, reliable, and powerful electric motors for your multirotor UAV.

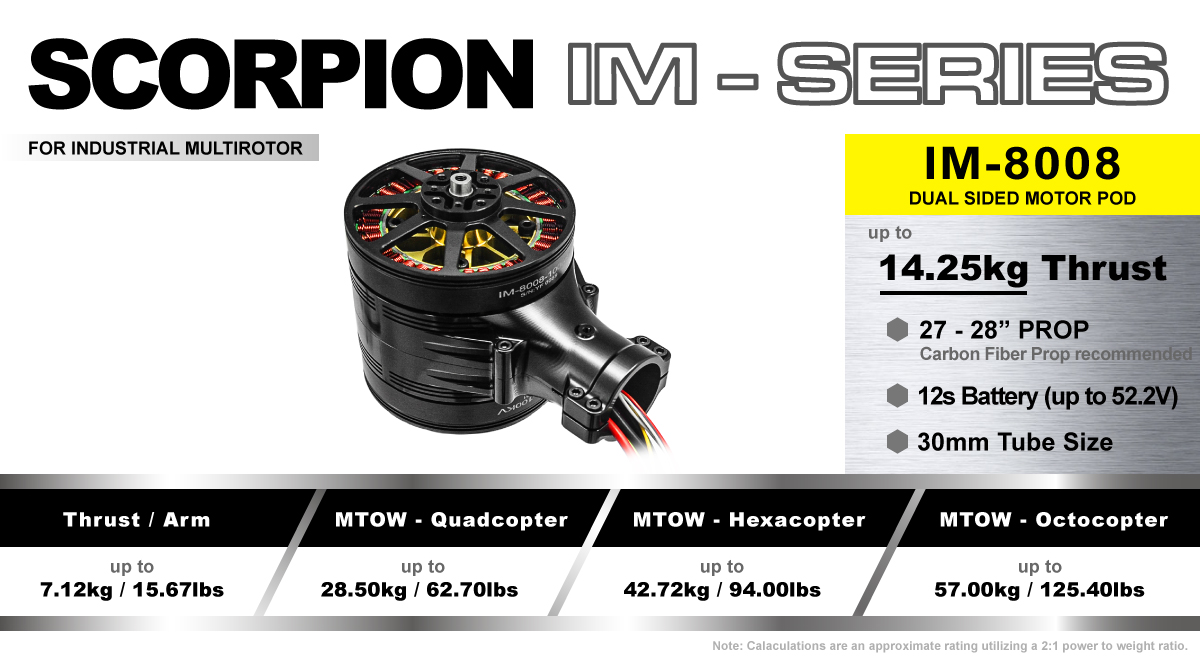

The Scorpion IM-8008 series pod is designed for 27" - 28" sized propellers and provides a plug and play power system combo with peak thrust up to 13.3kg and a rated spec of 3.5kg - 6.65kg of thrust per arm.
Utilizing high quality bearings and ultra hardened Steel Shaft, these motor stand the test of time with long life span between services.

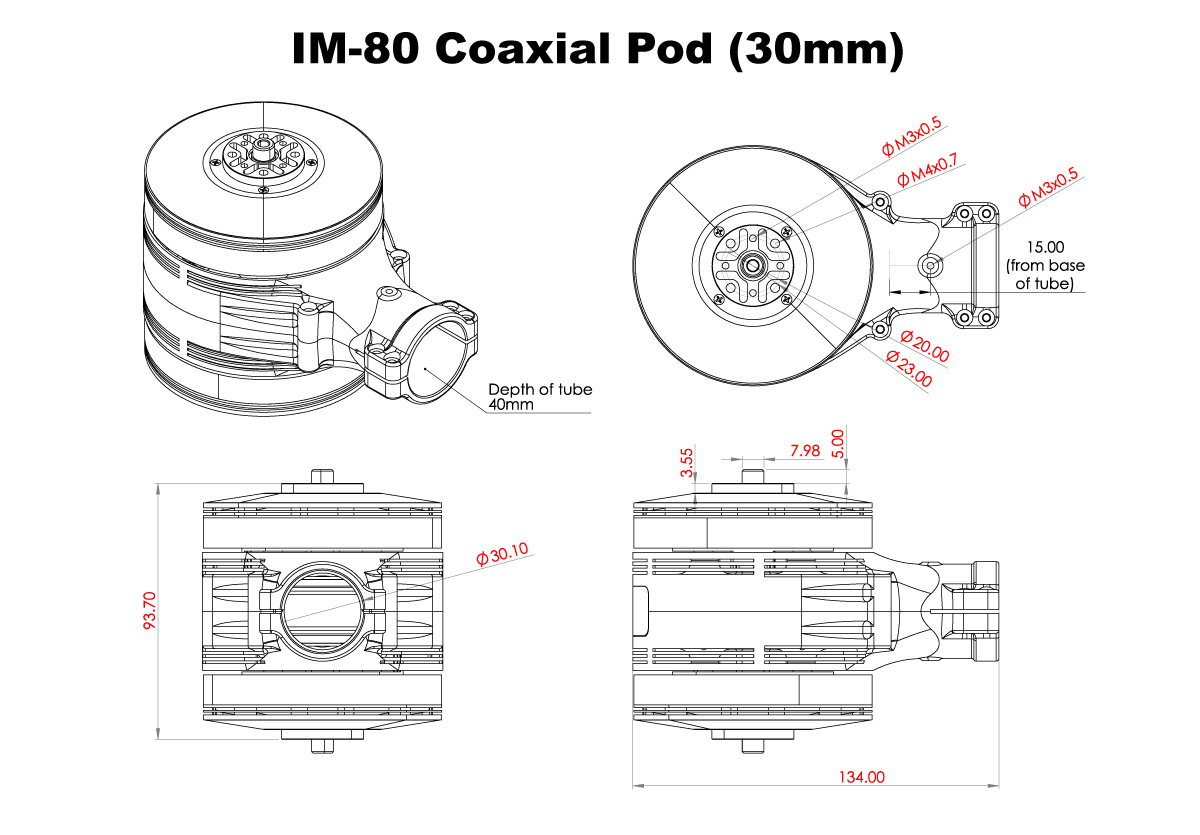

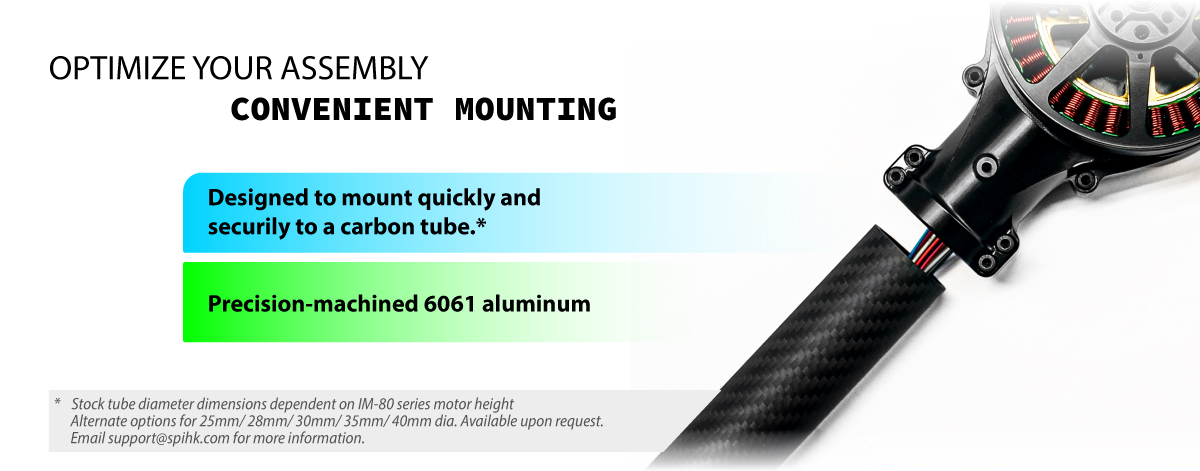

Stock Tube Size : 30mm
.jpg)
Specifications
| Total Power System Weight (Motors + ESCs + Wires + Pod) | 846.6g (29.86 oz) |
| Maximum Thrust | 14.25kg (31.35lbs) |
| Recommended Thrust Per Arm | 3.75kg - 7.125kg (8.25lbs -15.675lbs) |
| Compatible Tube Size* | 30mm |
| Recommended Voltage | 12s (44.V - 52.2V) |
|
|
| Included Motors | IM-8008-100kv |
| Included ESCs | Legatus 12-60A |
|
|
| *Alternate Tube Size Options in 25mm / 28mm / 35mm/ 40mm available upon request. | |

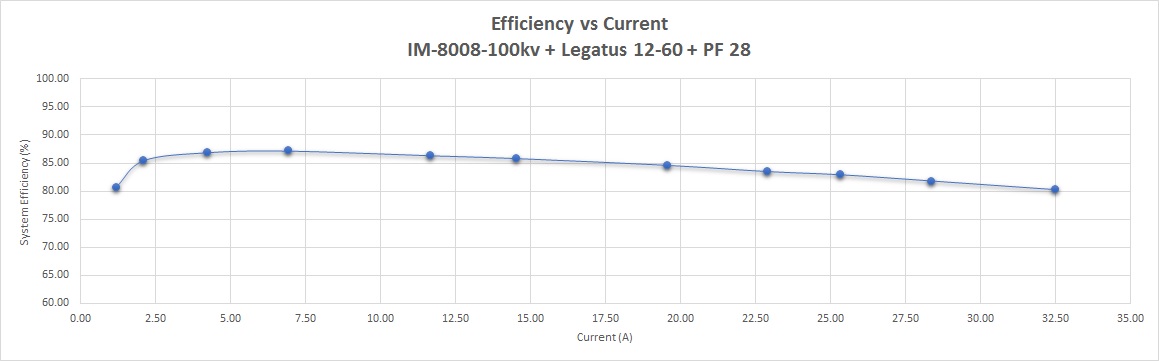

Performance Charts
.jpg)

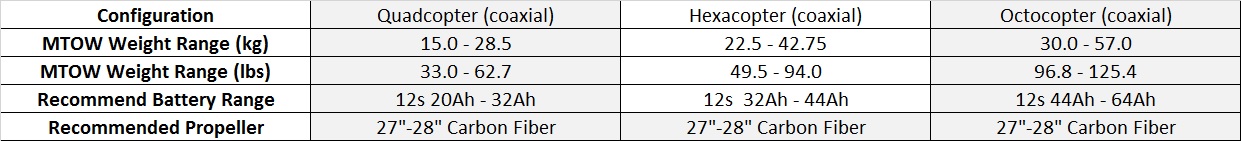

Use Case Applications
Testing reports
Scorpion Power System Performance Report IM-8008-100kv
Included in the Box
2 x Scorpion IM-8008-100kv Motor
2 x Legatus 12-60A ESC
1 x Scorpion Coaxial Motor Pod (30mm tube)
Weight including packaging
800g
