Scorpion IM-8016 Standard Pod
[IM_8016_Pod]
$ 829.99
In stock
- Overview
- Technical specifications
- Downloads
Scorpion IM-Series motor pods are optimally designed with premium materials to provide efficient, reliable, and powerful electric motors for your multirotor UAV.

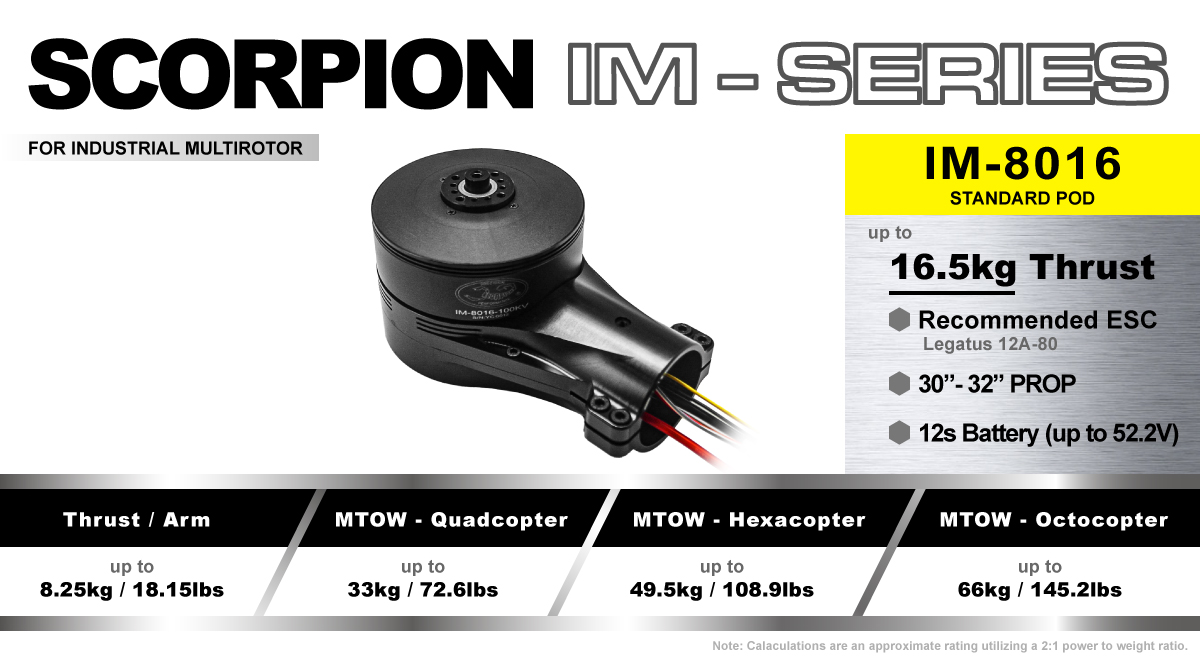

The Scorpion IM-8016 series is designed for 30 - 32" sized propellers with peak thrust up to 16.5kg and a rated spec of 4.0kg - 8.25kg of thrust per arm.
Utilizing high quality bearings and ultra hardened Steel Shaft, these motor stand the test of time with long life span between services.
Stock Tube Size : 40mm

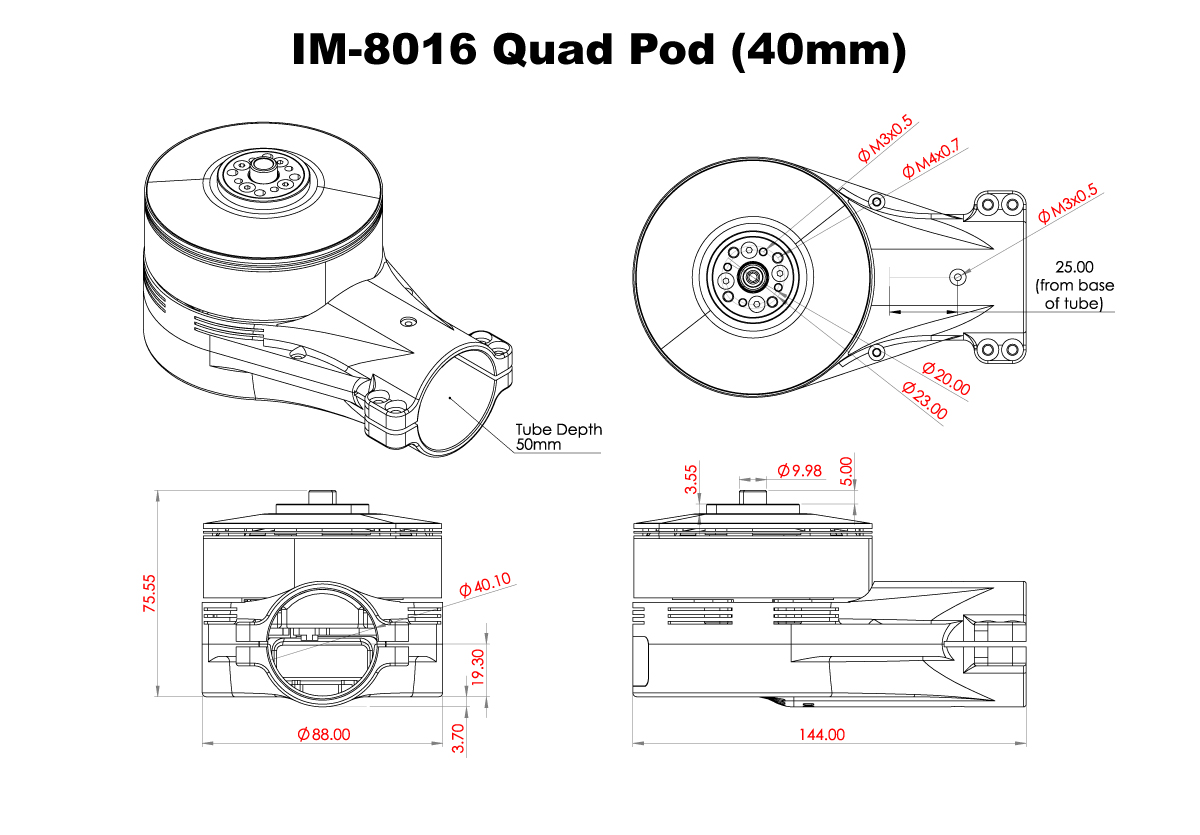

Full Dimension
Specifications
| Total Power System Weight (Motor + ESC + Wire + Pod) | 840g (29.6oz) |
| Maximum Thrust | 16.5kg (36.3lbs) |
| Recommended Thrust Per Arm | 4kg - 8kg (8.8lbs -17.6lbs) |
| Compatible Tube Size* | 40mm |
| Recommended Voltage | 12s (44.V - 52.2V) |
| Continuous Current | 42A |
| Continuous Power | 1865w |
| Peak Current | 80A |
| Peak Power | 3552w |
| Included Motor | IM-8016-100kv |
| Included ESC | Legatus 12-60A |
|
|
| **Alternate Tube Size Options in 30 / 35mm/ 40mm available upon request. | |
Performance Charts
Use Case Applications
Included in the Box
1 x Scorpion IM-8016-100kv Motor
1 x Legatus 12-80A ESC
1 x Scorpion Standard Motor Pod (40mm tube)
Weight including packaging
1g
