Scorpion IM-6008-140kv
[IM_6008_140]
$ 269.99
In stock
- Overview
- Technical specifications
Scorpion IM-Series motors are optimally designed with premium materials to provide efficient, reliable, and powerful electric motors for your multirotor UAV.
The Scorpion IM-6008 series is designed for 21" - 22" sized propellers with peak thrust up to 6.9kg and a rated spec of 1.8kg - 3.25kg of thrust per arm.
Utilizing high quality bearings and ultra hardened Steel Shaft, these motor stand the test of time with long life span between services.
Available in 2 x kv options : 140kv for 12s / 300kv for 6s.
Full Dimension
Specifications
| Motor KV | 140 |
| Weight (incl. 20cm wire) | 200g |
| Continuous Current | 19A |
| Continuous Power | 844w |
| Peak Current | 36A |
| Peak Power | 1600w |
|
|
| Recommended Prop | 21" - 22" |
| Maximum Thrust | 6.9kg (15.18lbs) |
| Recommended Thrust Per Arm | 1.8kg - 3.25kg (4.0lbs -7.15lbs) |
| Recommended Voltage | 12s (44.V - 52.2V) |
|
|
| Bearings | Dual, Imported NMB R-1980KK 8x19x6 |
| Shaft Diameter | 8mm |
| Stator Diameter | 60.0mm |
| Stator Height | 8.0mm |
| Stator Specifications | 0.2mm, Imported |
| Configuration | 24N28P |

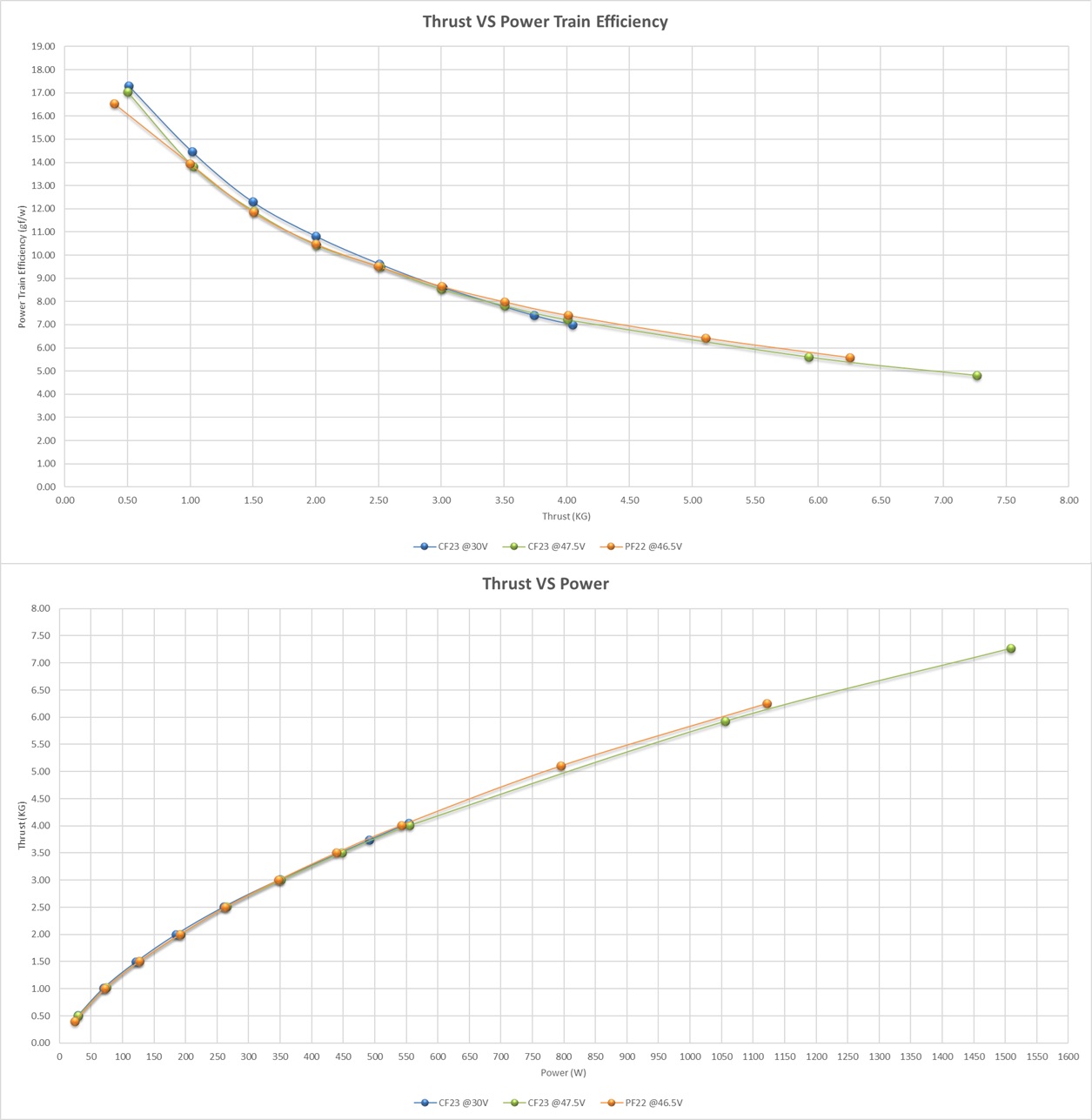

Performance Charts

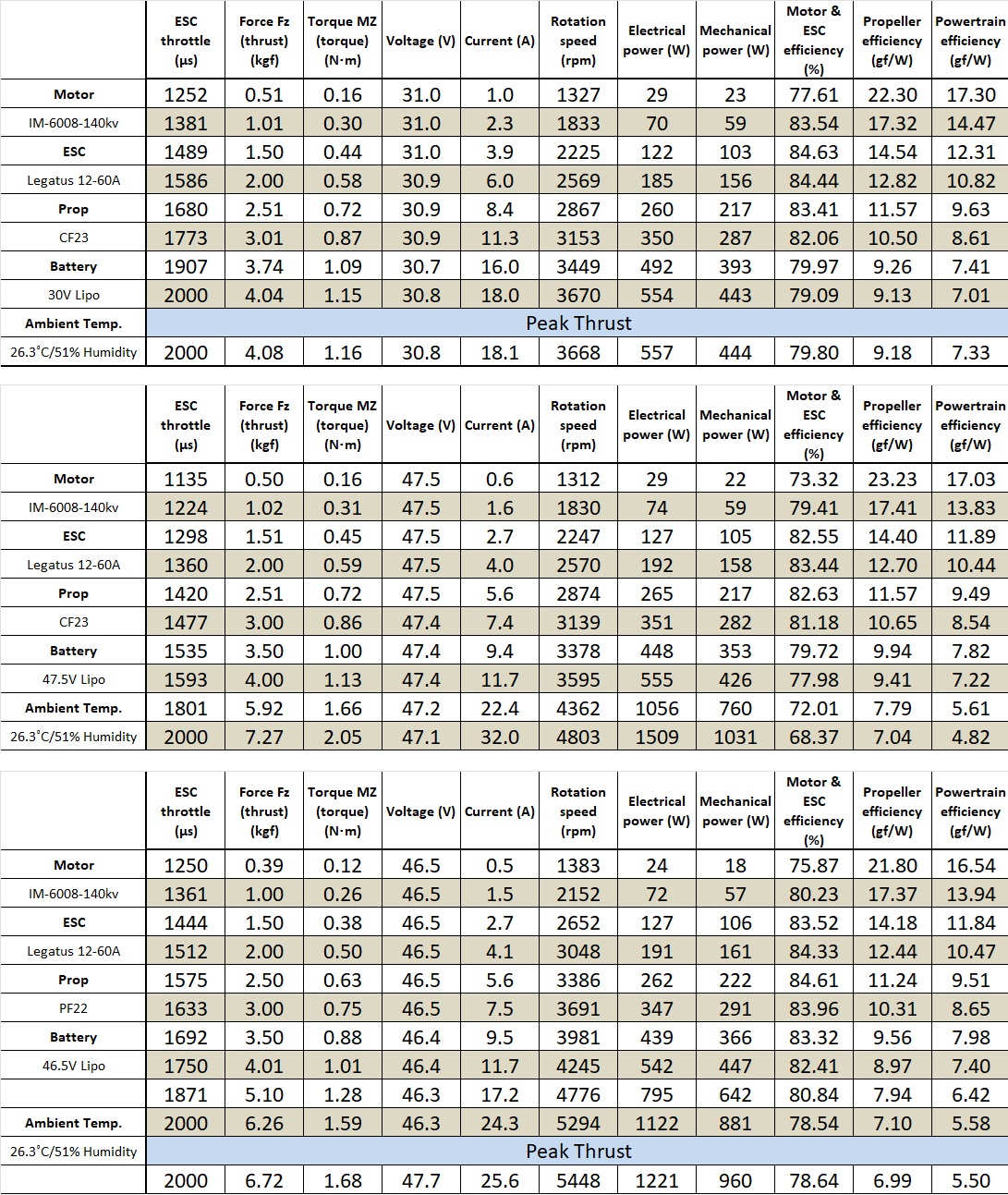

Testing reports
IM-6008 - Thrust Stand Data (PDF)
IM-6008 - Thrust Stand Data (.xlsx)
Weight including packaging
250g
