Scorpion IM-8012-115kv
[IM_8012_115]
$ 384.99
In stock
- Overview
- Technical specifications
Scorpion IM-Series motors are optimally designed with premium materials to provide efficient, reliable, and powerful electric motors for your multirotor UAV.
The Scorpion IM-8012 series is designed for 26" - 28" sized propellers with peak thrust up to 14.15kg and a rated spec of 3.68kg - 7.0kg of thrust per arm.
Utilizing high quality bearings and ultra hardened Steel Shaft, these motor stand the test of time with long life span between services.

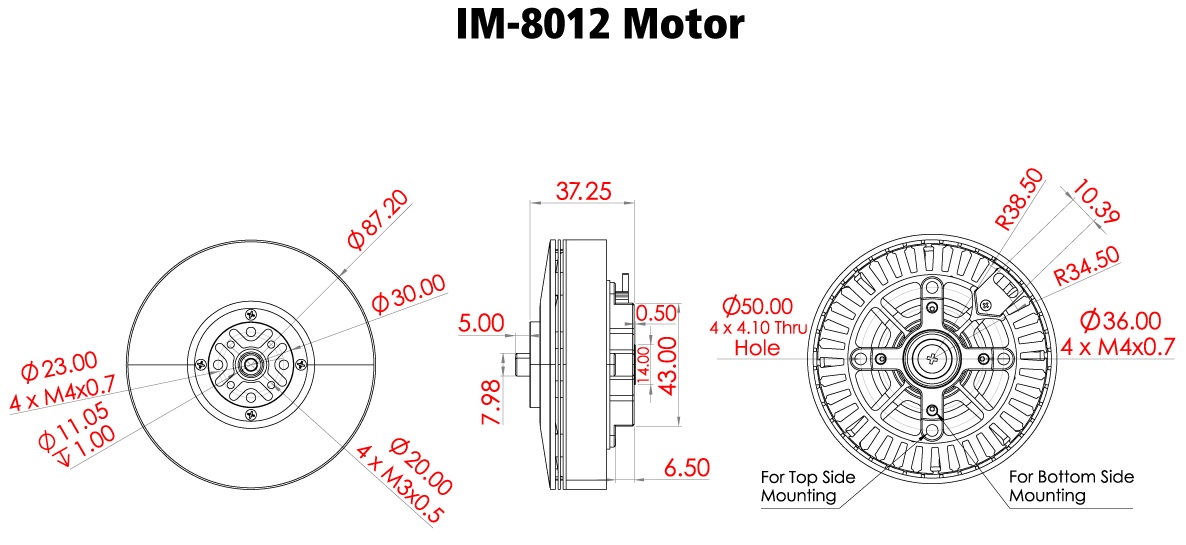

Full Dimension
Specifications
| Motor KV | 115 |
| Weight (incl. 20cm wire) | 377g |
| Continuous Current | 36A |
| Continuous Power | 1600w |
| Peak Current | 70A |
| Peak Power | 3108w |
|
|
| Recommended Prop | 27" - 28" |
| Maximum Thrust | 14.15kg (31.13lbs) |
| Recommended Thrust Per Arm | 3.68kg - 7.0kg (8.10lbs -15.40lbs) |
| Recommended Voltage | 12s (44.V - 52.2V) |
|
|
| Bearings | Dual, Imported NMB R-1980KK 8x19x6 |
| Shaft Diameter | 8mm |
| Stator Diameter | 80.0mm |
| Stator Height | 12.0mm |
| Stator Specifications | 0.2mm, Imported |
| Configuration | 36N40P |
Performance Charts
Use Case Applications
Testing reports
IM-8012-115kv - Thrust Data (PDF)
IM-8012-115kv - Thrust Data (.xlsx)

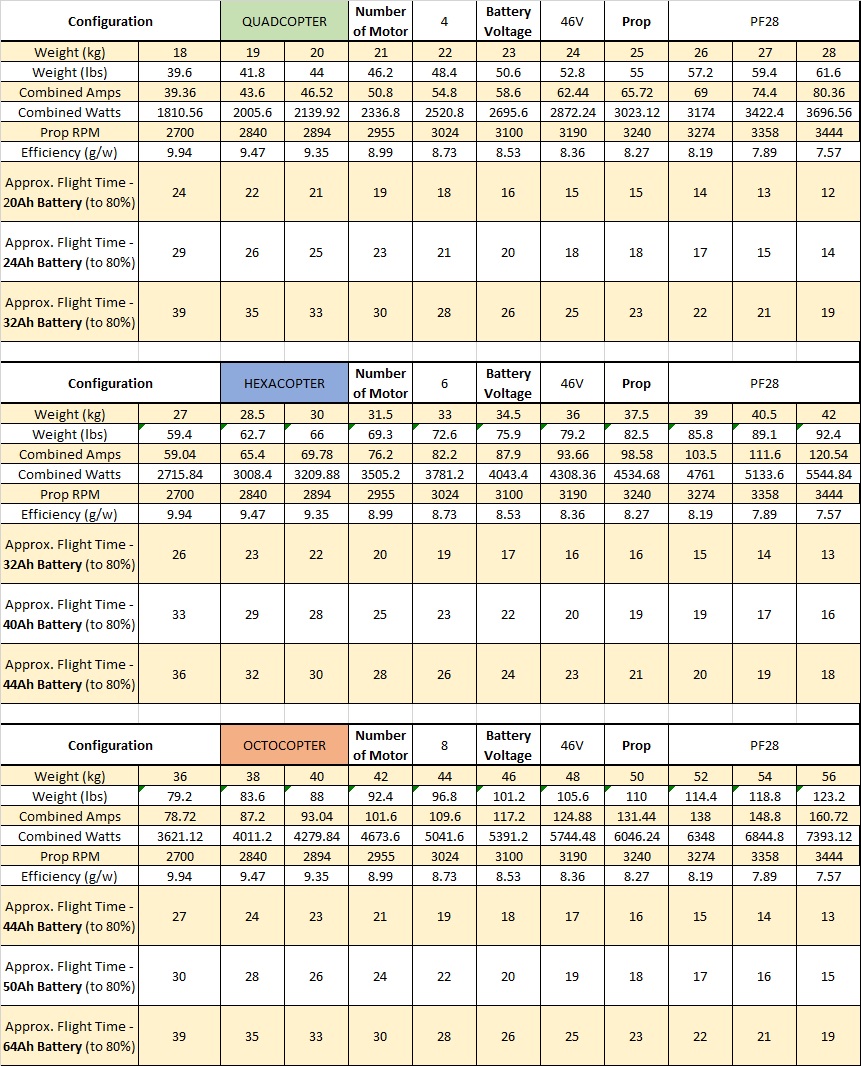

IM-8012 - Flight Time Calculator
Scorpion Power System Performance Report IM-8012-115kv
Weight including packaging
430g
