Scorpion IM-8016-100kv
[IM_8016_100]
$ 429.99
In stock
- Overview
- Technical specifications
- Downloads
Scorpion IM-Series motors are optimally designed with premium materials to provide efficient, reliable, and powerful electric motors for your multirotor UAV.
The Scorpion IM-8016 series is designed for 30" - 32" sized propellers with peak thrust up to 16.5kg and a rated spec of 4.0kg - 8.25kg of thrust per arm.
Utilizing high quality bearings and ultra hardened Steel Shaft, these motor stand the test of time with long life span between services.
Full Dimension
Specifications
| Motor KV | 100 |
| Weight (incl. 20cm wire) | 518.4g |
| Continuous Current | 42A |
| Continuous Power | 1865w |
| Peak Current | 80A |
| Peak Power | 3552w |
|
|
| Recommended Prop | 30 - 32" |
| Maximum Thrust | 16.5kg (31.13lbs) |
| Recommended Thrust Per Arm | 4.0kg - 8.25kg (8.8lbs -18.15lbs) |
| Recommended Voltage | 12s (44.V - 52.2V) |
|
|
| Bearings | Dual, Imported 6902zz 15*28*7 |

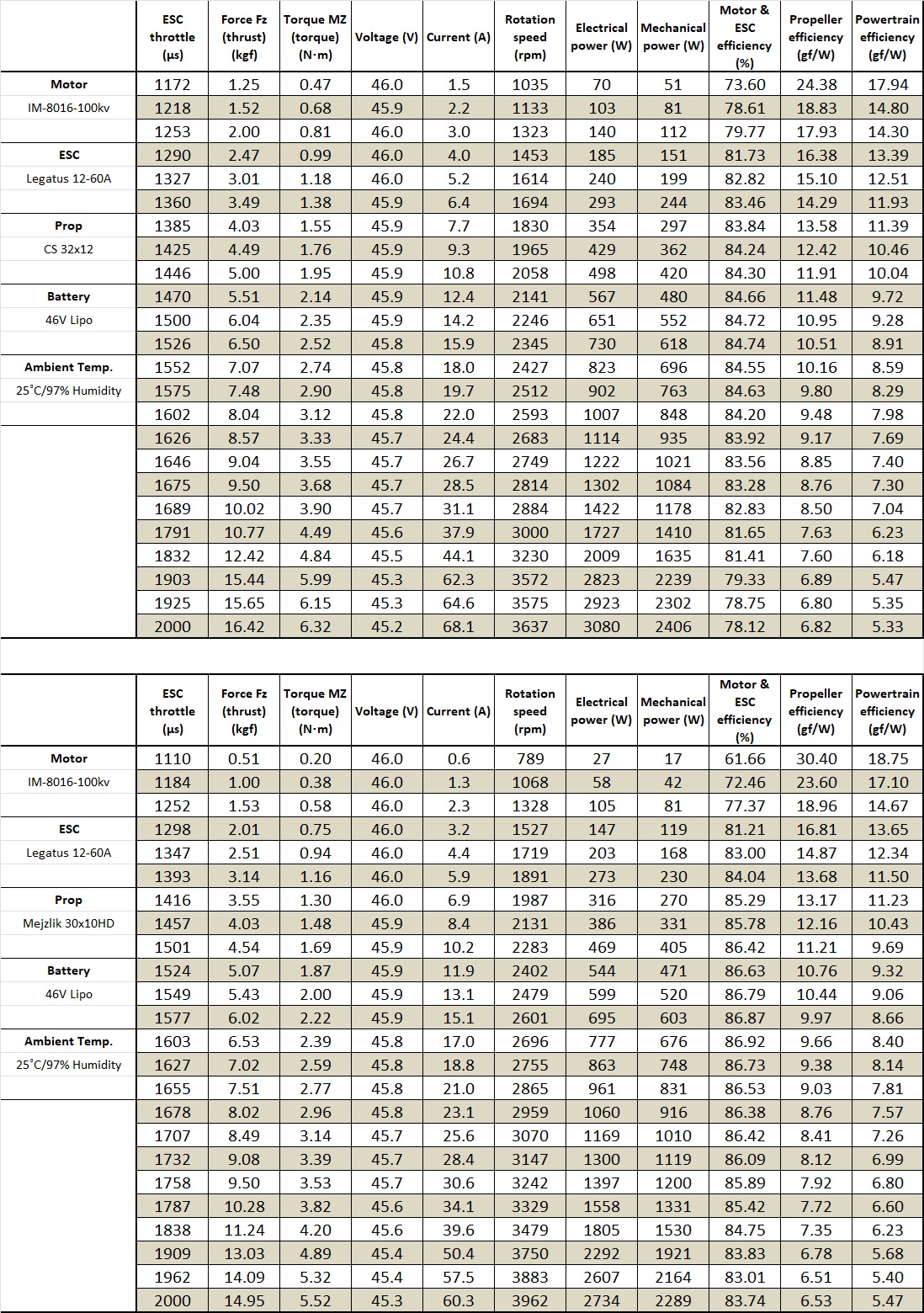

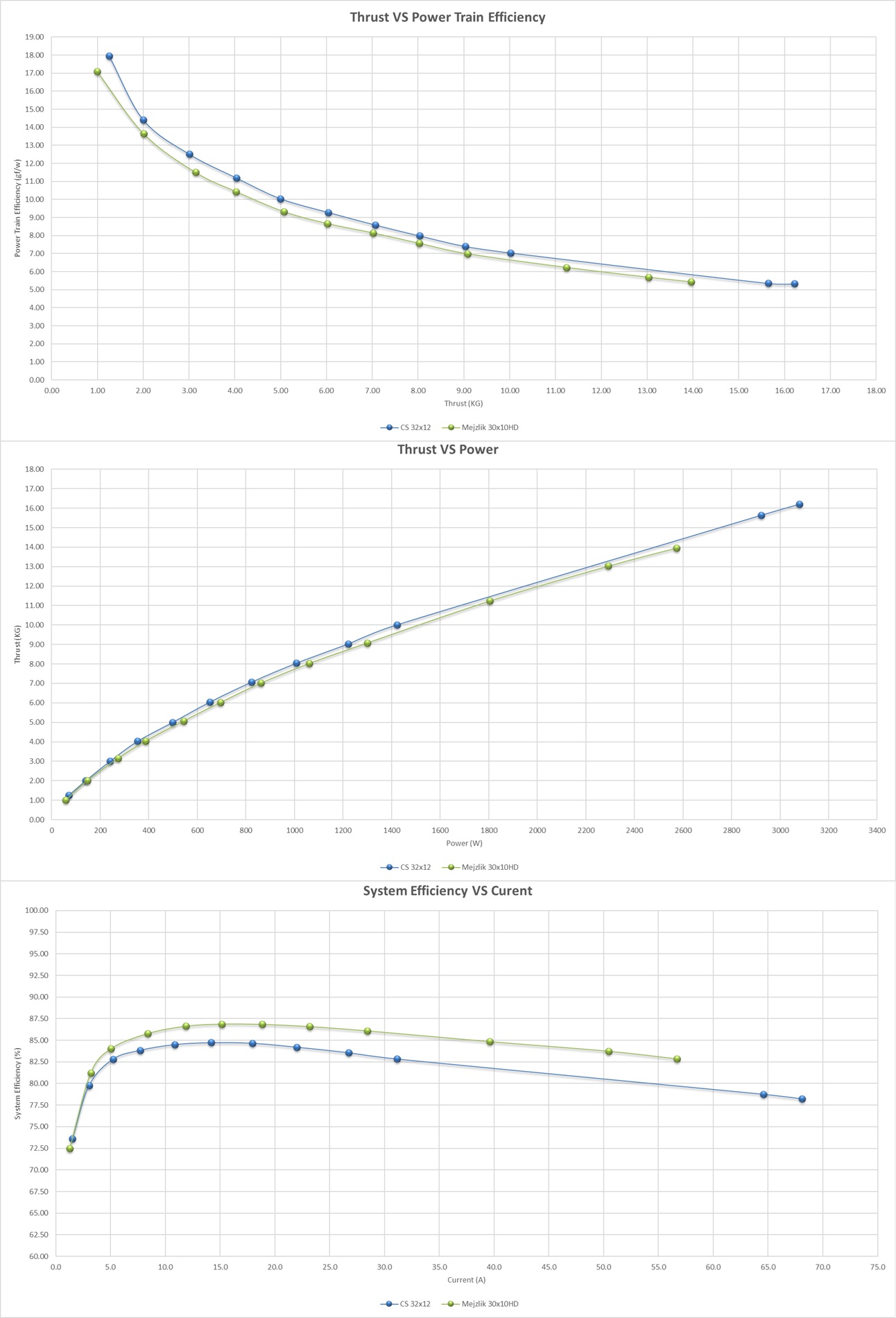

Performance Charts
Use Case Applications
Weight including packaging
700g
