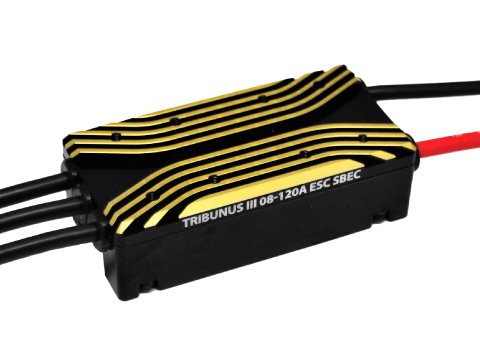

Scorpion Tribunus III 08-120A ESC SBEC
- Overview
- Technical specifications
The Tribunus III 08-120A ESC marks a new era of electronic speed controllers from Scorpion Power Systems. Utilizing all Western Components and manufactured in Taiwan, this next generation ESC delivers exceptional capabilities with significant improvements over our previous models. Combining our proprietary and unique design, with our proprietary motor control algorithm, we provided one of the most reliable, safe, capable, and intelligent ESC's on the market for your hobby aircraft or commercial UAV.
USE CASES
HOBBY - 20cc-35cc gas equivalent airplanes / 550 size - lightweight 600 size / up to 8s usage.
INDUSTRIAL - 1800w (Indefinite) / 3600w (Continuous*) / 4750w (Peak) / up to 35.0V

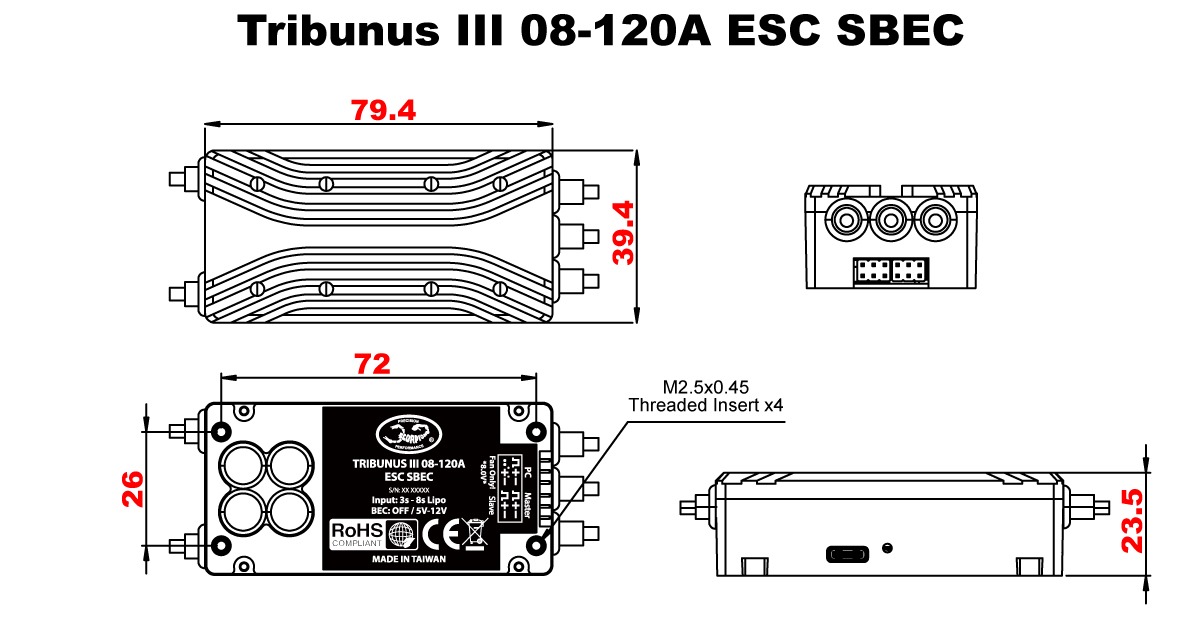

Full Dimension
View Scorpion Tribunus III 08-120A ESC SBEC Full Dimension
Specifications
| Max Continuous Current* | 120 Amps |
| Peak Current | 160 Amps |
| Operating Voltage Range | 11-35.0 Volts |
| BEC Output voltage: | 5.1V to 12.1V adjustable |
| Max Continuous BEC Output | 12 Amps @ 8.1 V |
| Peak BEC Output | 25 Amps/1s @ 8.1 V |
| On Resistance | 0.33mOhms * 2 |
| ESC Body Size | 39.5 x 79.4 x 23.0 mm (1.55 x 3.12 x 0.90 in) |
| Integrated Mount Dimensions | 26.0 x 72.0mm ( 1.02 x 2.83 in) / M2.5 Bolt |
| Weight (without wires) | 113g (3.98oz) |
| Weight (with wires) | 143g ( 5.04oz) |
| Drive frequency | 8kHz - 32kHz |
Included in the Box
1 x Tribunus III ESC
2 x BEC Cables
1 x Mounting Hardware Pack
1 x Drill Guide Sticker
Weight including packaging
253g
