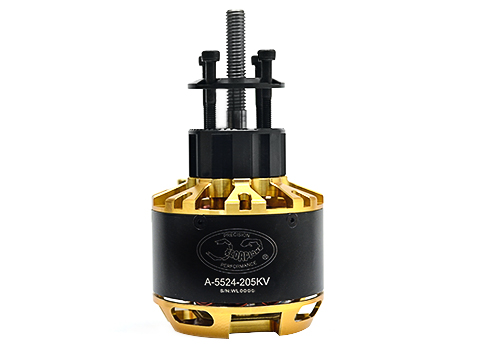

Scorpion A-5524-205kv

[A_5524_205]
$ 399.99
In stock

The Scorpion A - Series line of motors was designed to be the most optimal and premier choice of motor for your freestyle or UAV airplane. We have achieved incredible performance through incredible efficiency. By optimizing the magnets in the rotor, and using the best quality 0.2mm thickness silicon steel stator sheets, and 2 x single strand enamel coated copper wire windings rated above 200C+, the performance and efficiency results are unlike anything we have seen before! Combined with a robust design which has been tested extensively by our world class team pilots for longevity and reliability, we feel this motor checks and exceeds all measurable categories!

Scorpion A-5524-205kv features Scorpion A-5524-205kv features Scorpion A-5524-205kv features Scorpion A-5524-205kv features Scorpion A-5524-205kv features

Full Dimension

Scorpion A-5524-205kv Full Dimension

Specifications

Motor Kv 205 RPM / Volt
Weight (Motor only) 622g (21.94 oz)
Weight (including Prop mount accessories) 655g (23.01 oz)
Motor Body Dimensions 74.0 mm x 65.8mm (2.93" x 2.60")
External Shaft Diameter 8mm
Continuous Current 80A
Continuous Power 3552 Watts
Peak Current* 105A
Peak Power* 4662 Watts
Max Rated Lipo Cell** 12s
Stator Diameter 55.0 mm (2.16 in)
Stator Thickness 24 mm (.95 in)
No. of Stator Arms 12
Magnet Poles 14
Motor Wind 9T/10T Delta
Motor Wire 2-Strand x 0.96mm
No-Load Current (IO/20V) 1.51 Amps
Motor Internal Resistance (phase-phase) 35 mΩ
Motor Inductance (phase-phase) @ 1khz 40µH
*Our ratings are classified as TRUTHFUL. Continuous Current / Power correlates to actual sustainable power levels. Peak Power is for intermittent full throttle usage ranging from 5 - 60 seconds depending on use case and cooling*
**Higher Cell Count possible with smaller prop usage**

Performance Charts

Scorpion A-5524-205kv Data chart Scorpion A-5524-205kv Data chart Scorpion A-5524-205kv Data chart Scorpion A-5524-205kv Data chart Scorpion A-5524-205kv Data chart Scorpion A-5524-205kv Data chart

Use Case Applications

Included in the Box

1 x Scorpion A-5524 BLDC Motor
1 x A-55/65 Cross Mount (stock)
4 x M4 Cross Mount Mounting Bolts
3 x Prop Bore Spacers (8x10x 4/4/10)
3 x Female 6mm Connectors
3 x Heat Shrink
3 x Scorpion Stickers
2 x M8 Nuts

Weight including packaging

1060g
