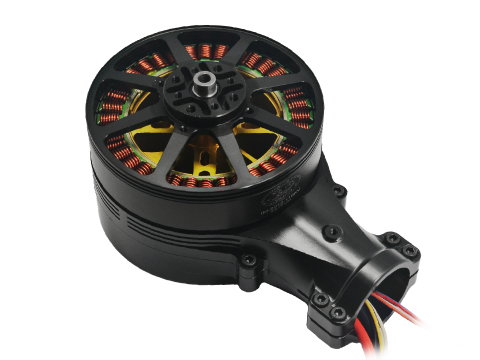

Scorpion IM-8012 Standard Pod
- Overview
- Technical specifications
- Downloads
Scorpion IM-Series motor pods are optimally designed with premium materials to provide efficient, reliable, and powerful electric motors for your multirotor UAV.

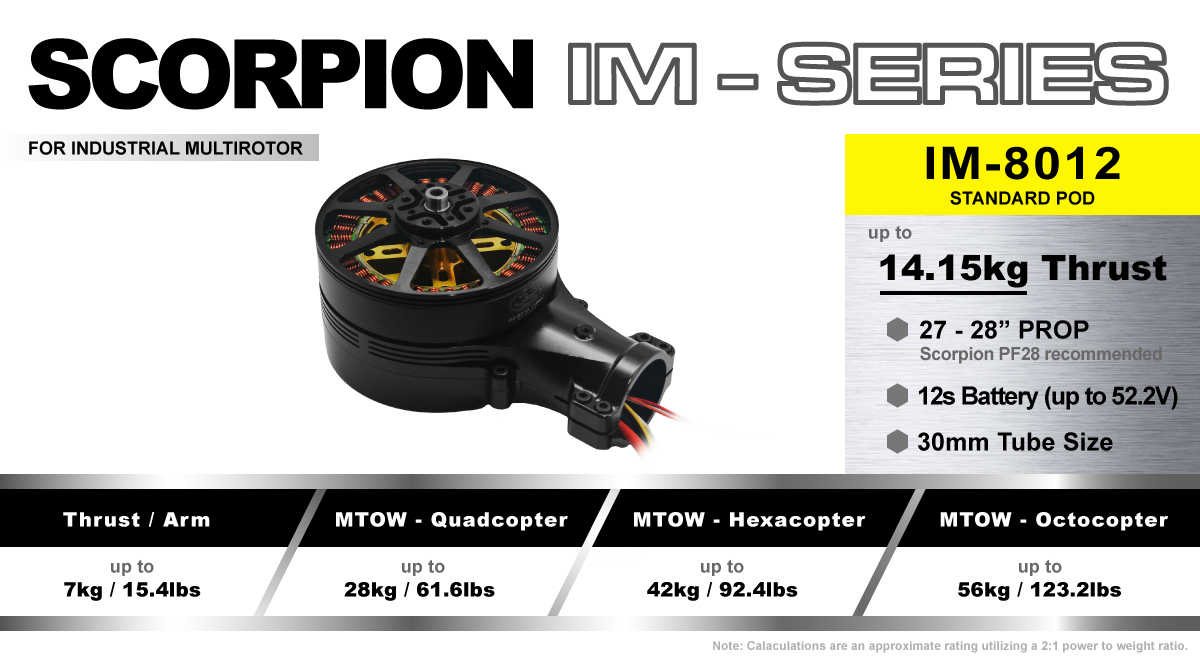

The Scorpion IM-8012 series pod is designed for 26" - 28" sized propellers and provides a plug and play power system combo with peak thrust up to 14.15kg and a rated spec of 3.0kg - 7kg of thrust per arm. With 28" prop for efficient multirotor, or 26" prop for VTOL application. it is suitable for up to 25kg+ quadcopter application.
Utilizing high quality bearings and ultra hardened Steel Shaft, these motor stand the test of time with long life span between services.
Stock Tube Size : 30mm

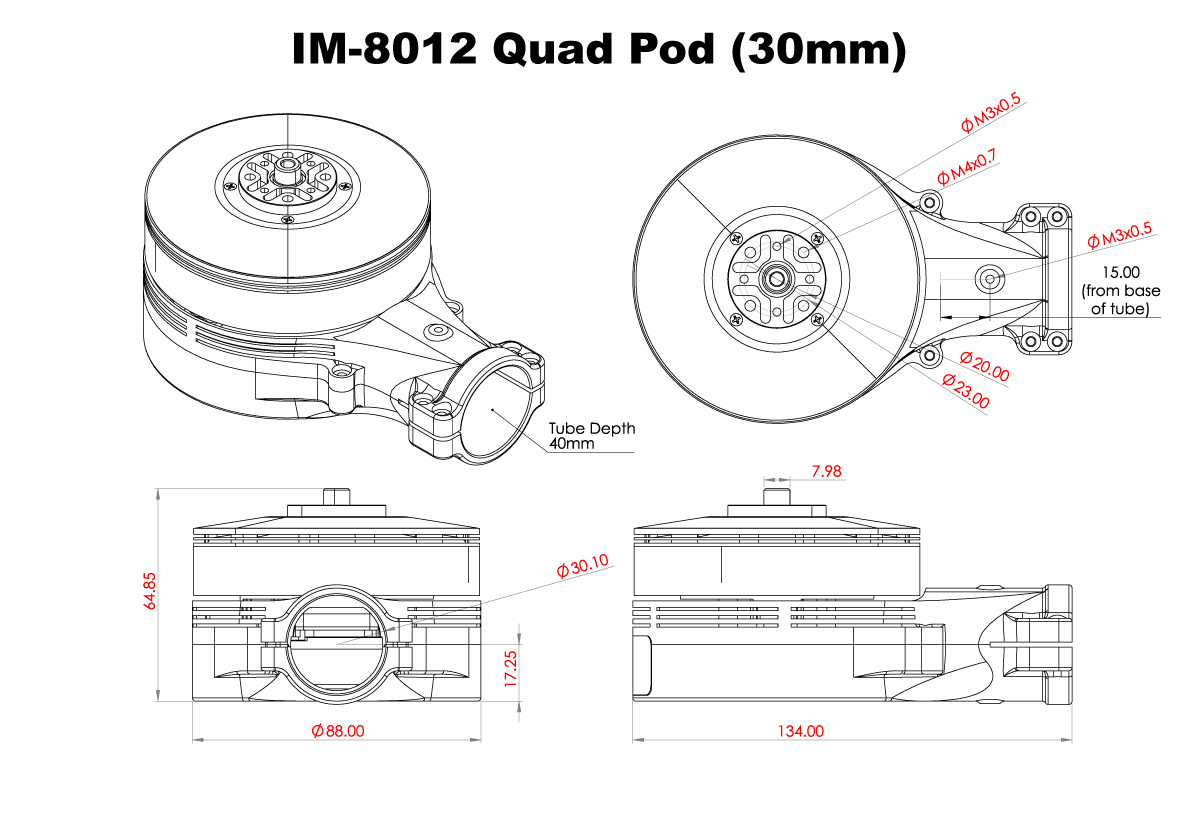

Full Dimension
Specifications
| Total Power System Weight (Motor + ESC + Wire + Pod) | 550g (19.40 oz) |
| Maximum Thrust | 14.15kg (31.20lbs) |
| Recommended Thrust Per Arm | 3.0kg - 7.0kg (6.61lbs -15.43lbs) |
| Compatible Tube Size* | 30mm |
| Recommended Voltage | 12s (44.V - 52.2V) |
| Continuous Current | 36A |
| Continuous Power | 1600w |
| Peak Current | 70A |
| Peak Power | 3108w |
| Included Motor | IM-8012-115kv |
| Included ESC | Legatus 12-60A |
|
|
|
|
| **Alternate Tube Size Options in 25mm / 28mm / 35mm/ 40mm available upon request. | |
Performance Charts
Included in the Box
1 x Scorpion IM-8012-115kv Motor
1 x Legatus 12-60A ESC
1 x Scorpion Standard Motor Pod (30mm tube)
Weight including packaging
1g
