Scorpion IM-8008-C Standard Pod + PF28 Propeller
[IM_8008C_Pod_PF28]
![](/files/i4,361_image.jpg)
![](/files/extra_img/1883-4363-s.jpg)
![](/files/extra_img/1883-4364-s.jpg)
![](/files/extra_img/1883-4365-s.jpg)
![](/files/i4,362_popup_image.jpg)
$ 754.99
In stock
Optional accessories:
Scorpion Silicone Prop Strap (4pcs) / Scorpion CAN/TERM. Adaptor (4pcs)
- Overview
- Technical specifications
![Scorpion IM-8008-C Standard Pod + PF28 Propeller features](https://www.scorpionsystem.com/files/IM-80%20Series/Promo%20Reel/Website-Format-for-IM8008-C-motors.jpg)
![Scorpion IM-8008-C Standard Pod + PF28 Propeller features](https://www.scorpionsystem.com/files/IM-80%20Series/Promo%20Reel/A-01.jpg)
![Scorpion IM-8008-C Standard Pod + PF28 Propeller features](https://www.scorpionsystem.com/files/IM-80%20Series/Promo%20Reel/A-02.jpg)
![Scorpion IM-8008-C Standard Pod + PF28 Propeller features](https://www.scorpionsystem.com/files/IM-80%20Series/Promo%20Reel/A-03.jpg)
![Scorpion IM-8008-C Standard Pod + PF28 Propeller features](https://www.scorpionsystem.com/files/IM-80%20Series/Promo%20Reel/A-04.jpg)
![Scorpion IM-8008-C Standard Pod + PF28 Propeller features](https://www.scorpionsystem.com/files/IM-80%20Series/Promo%20Reel/A-05.jpg)
![Scorpion IM-8008-C Standard Pod + PF28 Propeller features](https://www.scorpionsystem.com/files/IM-80%20Series/Promo%20Reel/A-06.jpg)
![Scorpion IM-8008-C Standard Pod + PF28 Propeller features](https://www.scorpionsystem.com/files/IM-80%20Series/Promo%20Reel/A-07.jpg)
![Scorpion IM-8008-C Standard Pod + PF28 Propeller features](https://www.scorpionsystem.com/files/IM-80%20Series/Promo%20Reel/A-08.jpg)

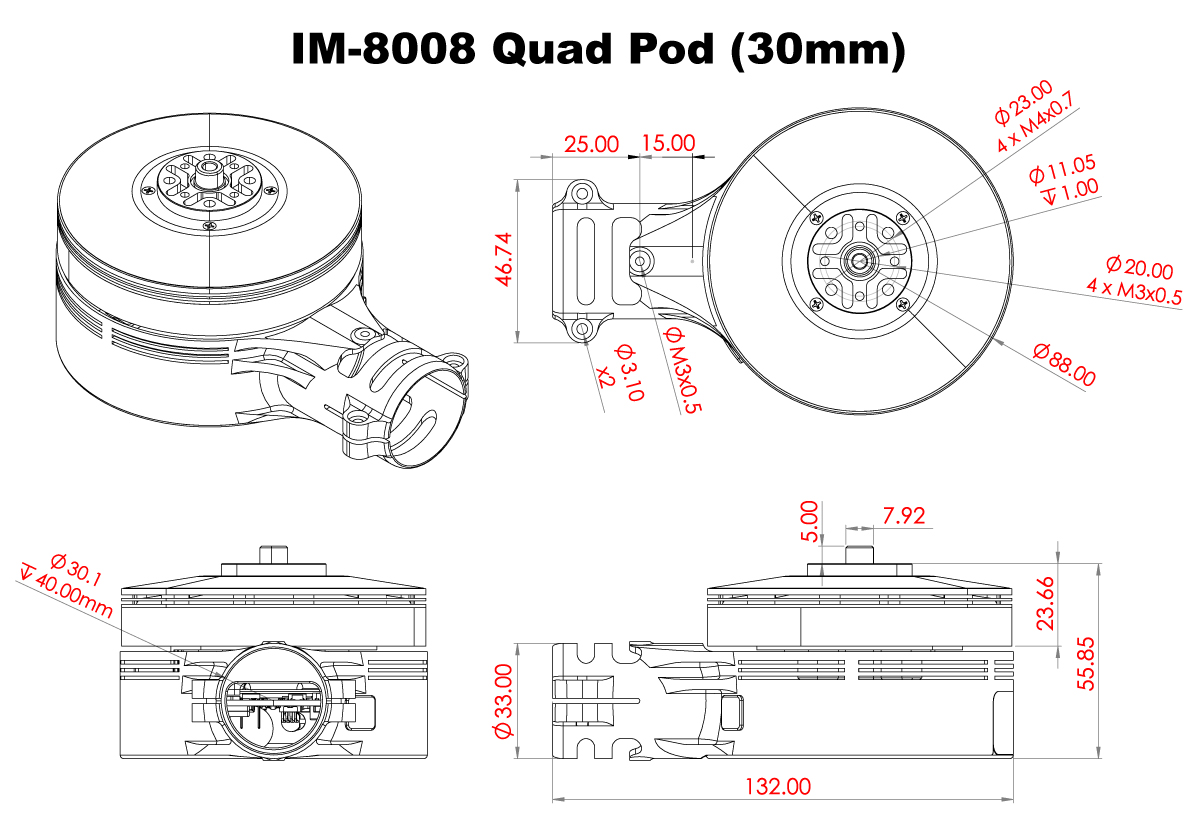

Full Dimension
Specifications
Total Power System Weight (Motor + ESC + Wire + Pod + Prop) | 615g (21.69 oz) |
Maximum Thrust | 9.5kg (20.9lbs) |
Recommended Thrust Per Arm | 2.5kg - 4.75kg (5.5lbs -10.45lbs) |
Compatible Tube Size* | 30mm |
Recommended Voltage | 12s (44.V - 52.2V) |
Continuous Current | 24A |
Continuous Power | 1065w |
Peak Current | 45A |
Peak Power | 1554 |
Included Motor | IM-8008-100kv |
Included ESC | Legatus 12-60A |
Included Propeller | Scorpion PF28 |
|
|
*Alternate Tube Size Options in 25mm / 28mm / 35mm/ 40mm available upon request. |

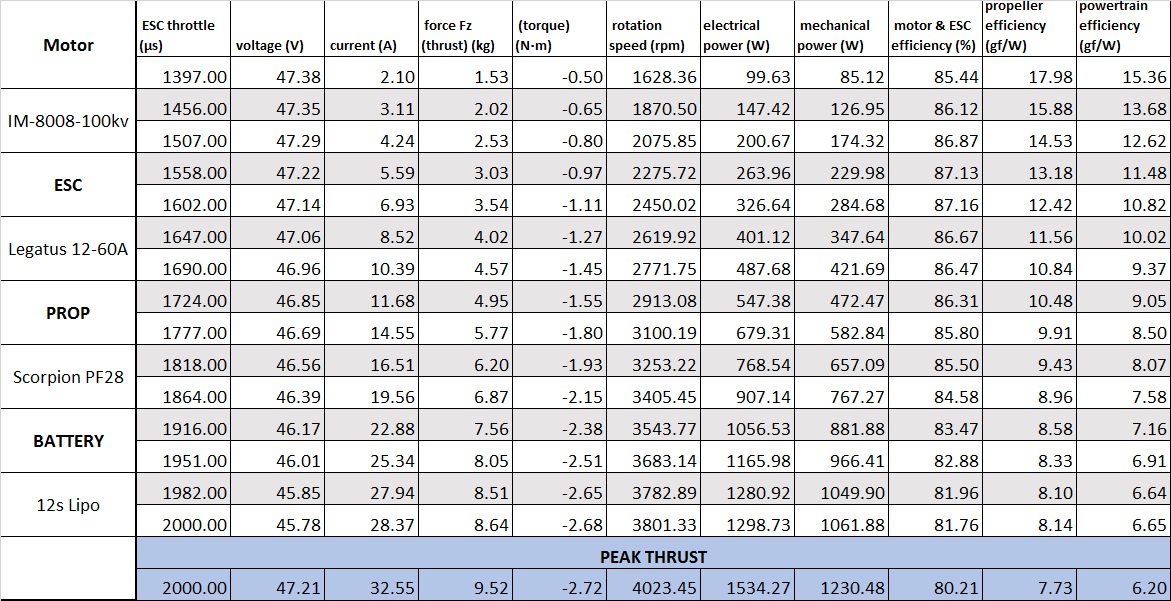

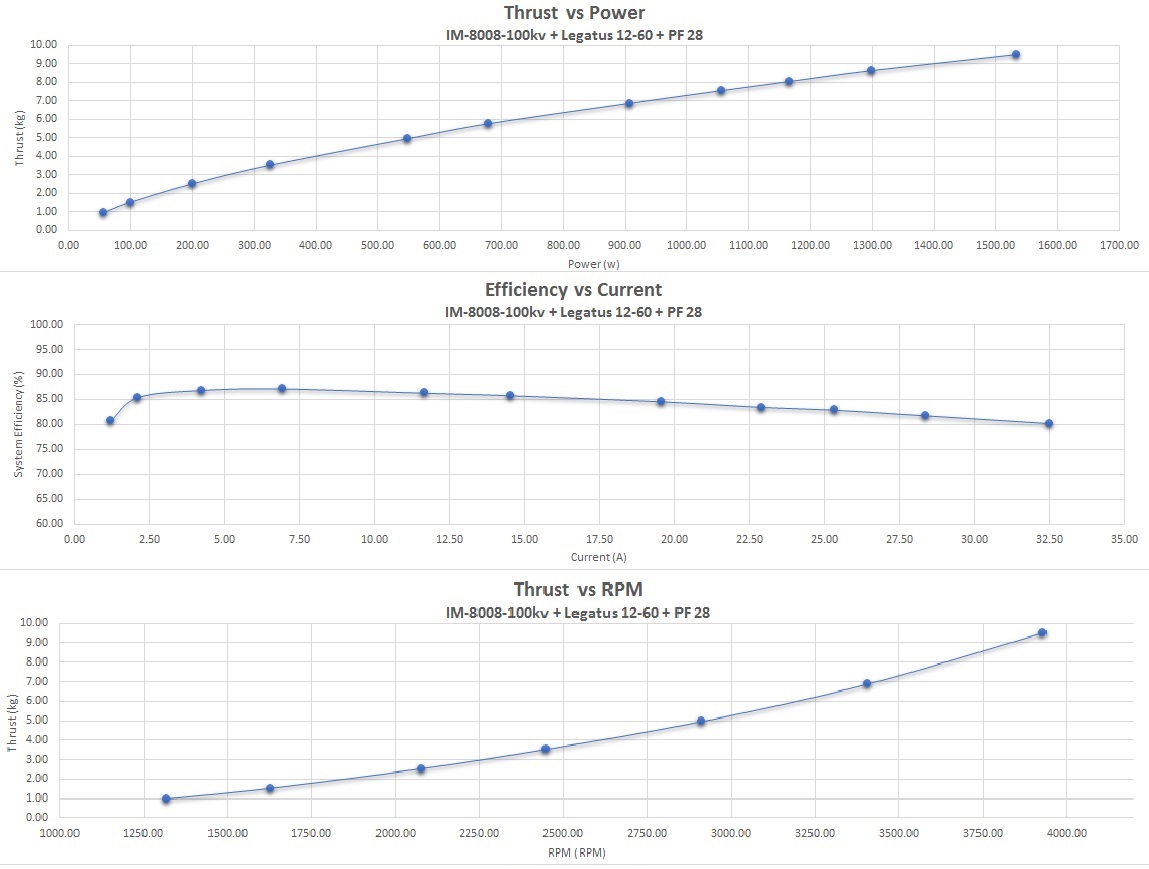

Performance Charts
![Scorpion IM-8008-C Standard Pod + PF28 Propeller Data chart](https://www.scorpionsystem.com/files/IM-80%20Series/IM-8008%20Test%20Data/IM-8008-100%20Data%20Combined%20(short).jpg)
![Scorpion IM-8008-C Standard Pod + PF28 Propeller Data chart](https://www.scorpionsystem.com/files/IM-80%20Series/IM-8008%20Test%20Data/IM-8008-100%20Data%20Chart%20(web).jpg)
Use Case Applications
![](https://www.scorpionsystem.com/files/IM-80%20Series/IM-8008%20Test%20Data/IM-8008%20-%20Recommendations.png)
Testing reports
IM-8008 - Flight Time Approximation
Scorpion Power System Performance Report IM-8008-100kv
Included in the Box
1 x Scorpion IM-8008-C-100kv Motor
1 x Legatus 12-60A ESC
1 x Scorpion Standard Motor Pod (30mm tube)
1 x Scorpion PF-28 Prop
Weight including packaging
800g
