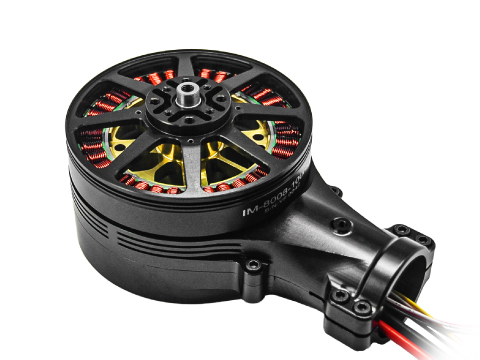

Scorpion IM-8008 Standard Pod + PF28 Propeller
- Overview
- Technical specifications
Scorpion IM-Series motor pods are optimally designed with premium materials to provide efficient, reliable, and powerful electric motors for your multirotor UAV.
The Scorpion IM-8008 series pod is designed for 27" - 28" sized propellers and provides a plug and play power system combo with peak thrust up to 9.5kg and a rated spec of 2.5kg - 4.75kg of thrust per arm.
Utilizing high quality bearings and ultra hardened Steel Shaft, these motor stand the test of time with long life span between services.
Stock Tube Size : 30mm

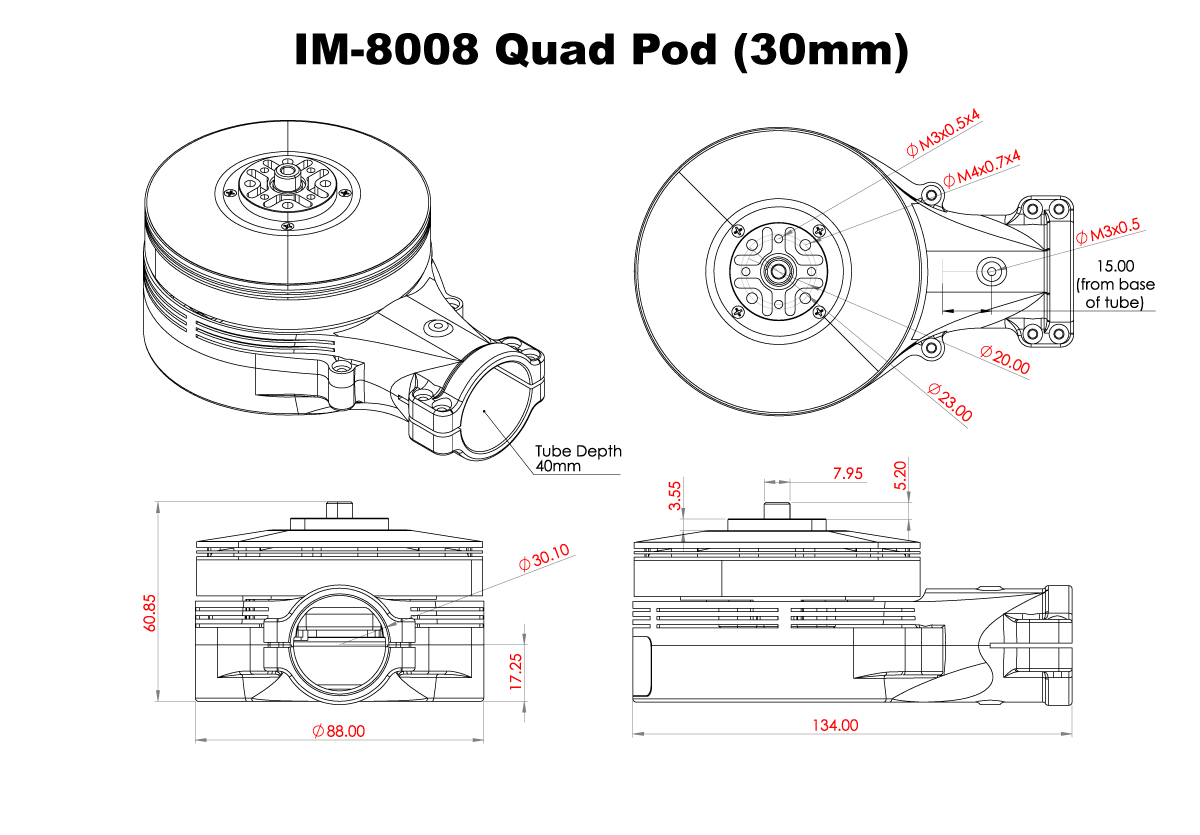

Full Dimension
Specifications
| Total Power System Weight (Motor + ESC + Wire + Pod + Prop) | 608g (21.45 oz) |
| Maximum Thrust | 9.5kg (20.9lbs) |
| Recommended Thrust Per Arm | 2.5kg - 4.75kg (5.5lbs -10.45lbs) |
| Compatible Tube Size* | 30mm |
| Recommended Voltage | 12s (44.V - 52.2V) |
| Continuous Current | 24A |
| Continuous Power | 1065w |
| Peak Current | 45A |
| Peak Power | 2000w |
| Included Motor | IM-8008-100kv |
| Included ESC | Legatus 12-60A |
| Included Propeller | Scorpion PF28 |
|
|
| *Alternate Tube Size Options in 25mm / 28mm / 35mm/ 40mm available upon request. | |
Performance Charts
.jpg)
.jpg)
Use Case Applications
Testing reports
IM-8008 - Flight Time Approximation
Scorpion Power System Performance Report IM-8008-100kv
Included in the Box
1 x Scorpion IM-8008-100kv Motor
1 x Legatus 12-60A ESC
1 x Scorpion Standard Motor Pod (30mm tube)
1 x Scorpion PF-28 Prop
Weight including packaging
800g
