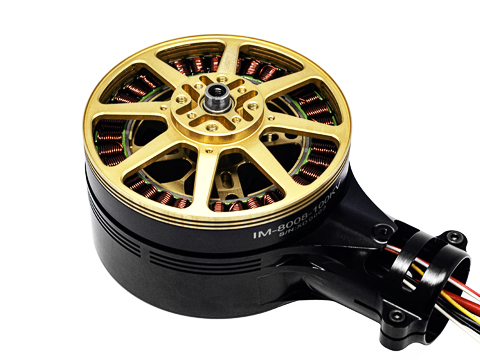

Scorpion IM-8008 Standard Pod
- Overview
- Technical specifications
Scorpion IM-Series motor pods are optimally designed with premium materials to provide efficient, reliable, and powerful electric motors for your multirotor UAV.
The Scorpion IM-8008 series pod is designed for 27" - 28" sized propellers and provides a plug and play power system combo with peak thrust up to 9.5kg and a rated spec of 2.5kg - 4.75kg of thrust per arm.
Utilizing high quality bearings and ultra hardened Steel Shaft, these motor stand the test of time with long life span between services.
Stock Tube Size : 30mm

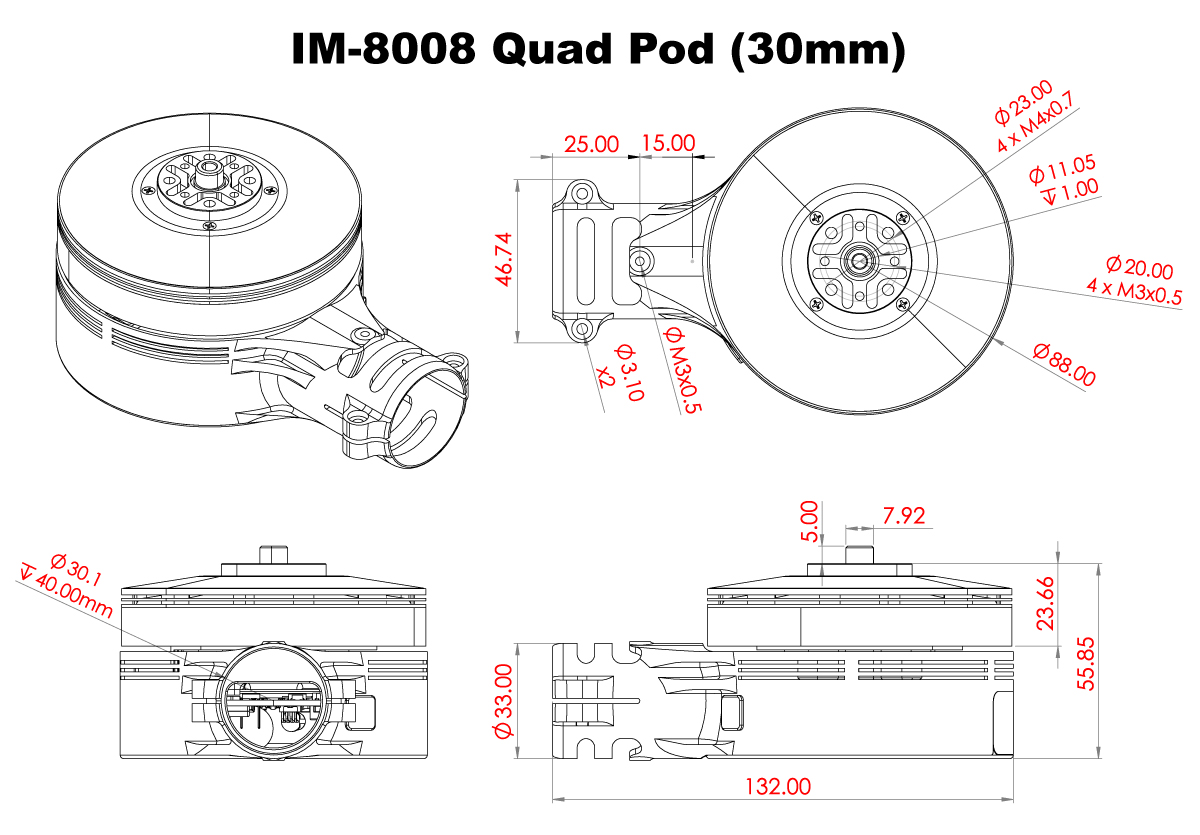

Full Dimension
Specifications
| Total Power System Weight (Motor + ESC + Wire + Pod) | 450g (15.87 oz) |
| Maximum Thrust | 9.5kg (20.9lbs) |
| Recommended Thrust Per Arm | 2.5kg - 4.75kg (5.5lbs -10.45lbs) |
| Compatible Tube Size* | 30mm |
| Recommended Voltage | 12s (44.V - 52.2V) |
| Continuous Current | 24A |
| Continuous Power | 1065w |
| Peak Current | 45A |
| Peak Power | 2000w |
| Included Motor | IM-8008-100kv |
| Included ESC | Legatus 12-60A |
|
|
| *With Mejlik 28x9.4 prop higher thrust of 10.5kg can be attained, but this would be recommended for high altitude operations. Drone weight of up to 4.75kg per arm is not recommended to be exceeded | |
|
|
| **Alternate Tube Size Options in 25mm / 28mm / 35mm/ 40mm available upon request. | |
Performance Charts
.jpg)
Use Case Applications
Testing reports
IM-8008 - Flight Time Approximation
Scorpion Power System Performance Report IM-8008-100kv
Included in the Box
1 x Scorpion IM-8008-100kv Motor
1 x Legatus 12-60A ESC
1 x Scorpion Standard Motor Pod (30mm tube)
1 x Scorpion PF-28 Prop
Weight including packaging
1g
